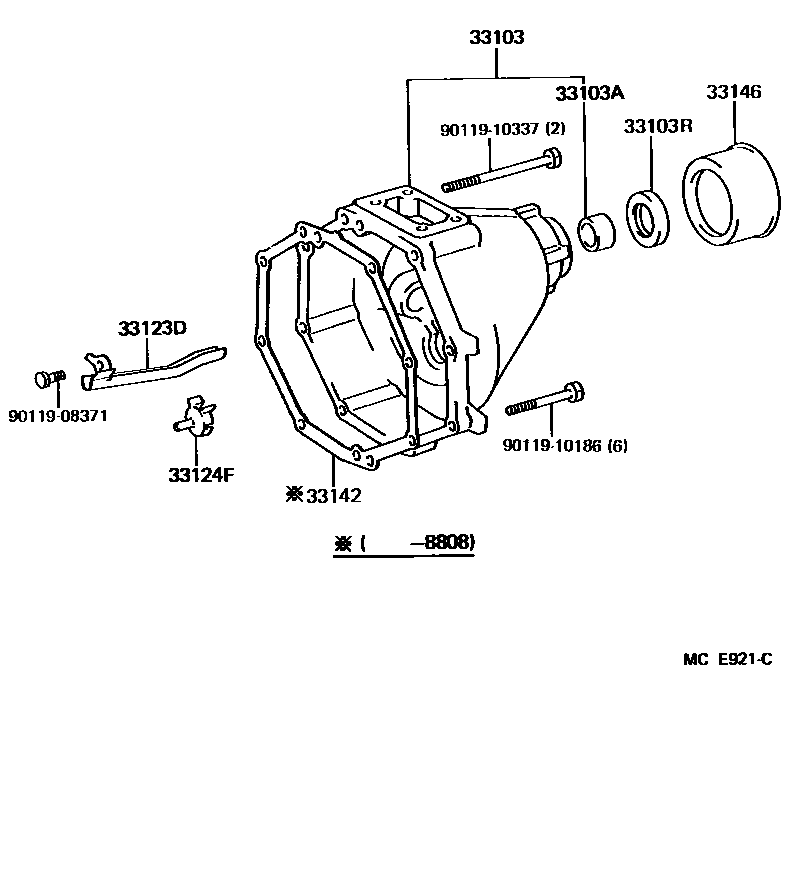

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0W010iYH63199803-200403

main33103-26042iLH51,61,71,YH5#,6#,73..MTM198808-198910

main33103-26900iLH51,61,71,YH5#,6#,73..MTM198708-198808

main33103-28031iYH63200403

main33103-28041iYH53,6#..MTM198910-199803

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLH51,61,71,YH5#,6#,73..MTM198708-198810

main90999-73120iYH63199803

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iYH53,6#..MTM198910

main90311-38040iLH51,61,71,YH5#,6#,73..MTM198708-198808

33123DRECEIVER, CASE COVER OIL(MTM)

main33124-0L010iYH63200410

main33124-28010iLH51,61,71,YH5#,6#,73..MTM198708-198908

main33124-28011iYH53,6#..MTM198908-198910

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-36010iLH51,61..5H; LH71,YH73; YH61..5H; YH63..5H..06S; YH63..V4D..VSP..MTM; YH63..V5D198708-199803

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH51,61,71,YH5#,6#,73..MTM198708-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH51,61,71,YH61..5H198708-198808

main33146-30020iYH53,63199303

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

10 parts on this diagram · 1 diagram in section
