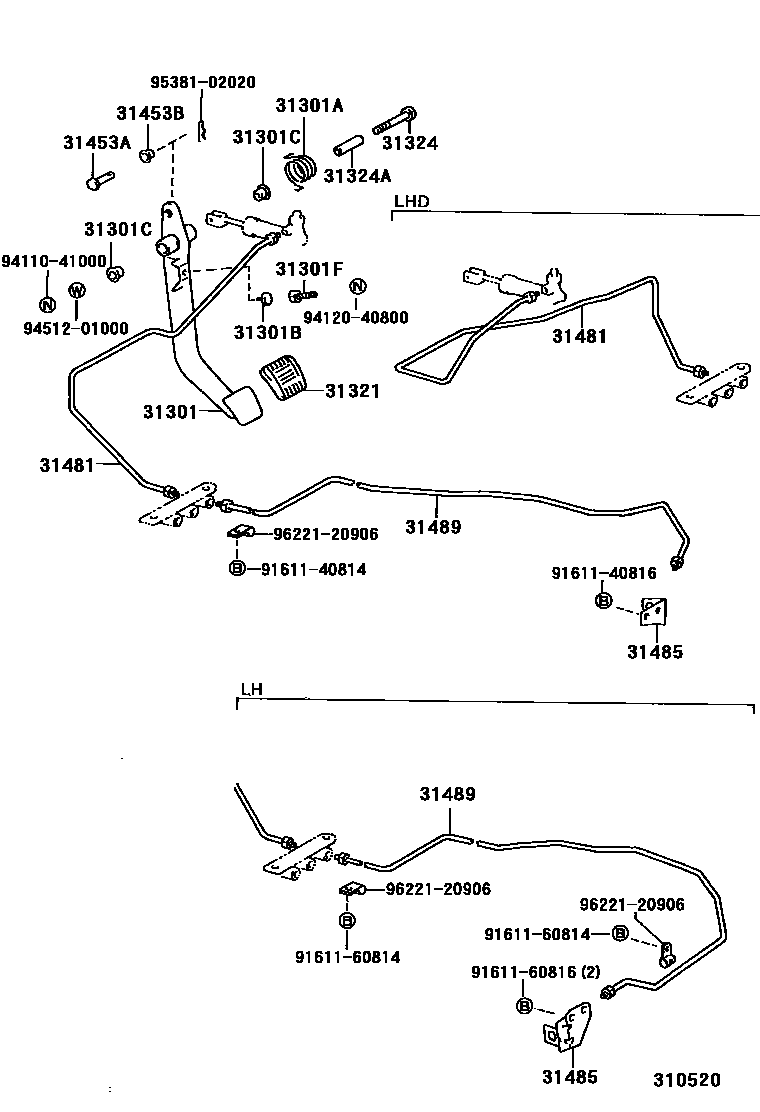

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-26060iLH51,61,71,YH5#,6#,73..RHD..MTM198708-199206

main31301-26070iLH51,61,YH51,61..LHD198708-198908

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32002iYH53,63199206

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iLH51,61,71,YH5#,6#,73..MTM198708-199206

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLH51,61,71,YH5#,6#,73..MTM198708-199206

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iYH53,63199206

31321PAD, CLUTCH PEDAL

main31321-14020iLH51,61,71,YH5#,6#,73..MTM198708-199206

31324SHAFT, CLUTCH PEDAL

main91121-51070iLH51,61,71,YH5#,6#,73..MTM198708-199206

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iLH51,61,71,YH5#,6#,73..MTM198708-199206

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLH51,61,71,YH5#,6#,73..MTM198708-199206

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLH51,61,71,YH5#,6#,73..MTM198708-199206

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-26131iYH53,63199206

main31481-26141iLH51,61,YH51,61..LHD198708-198908

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31485-26050iLH51,61,71..5H198708-198908

main31485-26070iYH53,63199206

31489TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE

main31489-26112iYH5#,6#,73..MTM198708-199206

main31489-26121iLH51,61,71..5H198708-198908

9161140814

main91611-40814

9161140816

main91611-40816

9161160814

main91611-60814

9161160816

main91611-60816

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9538102020

main95381-02020

9622120906

main96221-20906

22 parts on this diagram · 2 diagrams in section
