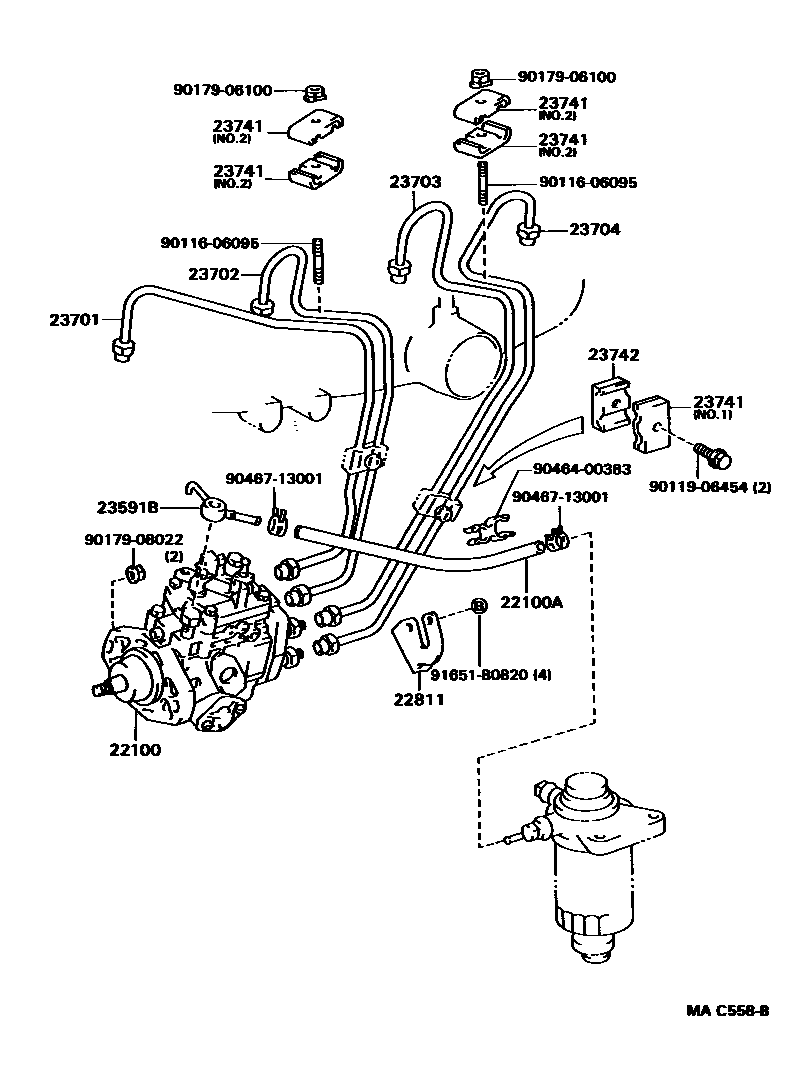

Toyota 711220 — INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23591BUNION(FOR INJECTION PUNP INLET)
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23742CLAMP, INJECTION PIPE, NO.2
9011606095
9011906454
9017906100
9017908022
9046400383
9046713001
91651B0820
17 parts on this diagram · 1 diagram in section
INJECTION PUMP ASSEMBLY for Toyota 711220
This section contains 17 genuine Toyota parts for the INJECTION PUMP ASSEMBLY system of the Toyota 711220. Key components include: PUMP ASSY, INJECTION OR SUPPLY, HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER), STAY, INJECTION PUMP, NO.1, UNION(FOR INJECTION PUNP INLET), PIPE SUB-ASSY, INJECTION, NO.1.
