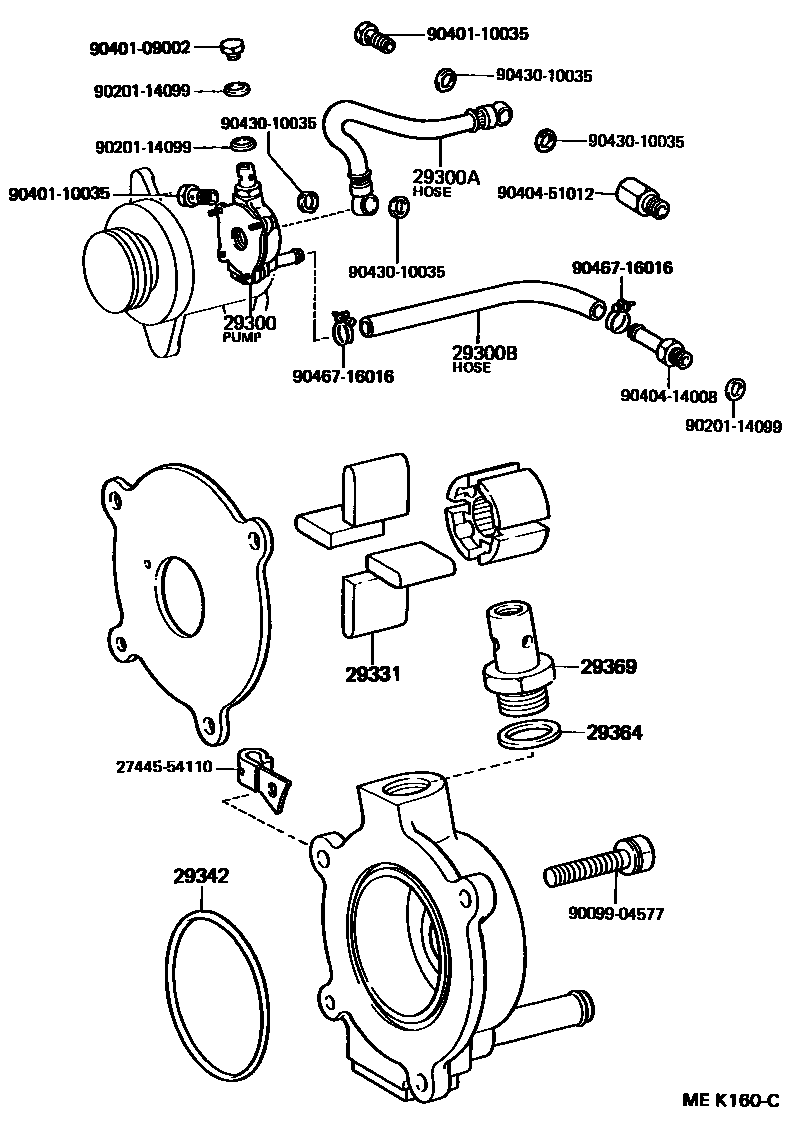

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54050i2L..LH51,61,71198708-198908

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LH51,61,71198708-198908

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LH51,61,71198808-198908

main90923-02076i2L..LH51,61,71198708-198808

29331BLADE, VACUUM PUMP, A

main29331-56070i2L..LH51,61,71198708-198908

29342PACKING, VACUUM PUMP

main96740-02063i2L..LH51,61,71198708-198908

29364WASHER, VACUUM PUMP

main29364-66010i2L..LH51,61,71198708-198908

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LH51,61,71198708-198908

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110035

main90401-10035

9040414008

main90404-14008

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

16 parts on this diagram · 1 diagram in section
