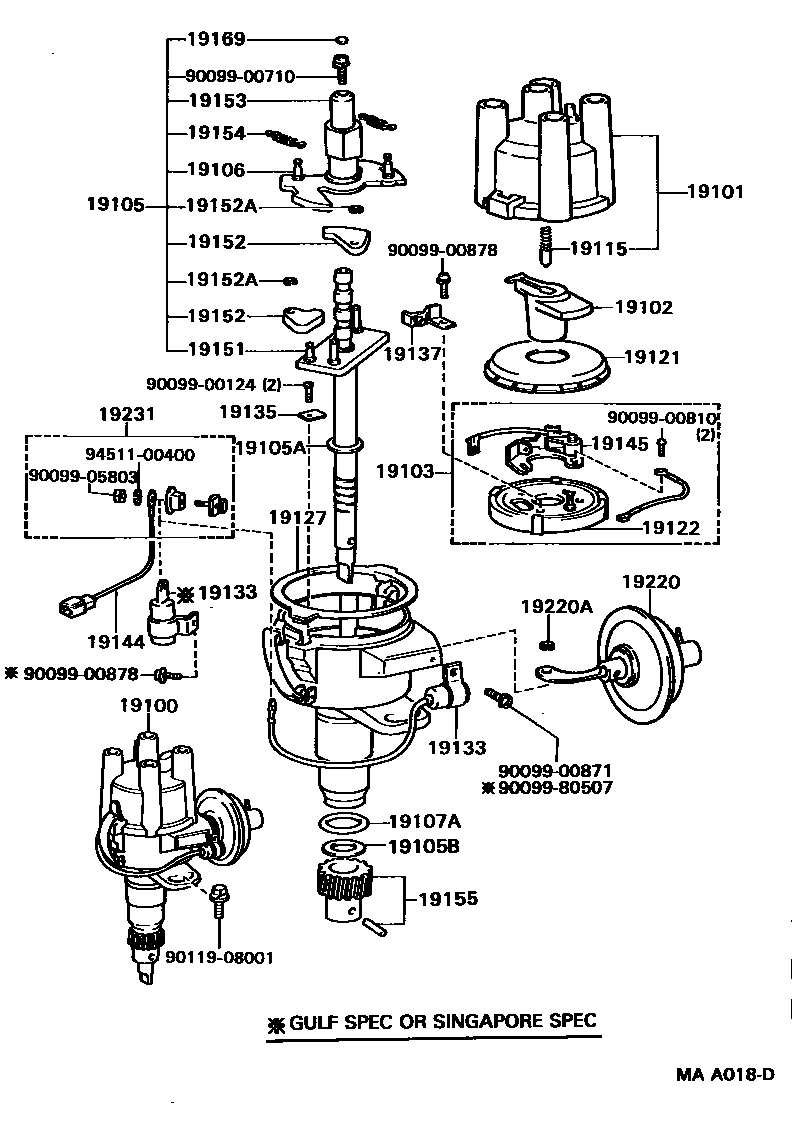

DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1

19100DISTRIBUTOR ASSY

main19030-73050i4Y..YH63..GEN198708-198908

main19030-73140i4Y..YH53,63199206

main19100-71010i2Y,3Y..YH51,60,61..4H,4HC198708-199206

main19100-71020i3Y..YH51,61..LHD..4H; 3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198808-198908

GULF SPEC; SINGAPORE SPEC

main19100-73020i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198908

CHINA SPEC

main19100-73040i4Y..YH53,63,73..ARL,SA198708-198901

main19100-73090i4Y..YH53,63,73..ARL198901-198908

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-71010i4Y..YH63..GEN198708-199206

main19101-71020i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16040i4Y..YH63..GEN198708-199206

main19102-26151i3Y..YH51,61..LHD..4H; 3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198708-198903

GULF SPEC; SINGAPORE SPEC

main19102-33012i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-198903

main19102-73060i3Y..YH51,61..LHD..4H; 3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198903-198908

GULF SPEC; SINGAPORE SPEC

main19102-75010i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198903-199206

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-26211i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19105GOVERNOR SUB-ASSY

main19105-71011i2Y,3Y..YH51,60,61..4H,4HC198708-199010

main19105-73010i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198908

CHINA SPEC

main19105-73040i4Y..YH53,63..SA198901-199010

main19105-73041i4Y..YH63..GEN198708-198908

main19105-73090i4Y..YH53,63,73..ARL198901-198908

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01385i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199010

T=2.5

main90099-01386i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199010

T=2.7

main90099-01387i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199010

T=2.9

main90099-01412i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199010

T=2.3

main90099-01486×2i4Y..YH63..GEN198708-198908

T=0.3

main90099-01487×2i4Y..YH63..GEN198708-198908

T=0.4

main90099-01488×2i4Y..YH63..GEN198708-198908

T=0.6

main90099-01489×2i4Y..YH63..GEN198708-198908

T=0.5

19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)

main90099-01429i2Y,3Y,4Y..YH5#,6#,73198708-199010

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-25010i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198908

CHINA SPEC

main19106-34090i4Y..YH53,63,73..ARL,SA198708-199010

main19106-71010i2Y..YH60199010-199206

main19106-73020i4Y..YH53,63199010-199206

main19106-88220i2Y,3Y..YH51,60,61..4H,4HC198708-199010

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i2Y,3Y,4Y..YH5#,6#,73198708-199010

main90099-14090i2Y,4Y..YH53,6#199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

main19115-63010×2i4Y..YH53,63199206

19121COVER, DUST PROOF

main19121-38030i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

main19121-63010i4Y..YH63..GEN198708-199206

NO.1

main19121-63040i4Y..YH63..GEN198708-199206

NO.2

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-26211i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19127PACKING, DUST PROOF

main19127-15010i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

main19127-63010i4Y..YH53,63199206

NO.1

main19127-63020i4Y..YH63..GEN198708-199206

NO.2

19133CONDENSER, DISTRIBUTOR

main90099-52059i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

main90099-52070i3Y..YH51,61..LHD..4H; 3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198808-198908

GULF SPEC; SINGAPORE SPEC

19135PLATE, HOLDER

main90099-02198×2i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19137SPRING SUB-ASSY, DAMPER

main19137-33012i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19144LEAD, DISTRIBUTOR BREAKER

main19144-34180i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-198809

main19144-34190i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198809-199206

main19144-71061i4Y..YH63..GEN198708-198908

main19144-72020i4Y..YH53,63199206-199309

main19144-73070i4Y..YH53,63199309

19145POINT, DISTRIBUTOR

main19145-26060i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19151SHAFT, GOVERNOR

main19151-71010i4Y..YH63..GEN198708-198908

main19151-71020i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199010

19152WEIGHT, GOVERNOR

main19152-63010×2i2Y,3Y,4Y..YH5#,6#,73198711-199206

main19152-71010×2i3Y,4Y..YH5#,6#,73198708-198711

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i2Y,3Y,4Y..YH5#,6#,73198708

19153SPRING, GOVERNOR, A

main19153-71012i2Y,3Y..YH51,60,61..4H,4HC198708-199206

main19153-73010i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198908

CHINA SPEC

main19153-73040i4Y..YH53,63,73..ARL,SA198708-198901

main19153-73041i4Y..YH63..GEN198708-198908

main19153-73071i4Y..YH53,63199206

main19153-73090i4Y..YH53,63,73..ARL198901-198908

19154SPRING, GOVERNOR, B

main19153-71012i2Y,3Y..YH51,60,61..4H,4HC198708-199206

main19153-73010i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198908

CHINA SPEC

main19154-73040i4Y..YH53,63..SA198901-199206

main19154-73041i4Y..YH63..GEN198708-198908

main19154-73070i4Y..YH53,63199206

main19154-73090i4Y..YH53,63,73..ARL198901-198908

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-71010i4Y..YH53,63199206-199603

main19195-71011i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

main19195-72090i4Y..YH53,63199603

19169STOPPER, CAM GREASE

main19169-63011×2i2Y,3Y..YH51,60,61; 4Y..YH53,63,73198708-199008

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-71011i2Y,3Y..YH51,60,61198708-199010

main19220-71030i2Y..YH60199010-199206

main19220-73030i4Y..YH53,63,73..ARL,SA198708-199010

main19220-73051i4Y..YH63..GEN198708-198908

main19220-73080i4Y..YH53,63199010-199206

main19220-73170i4Y..YH53,63199206

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07109i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

19231TERMINAL, DISTRIBUTOR

main19231-24140i4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73198708-199206

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009905803

main90099-05803

9009980507

main90099-80507

9011908001

main90119-08001

9451100400

main94511-00400

37 parts on this diagram · 4 diagrams in section
