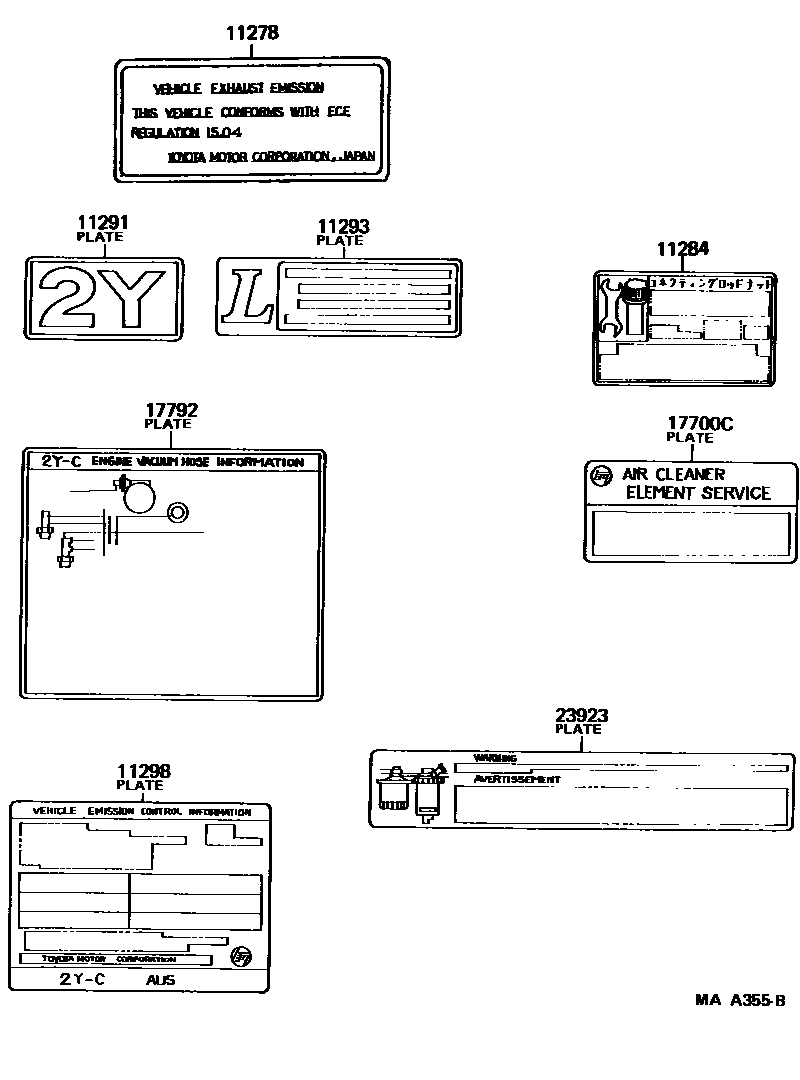

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-16020i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198708-198908

SINGAPORE SPEC

main11278-54010i2L..LH51,61,71..ARL198708-198912

11284PLATE, ENGINE BOLT INFORMATION

main11284-54010i2L..LH51,61,71..ARL198807-198808

11291PLATE, ENGINE NAME

main11291-73010i3Y..YH51,61198708-198808

main11291-73040i4Y..YH53,63,73198708-198808

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-54030i2L..LH51,61,71198708-198908

main11293-54090i2L..LH61..LHD;2L..LH51..LHD..12S;2L..LH51..LHD..VSP198708-198908

CHINA SPEC

main11293-72040i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198712-198908

CHINA SPEC

main11293-73080i3Y..YH51,61..LHD..4H; 3Y..YH61..5H198708-198712

CHINA SPEC

11298PLATE, EMISSION CONTROL INFORMATION

main11298-73150i4Y..YH53,63,73..ARL198708-198908

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07084i3Y..YH61..4H,4HC;2L,2Y,3Y,4Y..LH51,61,71,YH5#,60,63,73198708-199303

main90917-07107i3Y..YH61..5H; 3Y..YH61..LHD..4H;2L..LH51..LHD..VSP;2L..LH51..LHD..12S;2L,3Y..LH61,YH51..LHD198708-198908

CHINA SPEC

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-73230i3Y..YH51,61..LHD..4H198708-198908

GULF SPEC

main17792-73290i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198708-198908

SINGAPORE SPEC

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-54040i2L..LH51,61,71; 2L..LH61..LHD;2L..LH51..LHD..12S;2L..LH51..LHD..VSP198708-198908

COLD SPEC & W(FUEL HEATER)

main23923-54070i2L..LH61..LHD;2L..LH51..LHD..12S;2L..LH51..LHD..VSP198708-198908

CHINA SPEC

8 parts on this diagram · 1 diagram in section
