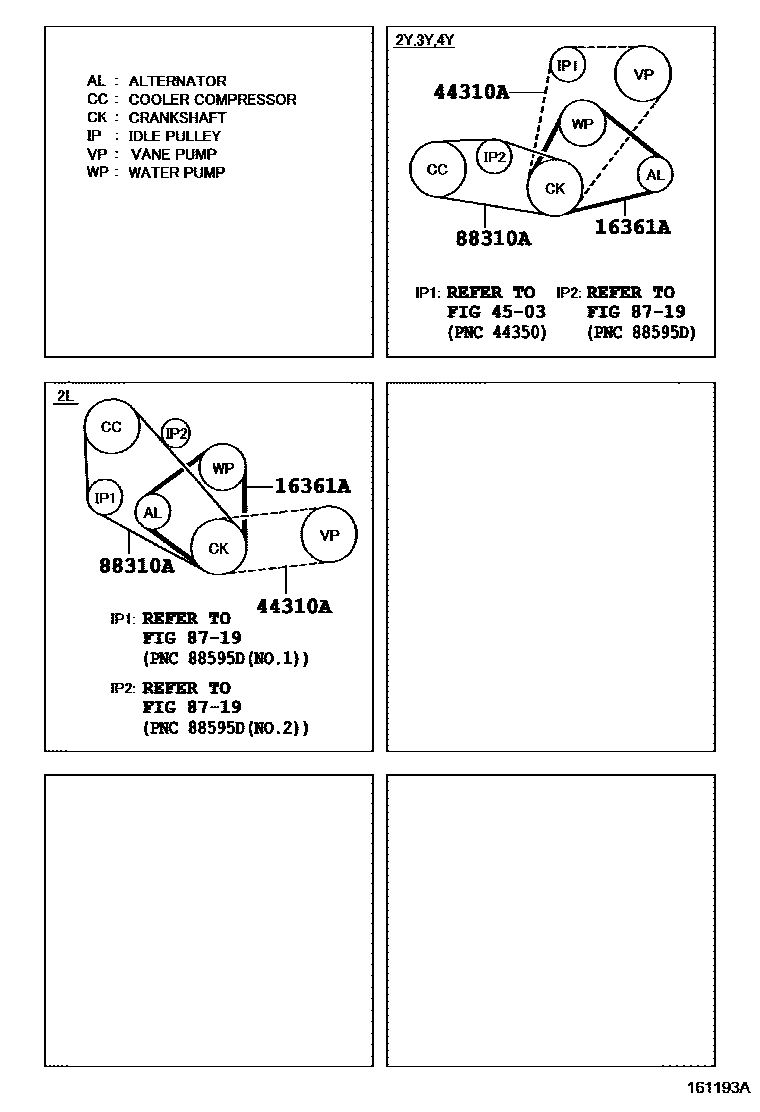

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i2L..LH51,61,71198708-198908

main99364-50830i2Y,3Y,4Y..YH5#,6#,73198708-199011

main99364-70830i2Y,4Y..YH53,6#199011-199402

main99364-80830i4Y..YH53,63199402

44310ABELT, V(FOR VANE PUMP)

main99332-00830iLH71;LH51,61..GEN198708-198908

L=830

main99332-01055iYH73;YH51,61,63..GEN;YH53..(4HC,5F,5H)..GL198808-199610

L=1055

main99332-01055iYH73;YH51,61,63..GEN;YH53..(4HC,5F,5H)..GL198808-199206

L=1055,W(POWER STEERING)

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00905iYH5#,61,63..V..STD..(ARL,GEN)198708-198908

L=905

main99322-00930iYH5#,61,73..05S,12S,15S198708-198908

L=930

main99322-01250iLH71;LH51,61..GEN198708-198908

L=1250

5 parts on this diagram · 1 diagram in section
