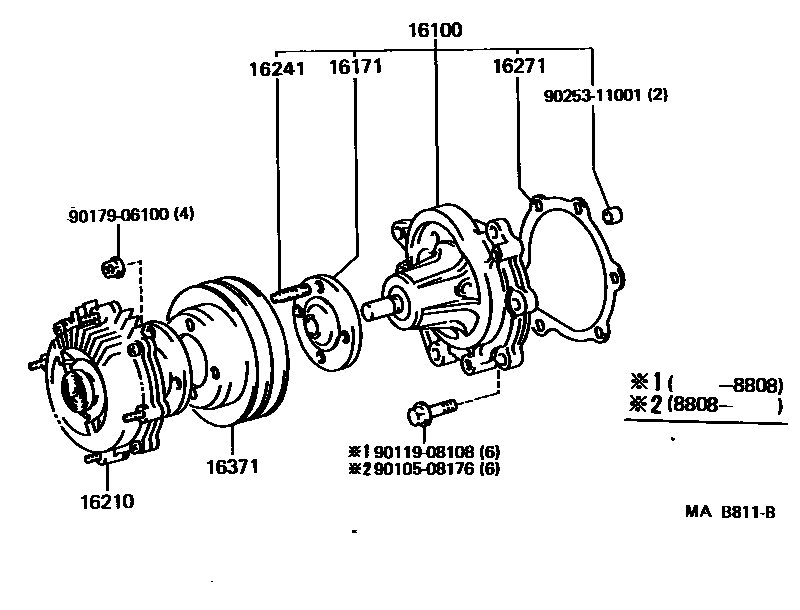

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59137i2L..LH51,61,71198708-199001

main16100-79036i2Y,3Y,4Y..YH5#,6#,73198708-199611

main16100-79037i4Y..YH53,63199611

16171SEAT, WATER PUMP PULLEY

main16171-54011i2L..LH51,61,71198708-198908

16210COUPLING ASSY, FLUID

main16210-31010i2Y,4Y..YH53,60,63,73198708

main16210-54070i2L..LH51,61,71198708-198908

main16210-72010i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198808-198908

SINGAPORE SPEC

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020×4i2L..LH51,61,71198708-198908

main16193-71010×4i2Y,3Y,4Y..YH5#,6#,73198708

16271GASKET, WATER PUMP

main16271-54012i2L..LH51,61,71198708-198912

16371PULLEY, FAN

main16371-54020i2L..LH51,61,71198708-198908

main16371-71010i2Y,3Y,4Y..YH5#,6#,73198708

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100

9025311001

main90253-11001

10 parts on this diagram · 2 diagrams in section
