ENGINE OIL COOLER

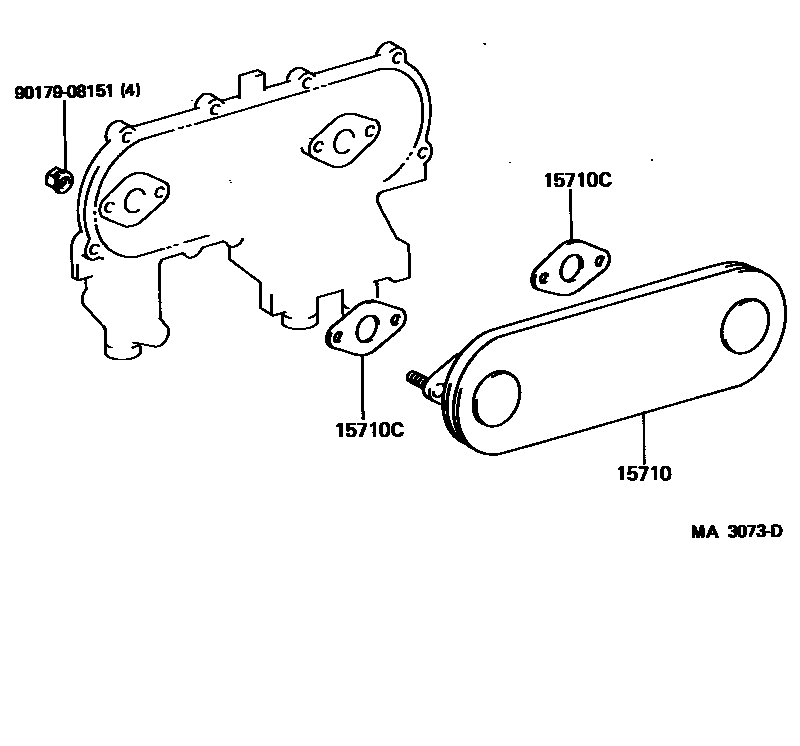

Parts diagram

15710COOLER ASSY, OIL

main15710-54030i198708-198908

15710CGASKET(FOR OIL COOLER)

main15785-54010×2i198808-198908

main90923-05015×2i198708-198808

9017908151

main90179-08151

3 parts on this diagram · 1 diagram in section
