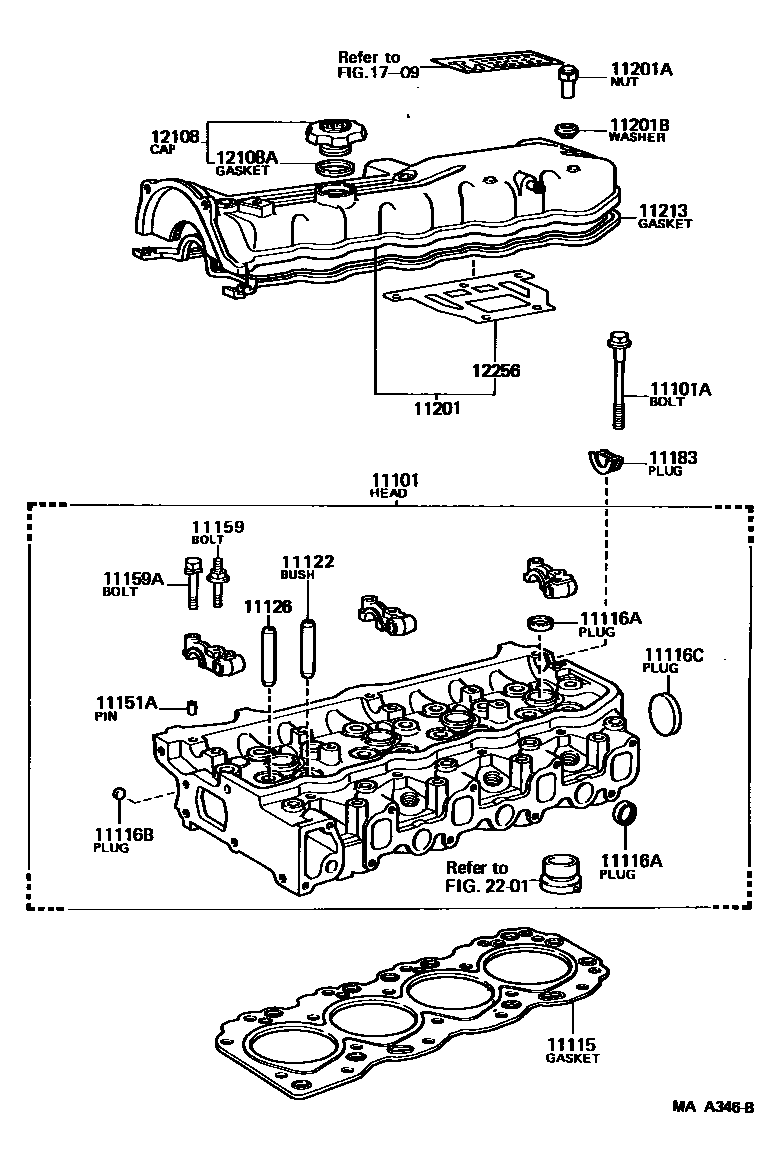

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54050i2L..LH51,61,71198708-198908

main11101-71010i2Y..YH60198808-199206

main11101-73020i3Y,4Y..YH5#,61,63,73198708-199212

main11101-73021i4Y..YH53,63199212

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056×10i2Y,3Y,4Y..YH5#,6#,73198708

main90910-02060×18i2L..LH51,61,71198708-198807

main90910-02090×18i2L..LH51,61,71198807-198908

11115GASKET, CYLINDER HEAD

main11115-54020i2L..LH51,61,71198708-198912

sub11115-54021

main11115-73030i4Y..YH53,63,73198708

main11115-73040i2Y,3Y..YH51,60,61198708-199206

sub11115-73041

11116APLUG, TIGHT, NO.1

main96411-42500×7i2L..LH51,61,71198708-198908

11116BPLUG, TIGHT, NO.2

main96411-41200×4i2L..LH51,61,71198708-198908

11116CPLUG, TIGHT, NO.3

main96411-45000i2L..LH51,61,71198708-198908

11122BUSH, INTAKE VALVE GUIDE

main11122-54011×4i2L..LH51,61,71198708-198908

STD

main11122-71020×4i2Y,3Y,4Y..YH5#,6#,73198708

STD

main11123-54011×4i2L..LH51,61,71198708-198908

O/S 0.05

main11123-71020×4i2Y,3Y,4Y..YH5#,6#,73198708

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-54011×4i2L..LH51,61,71198708-198908

STD

main11123-54011×4i2L..LH51,61,71198708-198908

O/S 0.05

main11126-71020×4i2Y,3Y,4Y..YH5#,6#,73198708

STD

main11127-71020×4i2Y,3Y,4Y..YH5#,6#,73198708

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001×6i2L..LH51,61,71198708-198908

L=11,OD=11

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137×3i2L..LH51,61,71198708-198908

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-08191×3i2L..LH51,61,71198708-198908

11183PLUG, SEMICIRCULAR

main11183-54011i2L..LH51,61,71198708-198908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-54080i2L..LH51,61,71198801-198908

main11201-71011i4Y..YH53,63199208-199512

main11201-71012i4Y..YH53,63199512

main11201-79035i2Y,3Y,4Y..YH5#,6#,73198708-199208

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007×3i2Y,3Y,4Y..YH5#,6#,73198708

main90176-08014×3i2L..LH51,61,71198708-198908

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001×3i2Y,3Y,4Y..YH5#,6#,73198708-199211

main90210-09019×3i4Y..YH53,63199211

main90210-13001×3i2L..LH51,61,71198708-198908

11213GASKET, CYLINDER HEAD COVER

main11213-54030i2L..LH51,61,71198708-198908

main11213-71020i2Y,3Y,4Y..YH5#,6#,73198708

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i2L..LH51,61,71198708-199312

main12180-61010i2Y,3Y,4Y..YH5#,6#,73198708-199003

sub12180-70020

main12180-73010i2Y,4Y..YH53,6#199011-199103

main12180-73011i2Y,4Y..YH53,6#199103

main12180-75010i2Y,4Y..YH53,6#199003-199011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2Y,4Y..YH53,6#199003-199011

main12195-71020i2Y,3Y,4Y..YH5#,6#,73198708-199003

main12195-73010i2Y,4Y..YH53,6#199011

main90430-37140i2L..LH51,61,71198708-198908

12256GASKET, VENTILATION BAFFLE

main12256-54020i2L..LH51,61,71198708-198908

1709

2201

21 parts on this diagram · 2 diagrams in section
