SHORT BLOCK ASSEMBLY

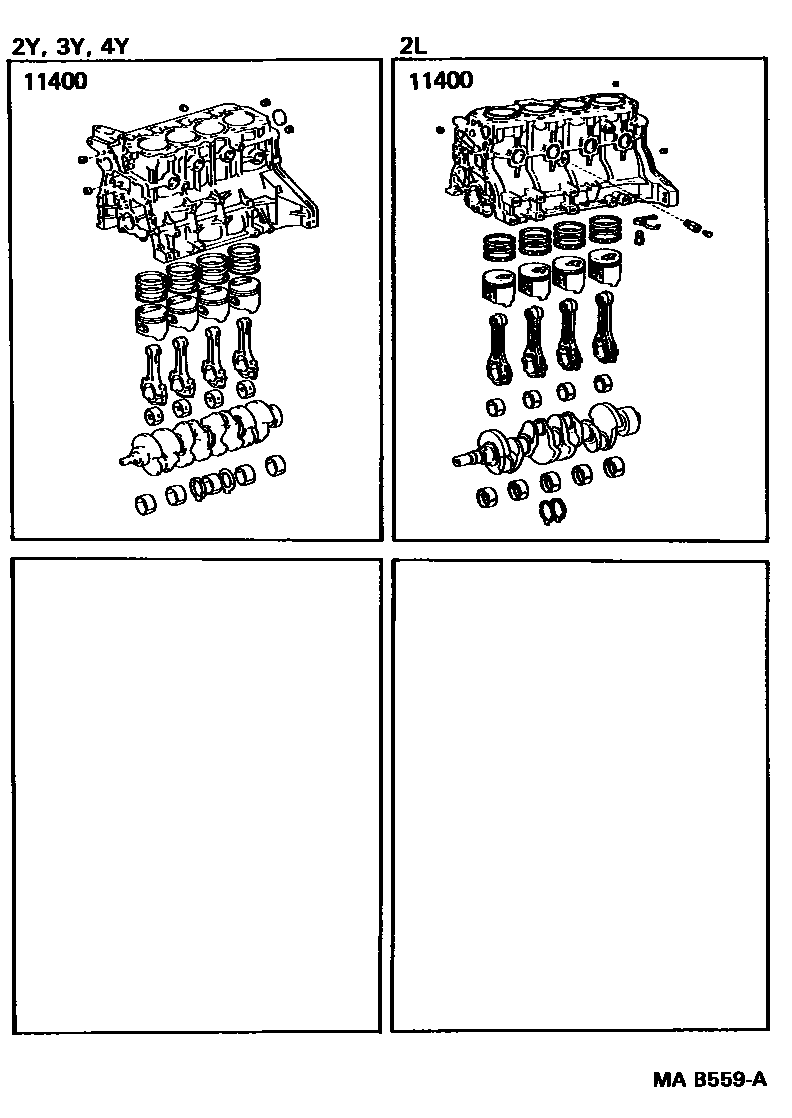

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54061i198708-198805

main11400-54062i198805-198807

main11400-54063i198807-198908

main11400-72031i198808-199111

main11400-73021i198708-198908

main11400-73060i199206

1 parts on this diagram · 1 diagram in section
