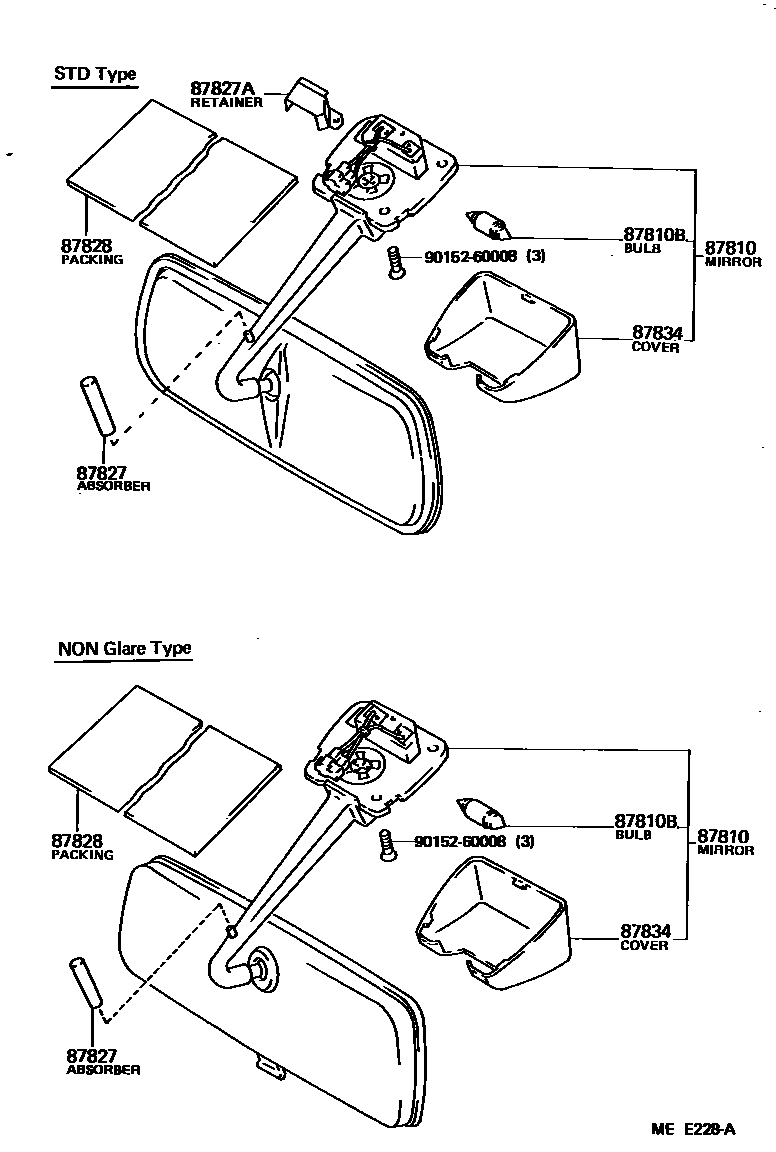

MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95704iYH51..4H..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..STD..(ARL,GEN)198212-198708

W/O CLOCK,STD TYPE

main87810-95705iYH51..4H..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..STD..(ARL,GEN)198212-198708

W/O CLOCK,NON GLARE TYPE

main87810-95706iYH5#,61..STD..SA198212-198606

W/O CLOCK,STD TYPE

main87810-95709iYH51,53,60,61,63..STD..SA198606-198807

W/O CLOCK,STD TYPE

main87810-95J00iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

W/CLOCK & STD TYPE

main87810-95J01iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

W/CLOCK & NON GLARE TYPE

main87810-95J02iYH51..5H..M1;LH5#,6#,YH50,6#..EUR;YH51..(03S,06S,09S,12S)..EUR198212-198606

W/CLOCK & STD TYPE

main87810-95J03iYH51..5H..M1;LH5#,6#,YH50,6#..EUR;YH51..(03S,06S,09S,12S)..EUR198212-198606

W/O CLOCK,NON GLARE TYPE

main87810-95J04iYH51..5H..M1;LH5#,6#,YH50,6#..EUR;YH51..(03S,06S,09S,12S)..EUR198212-198606

W/CLOCK & NON GLARE TYPE

main87810-95J05iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198606-198708

W/CLOCK & STD TYPE

main87810-95J06iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198606-198807

W/O CLOCK,NON GLARE TYPE

main87810-95J07iYH51,53..GL..SA198606-198807

W/CLOCK & NON GLARE TYPE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iLH5#,6#,7#,YH5#,6#,7#198212-198807

12V 10W,12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22010iYH50,51,53,60,61,63..SA198212-198807

L=37

main87828-30010iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198807

L=43.5

87827ARETAINER, INNER REAR VIEW MIRROR

main81218-90C00iYH60,61..HRF198508-198708

87828PACKING, REAR VIEW INSIDE MIRROR SUPPORT

main87839-95J00iYH51..N1;YH51..4H..ARL;LH5#,6#,YH50,6#..ARL,EUR,GEN198212-198708

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iLH5#,6#,7#,YH5#,6#,7#..STD198212-198807

W/O CLOCK

main81243-95J00iYH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH5#,6#,7#,YH50,53,56,6#,7#..ARL,EUR,GEN198212-198807

W/CLOCK

9015260008

main90152-60008

7 parts on this diagram · 2 diagrams in section
