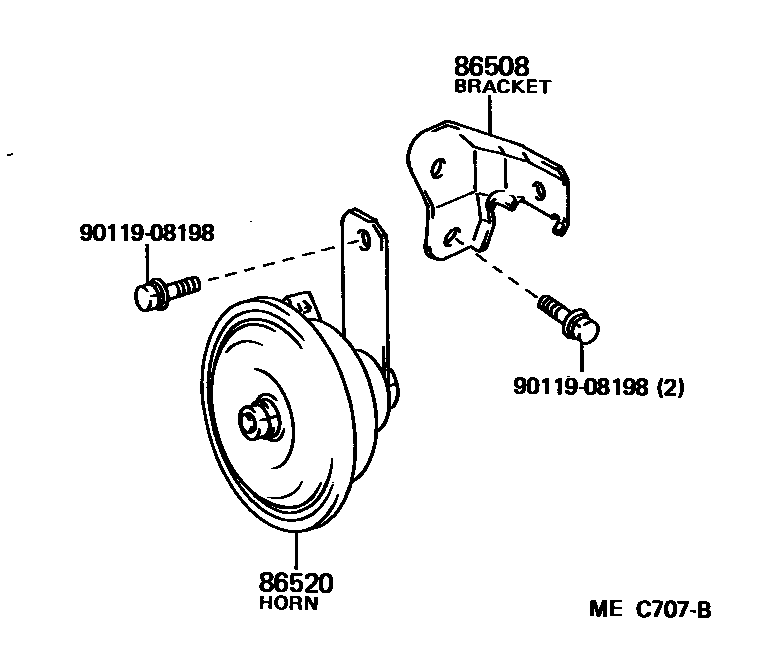

HORN

86508BRACKET SUB-ASSY, HORN

main86591-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main86591-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

main86591-95J03iYH53,6#198708-198807

86520HORN ASSY, LOW PITCHED

main86520-12620iYH51,53,60,61,63..SA198508-198807

main86520-22050iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..RHD..(ARL,GEN,SA)198212-198403

DENSO

main86520-22090iLH5#,6#,YH50,6#..RHD..GEN198212-198508

W/NOISE FILTER

main86520-22100iYH51..RHD..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..RHD..(ARL,GEN)198508-198708

DENSO

main86520-22110iYH51..RHD..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..RHD..(ARL,GEN)198508-198708

MARUKO

main86520-22140iLH51,61,YH50,51,60,61,63..RHD..GEN198508-198708

W/NOISE FILTER

main86520-95703iLH5#,6#,YH50,6#..RHD..EUR198212-198508

main86520-95704iLH5#,6#,YH5#,6#..LHD..EUR198212-198508

main86520-95J00iLH5#,6#,YH50,60..LHD..GEN198212-198512

DENSO

main86520-95J01iYH61..LHD..4H..GEN;LH50,51,60,61,YH50,51,60..LHD..GEN198212-198708

MARUKO

main86520-95J03iLH5#,6#,YH50,60..LHD..GEN198212-198508

CHINA SPEC

main86520-95J04iLH5#,6#,YH50,60..LHD..GEN198212-198508

W/NOISE FILTER

main86520-95J05iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..RHD..(ARL,GEN,SA)198212-198403

MARUKO

main86520-95J06iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

CHINA SPEC

main86520-95J08iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198508-198708

main86520-95J09iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

W/NOISE FILTER

9011908198

main90119-08198

3 parts on this diagram · 1 diagram in section
