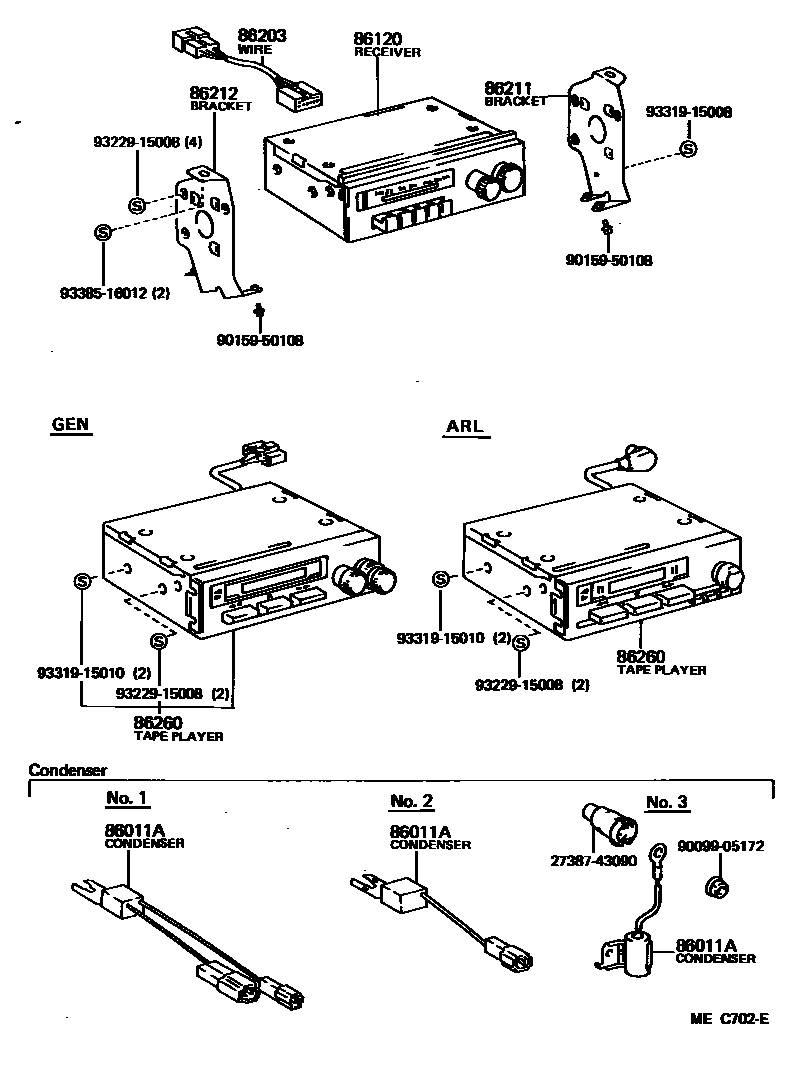

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04036iYH5#,6#,7#198212-198807

NO.1,LEAD WIRE:L=105 & 145

main90980-04040iLH5#,6#,7#,YH5#,6#,7#198212-198807

NO.2,LEAD WIRE:L=95

main90980-04057iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198602-198708

NO.3,ALTERNAT.,RADIO:LW/MW/UKW

86120RECEIVER ASSY, RADIO

main86120-14520iLH50,60,70,YH5#,6#,71..ARL,GEN,SA; LH50,60,YH50,60..LHD..EUR198212-198401

AM

main86120-14530iLH7#,YH71;YH61..VSG198212-198508

AM/FM

main86120-14581iLH5#,6#,YH50,6#..GEN198212-198408

MW/SW

main86120-17010iLH51..R,U;YH61..LHD..EUR;YH51..VSG..5H..EUR;YH50..LHD..4H..03S..N1;LH51..LHD..(03S,06S)..N1;LH61,YH50..LHD..(4HC,5H)..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR; YH51..4H..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..STD..(ARL,GEN)198403-198708

AM

main86120-22390iLH5#,6#,YH5#,6#..EUR198212-198410

LW/MW/UKW W/O ARI

main86120-22391iLH5#,6#,YH51,56,61,66..LHD..EUR198608-198708

FUJITSU TEN,LW/MW/UKW W/O ARI

main86120-22400iLH5#,6#,YH5#,6#..LHD..EUR198212-198410

LW/MW/UKW W/ARI

main86120-22401iYH51..5H..M1;LH51,61,YH50,61..LHD..EUR;YH51..LHD..(03S,06S,09S,12S)198410-198603

LW/MW/UKW W/ARI

main86120-22402iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198603-198708

FUJITSU TEN,LW/MW/UKW W/ARI

main86120-22451iYH51,53..05S198508-198708

AM/FM-MPX

main86120-22600iLH51,61,YH50,51,60,61,63..GEN198408-198708

MW/SW

main86120-32110iLH5#,6#,YH51,56,61,66..EUR198608-198708

LW/MW/UKW,ETR W/ARI

main86120-32240iLH5#,6#,YH51,56,61,66..EUR198608-198708

LW/MW/UKW,ETR W/O ARI

main86120-89124iLH51,61,YH5#,61..LHD..EUR; YH51..MTM;YH51..4HC..SA;LH51,61,71,YH50,6#,71..ARL,GEN,SA198401-198403

AM

86203WIRE, RADIO

main86203-20160iLH5#,6#,YH51,56,61,66..EUR198608-198708

86211BRACKET, RADIO, NO.1

main86201-95J00iLH50,60,70,YH5#,6#,71198212-198401

main86201-95J01iLH51,61,71,YH5#,6#,71198401-198608

main86211-95J08iLH5#,6#,71,YH5#,6#,73198608-198708

86212BRACKET, RADIO, NO.2

main86212-95J01iLH50,60,70,YH5#,6#,71198212-198401

main86212-95J03iLH5#,6#,71,YH5#,6#,73198608-198708

main86212-95J06iLH51,61,71,YH5#,6#,71198401-198608

86260TAPE PLAYER ASSY

main86260-19055iLH50,51,60,61,YH50,51,60,61,63..GEN198304-198708

main86260-22120iYH51,53..4FC198508-198708

2738743090INSULATOR, TERMINAL

main27387-43090

9009905172

main90099-05172

9015950108

main90159-50108

9322915008

main93229-15008

9331915008

main93319-15008

9331915010

main93319-15010

9338516012

main93385-16012

13 parts on this diagram · 1 diagram in section
