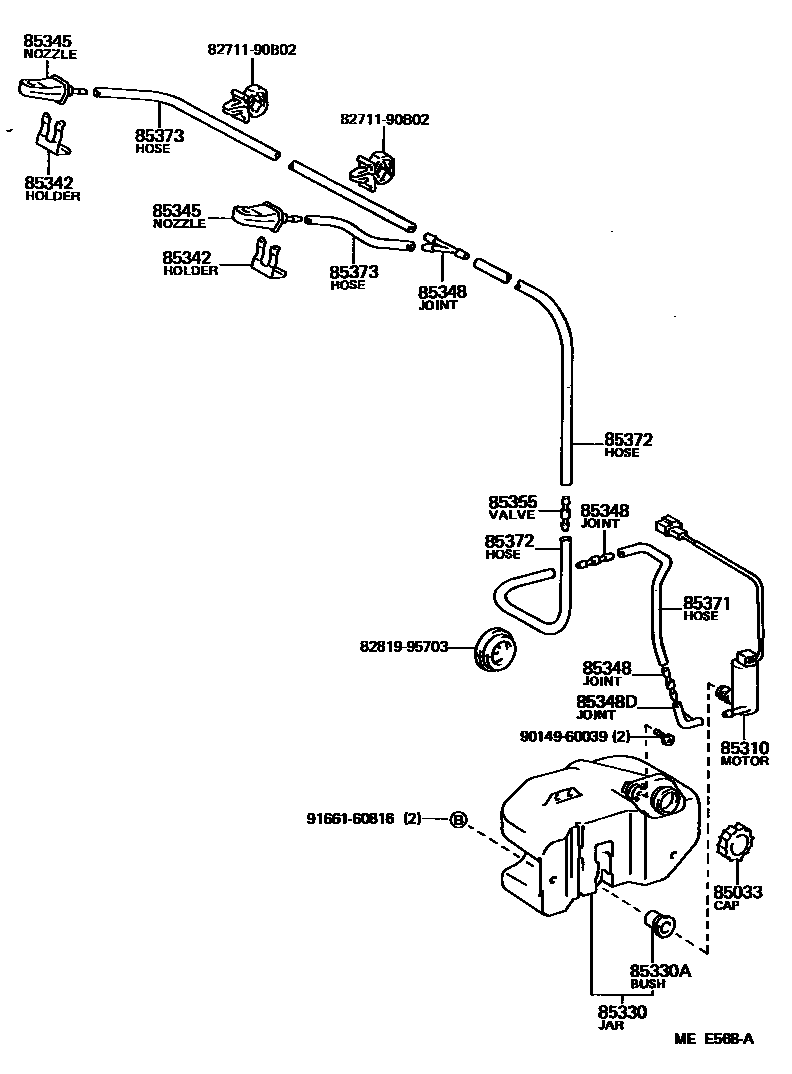

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-95J01iLH5#,6#,7#,YH5#,6#,7#198212-198807

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

85330JAR ASSY, WINDSHIELD WASHER

main85330-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLH5#,6#,7#,YH5#,6#,7#198212-198807

85342HOLDER, WASHER NOZZLE

main85342-95J00×2iLH50,60,70,YH50,6#,71198212-198305

main85342-95J01×2iLH5#,6#,7#,YH5#,6#,7#198305-198807

85345NOZZLE, WINDSHIELD WASHER

main85035-95701×2iLH50,60,70,YH50,6#,71198212-198305

main85035-95707×2iLH6#,YH50..LHD..5H..EUR;LH5#..LHD..5H..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1198212-198508

*FRG(SOFT NOZZLE)

main85035-95708×2iYH50..4HC,5H;LH51..03S,06S,12S;LH50,6#,7#,YH51,6#,71;YH50..4H..(03S,06S,12S)198305-198508

main85035-95714×2iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,56,61,66..EUR198508-198708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iLH5#,6#,7#,YH5#,6#,7#198212-198807

3 WAY

main85349-89122×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

2 WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iLH5#,6#,7#,YH5#,6#,7#198212-198807

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iLH5#,6#,7#,YH5#,6#,7#198212-198807

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33419iLH5#,6#,7#,YH5#,6#,7#198212-198807

L=200

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33418iLH5#,6#,7#,YH5#,6#,7#198212-198807

L=300

main90446-06006iLH5#,6#,7#,YH5#,6#,71..RHD198212-198601

L=2000,*H,L=800

main90446-06013iLH5#,6#,YH50,51,56,60,61,66; LH51,61,71,YH50,51,53,60,61,63,7#..RHD198601-198807

L=1000(*H,L=550); L=1000(*H,L=640)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLH5#,6#,7#,YH5#,6#,71198212-198601

L=1000(*H,L=100)

main90446-06023iLH5#,6#,71,YH5#,6#,7#198601-198708

L=1000(*H,L=260)

main90446-06024iLH5#,6#,71,YH5#,6#,7#198601-198708

L=1000(*H,L=810)

8271190B02WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-90B02

8281995703GROMMET, WIRING HARNESS

main82819-95703

9014960039

main90149-60039

9166160816

main91661-60816

16 parts on this diagram · 1 diagram in section
