OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302INDICATOR

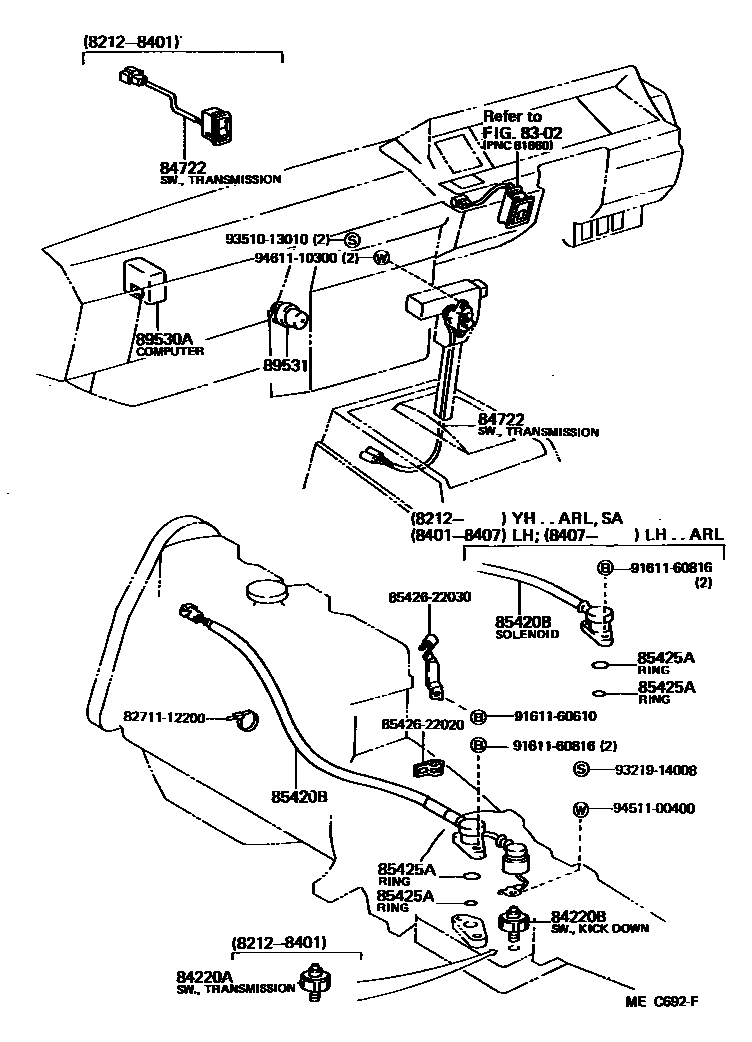

→ Go to FIG 83-02

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iLH50..4HC; YH50..4HC..EUR198212-198401

84220BSWITCH ASSY, KICK DOWN

main84220-30050iYH61..4HC..N1;YH51..4HC..(03S,06S,09S)..N1198401-198708

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-14iYH51,53..4FC198508-198708

BLUE,BLUE

main84722-26010iLH50,YH50..4HC198212-198401

85420BSOLENOID ASSY, TRANSMISSION

main85420-22040iLH50..4HC198212-198401

main85420-22060iLH51,61..4HC198401-198407

main85420-30090iYH51..ATM..GL;YH61..V4D..4HC198508-198608

main85420-30100iLH51,61..4HC..ARL; YH61..4HC..N1;LH51,61,YH51..4HC..03S..N1198508-198708

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iLH50,51,61,YH50,51,61..ATM198212-198807

ID=11

main90301-23001iLH50,51,61,YH50,51,61..ATM198212-198807

ID=23

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-26010iLH51,61..4HC..N1198407-198505

main89530-26011iLH51,61..4HC198508-198708

main89530-26020iYH50..4HC..EUR198212-198401

main89530-26030iYH51,61..4HC..N1198401-198505

main89530-26031iYH61..4HC..N1;YH51..4HC..(03S,06S,09S)..N1198505-198708

89531RELAY, TRANSMISSION CONTROL

main90987-03001iLH51,61..4HC198401-198407

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

9161160610

main91611-60610

9161160816

main91611-60816

9321914008

main93219-14008

9351013010

main93510-13010

9451100400

main94511-00400

9461110300

main94611-10300

17 parts on this diagram · 1 diagram in section
