BATTERY & BATTERY CABLE

28800BATTERY

main28800-26090i2Y,3Y..YH50,51,60,61..COM..GEN198212-198708

46B24L,46B24L(NS60L)

main28800-42010iL,2L..LH5#,6#,7#..MTM198212-198708

75D31L,75D31L(N70ZL)

main28800-54030iL,2L..LH50,51,61..4HC198212-198708

95D31L,95D31L(NX120-7L)

main28800-54050iL,2L..LH5#,6#..EUR;L,2L..LH50,51,60,61..LHD..GEN198212-198708

130E41L,130E41L(NX200-10L)

main28800-64010i3Y..YH51..VSG..5H..EUR;2Y,3Y,4Y..YH50,56,60,61,66..EUR;3Y..YH51..(03S,06S,09S,12S)..EUR198212-198708

55D23L,55D23L

main28800-64030i2Y#,3Y,4Y..YH5#,6#,71198212-198807

55D20L,55D20L

main28800-72010i2Y..YH50,60..V..GEN198212-198608

34B19L(S),34B19L(NS40ZAL)

28800BCABLE, BATTERY TO GROUND

main82123-95J00i2Y#,3Y,4Y..YH5#,6#,71198212-198807

main82123-95J02iL,2L..LH5#,6#,7#198212-198708

main82123-95J06i3Y..YH51..4H..ARL;2YC,3Y,4Y..YH50,53,61,63..V4D..03S..ARL198303-198708

TELECOM

main82123-95J07iL,2L..LH50,51,60,61..ARL198303-198708

TELECOM

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-95J00i2Y#,3Y,4Y..YH50,51,53,60,61,63,71198212-198807

main82122-95J02iL,2L..LH5#,6#..EUR; L,2L..LH5#,61..4HC198212-198508

COLD SPEC,STARTER : 2.5KW; STARTER : 2.5KW

main82122-95J03iL,2L..LH5#,6#,7#..5H198212-198508

STARTER : 2.0KW

main82122-95J09i3Y..YH51..4H..ARL;2YC,3Y,4Y..YH50,53,61,63..V4D..03S..ARL198303-198807

TELECOM

main82122-95J10iL,2L..LH5#,6#..5H..ARL198303-198508

TELECOM

main82122-95J11iL,2L..LH5#,61..4HC..ARL198303-198508

TELECOM

main82122-95J12i2L..LH51,61..4HC; 2L..LH51,61..EUR; 2L..LH51,61..LHD..GEN198508-198708

COLD SPEC,STARTER : 2.5KW; STARTER : 2.5KW

main82122-95J13i2L..LH51,61,71..5H198508-198708

STARTER : 2.0KW

main82122-95J15i2L..LH51,61..4HC..ARL198508-198708

TELECOM

main82122-95J16i2L..LH51,61..5H..ARL198508-198708

TELECOM

main82122-95J18i4Y..YH56,66198612-198708

main82122-95J19i2L..LH56,66198608-198708

STARTER :2.5KW

main82122-95J20i2L..LH56,66198608-198708

STARTER :2.0KW

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271130570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30570

8281995J02GROMMET, WIRING HARNESS

main82819-95J02

9011908103

main90119-08103

9017908146

main90179-08146

9046310338

main90463-10338

9046315439

main90463-15439

9161160816

main91611-60816

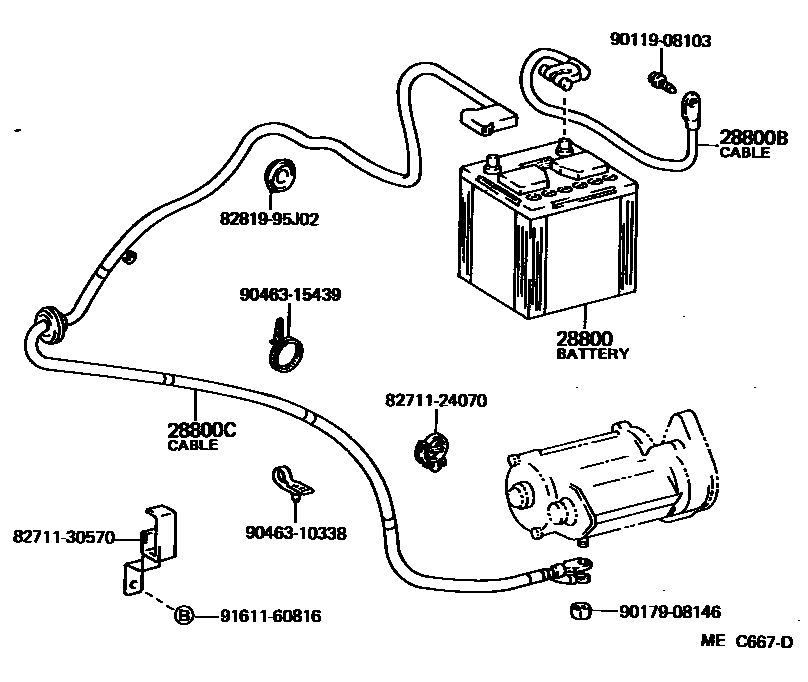

11 parts on this diagram · 1 diagram in section
