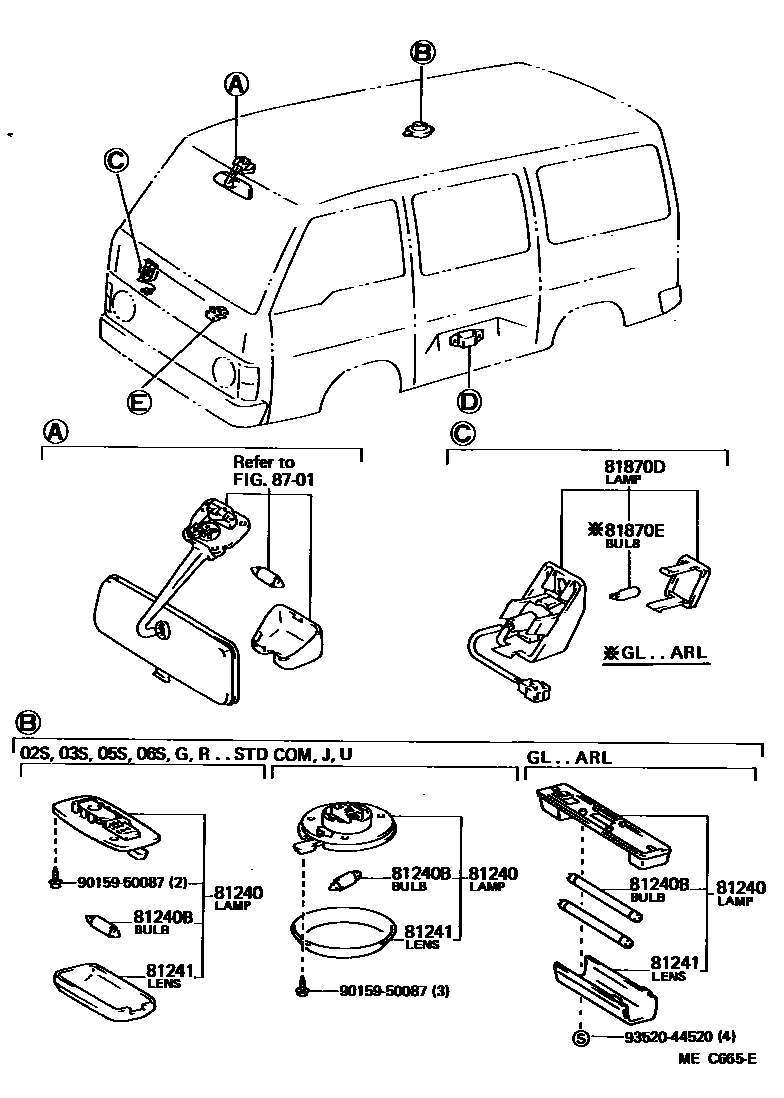

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-95704-05iYH51..5H..R;YH51..03S..N1;LH5#,6#,YH50,56,61,66..N1; YH51..V..4H..(ARL,GEN);LH51,61,YH50,53,60,61,63..(03S,06S)..(ARL,GEN,SA)198508-198708

BEIGE,BEIGE

main81240-95704-06iYH6#..03S198708-198807

BROWN,BROWN

main81240-95704-08iLH51..J;YH50..4H..J198407-198508

IVORY,IVORY

main81240-95705-05iLH5#,6#,YH51,56,61,66..MTM..M1198508-198708

BEIGE,BEIGE

main81240-95705-08iYH51..J;LH6#,YH50,6#..(4HC,5H)..J198212-198508

IVORY,IVORY

main81240-95A18×2iLH7#,YH7#198212-198708

main81240-95J01-03iYH51,53..05S198508-198708

GRAY,GRAY

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH7#,YH7#; YH51..4HC..(03S,06S,09S)..N1;YH51..MTM..STD..(ARL,EUR,GEN);LH5#,6#,YH50,53,56,6#..STD..(ARL,EUR,GEN)198212-198708

12V 10W,12V 10W

main90981-11033×2iYH51,53..05S198508-198708

100V 6W(MARK FL-6W),12V 6W

81241LENS, ROOM LAMP, NO.1

main81241-95013iYH51..5H..R;YH51..03S..N1;LH5#,6#,YH50,56,61,66..N1198508-198708

main81241-95705iLH5#,6#,YH51,56,61,66..MTM..M1198508-198708

main81241-95J00iYH51,53..05S198508-198708

81870DLAMP ASSY, KEY CYLINDER

main81380-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

main81380-95J02-05iYH51198306-198401

BEIGE,BEIGE

main81380-95J02-15iYH51,53..GL..SA198508-198807

BROWN,BROWN

81870EBULB, KEY CYLINDER LAMP

main90981-11018iYH51,53..05S198508-198708

12V 1.2W W/O SOCKET

8701MIRROR

→ Go to FIG 87-01

9015950087

main90159-50087

9352044520

main93520-44520

8 parts on this diagram · 2 diagrams in section
