Toyota 711220 — HEADLAMP

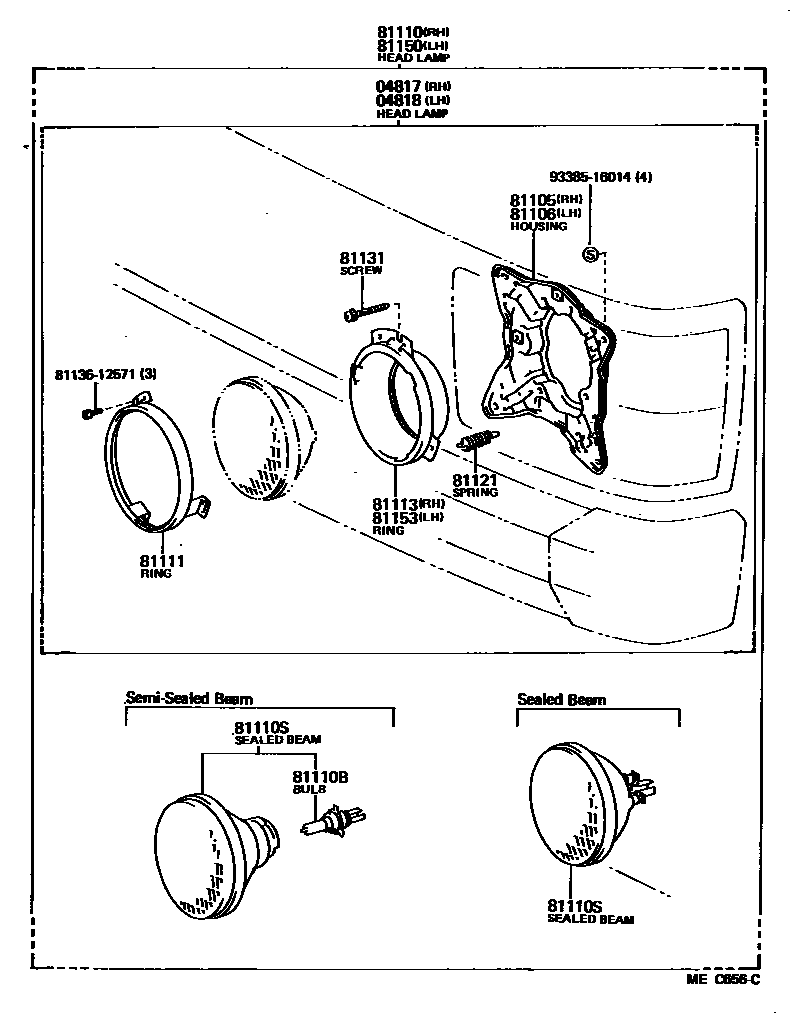

Parts diagram

04817HEADLAMP KIT, W/O SEALED BEAM, RH

04818HEADLAMP KIT, W/O SEALED BEAM, LH

81105HOUSING SUB-ASSY, HEADLAMP, RH

81106HOUSING SUB-ASSY, HEADLAMP, LH

81110BBULB(FOR HEADLAMP, NO.1)

81110SSEALED BEAM UNIT, NO.1

81111RING, SEALED BEAM RETAINING

81113RING, SEALED BEAM MOUNTING, NO.1 RH

81121SPRING, HEADLAMP TENSION

81131SCREW, HEADLAMP ADJUSTING

81153RING, SEALED BEAM MOUNTING, NO.1 LH

8113612571PROTECTOR, HEADLAMP, NO.1 RH

9338516014

15 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota 711220

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota 711220. Key components include: HEADLAMP KIT, W/O SEALED BEAM, RH, HEADLAMP KIT, W/O SEALED BEAM, LH, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH.
