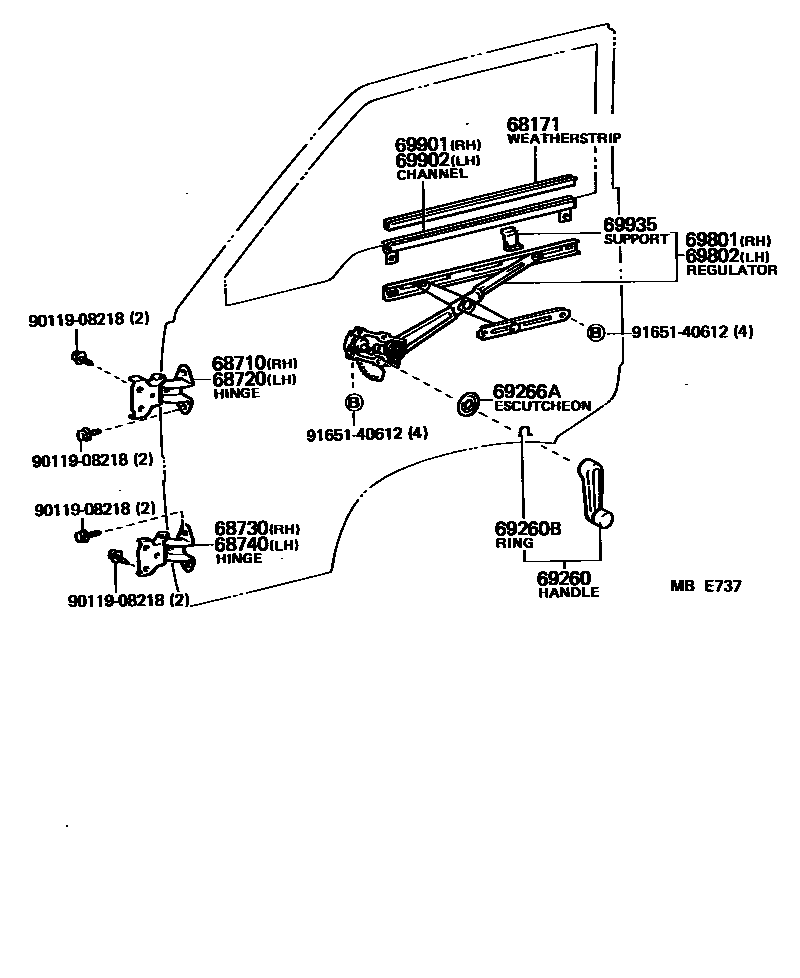

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95701iLH5#,6#,7#,YH5#,6#,71198212-198508

main68710-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

main68720-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

main68720-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95701iLH5#,6#,7#,YH5#,6#,71198212-198508

main68710-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-06×2iYH51..4HC..SA;YH51..(4H,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..(4H,4HC,5H)..(ARL,GEN,SA)198508-198807

BROWN,BROWN

main69260-14020-15×2iLH50,60,70,YH5#,6#,71..ARL,GEN,SA198212-198401

BEIGE,BEIGE

main69260-14020-44×2iYH51,53..05S198508-198708

BLUE,BLUE

main69260-14020-45×2iYH51..MTM;YH51..4HC..SA;LH51,61,71,YH50,6#,71..ARL,GEN,SA198401-198508

BEIGE,BEIGE

main69260-95J00-05×2iLH50,60,YH50,60..EUR198212-198401

BEIGE,BEIGE

main69260-95J00-06×2iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198508-198708

BROWN,BROWN

main69260-95J00-15×2iLH51,61,YH5#,61..EUR198401-198508

BEIGE,BEIGE

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010-08×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

NATURAL WHITE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iLH50,60,70,YH5#,6#,71198212-198311

main69901-87002iLH5#,6#,7#,YH5#,6#,7#198311-198807

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iLH50,60,70,YH5#,6#,71198212-198311

main69901-87002iLH5#,6#,7#,YH5#,6#,7#198311-198807

69935SUPPORT, DOOR GLASS CHANNEL

main69935-95J00×2iLH5#,6#,7#,YH5#,6#,71198212-198509

9011908218

main90119-08218

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
