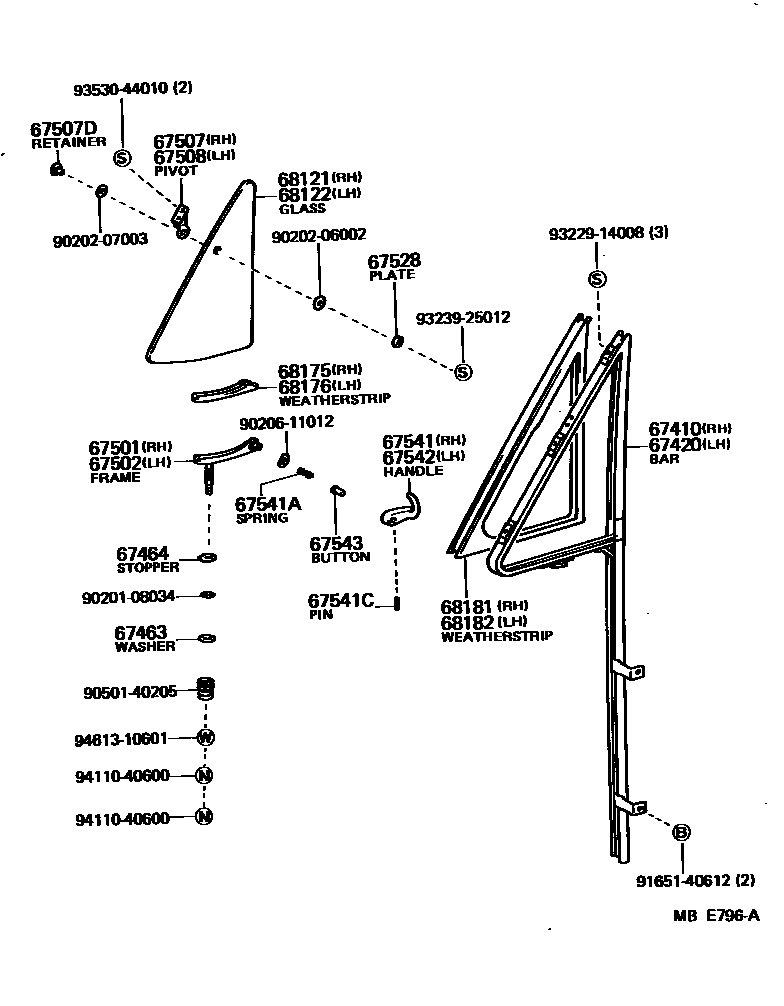

FRONT DOOR VENTILATOR WINDOW

67410BAR ASSY, FRONT DOOR WINDOW DIVISION, RH

main67501-95J00iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198508

67420BAR ASSY, FRONT DOOR WINDOW DIVISION, LH

main67502-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67577-95J00×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67503-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67504-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67507DRETAINER, VENT WINDOW PIVOT, UPPER

main67517-95A00×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-95A00×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

67541HANDLE, VENTILATING WINDOW LOCK, RH

main67541-95A00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67541ASPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)

main90501-05014×2iLH51,61,YH50,51,53,60,61,63..GEN,SA198508-198807

67541CPIN, VENTILATING WINDOW LOCK HANDLE

main90245-02019×2iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198508-198708

67542HANDLE, VENTILATING WINDOW LOCK, LH

main67542-95A00iYH61..V4D..VSG..03S..N1198405-198410

*SA

67543BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH

main67543-20020×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

68121GLASS, VENT WINDOW, RH

main68121-95J00iYH61..V4D..VSG..03S..N1198405-198410

*TEM,T=5.0,*SA,*TEM,T=5.0

main68121-95J01iYH51..4H..ARL;LH51,61,71,YH61,7#..ARL198508-198708

*TT,T=5.0,*TT,T=5.0

68122GLASS, VENT WINDOW, LH

main68122-95J00iYH61..V4D..VSG..03S..N1198405-198410

*TEM,T=5.0,*SA,*TEM,T=5.0

main68122-95J01iLH51,61,YH50,51,60,61..GEN,SA198508-198807

*TT,T=5.0,*TT,T=5.0

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68176-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68181-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68182-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

9020108034

main90201-08034

9020206002

main90202-06002

9020207003

main90202-07003

9020611012

main90206-11012

9050140205

main90501-40205

9165140612

main91651-40612

9322914008

main93229-14008

9323925012

main93239-25012

9353044010

main93530-44010

9411040600

main94110-40600

9461310601

main94613-10601

32 parts on this diagram · 1 diagram in section
