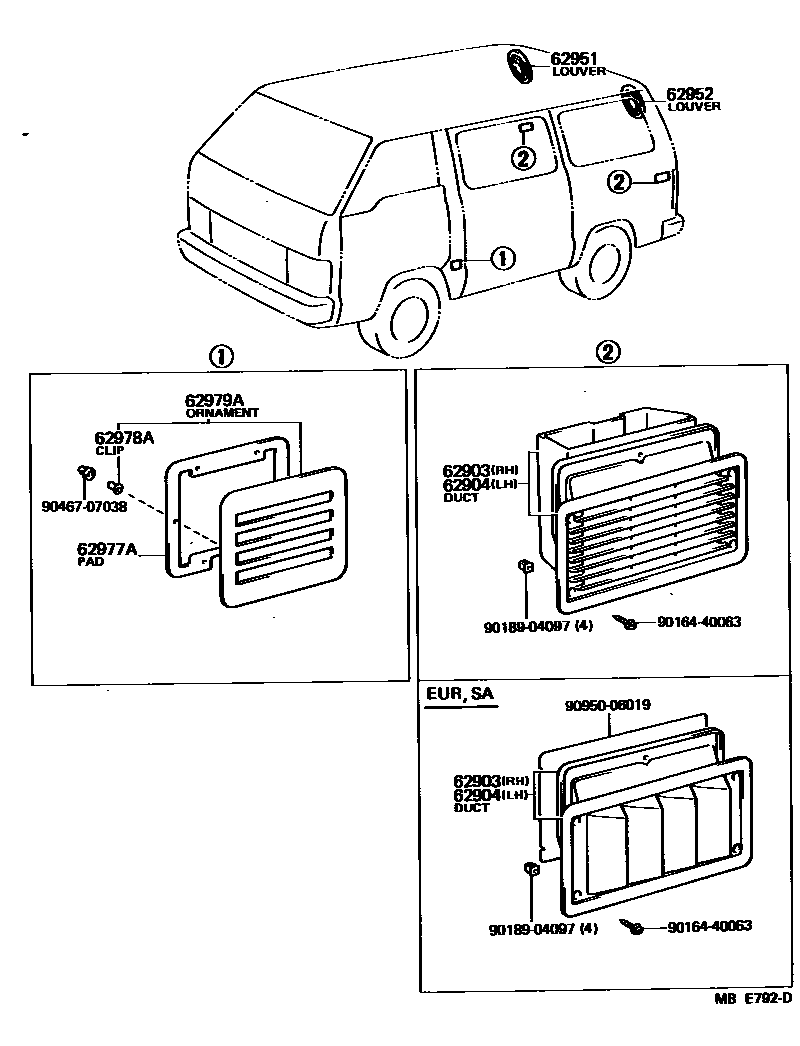

REAR VENTILATOR & ROOF VENTILATOR

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main55870-95J00iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

main55870-95J01iYH51..VSG..5H..EUR;LH5#,6#,YH50,53,56,6#..EUR,SA;YH51..(03S,06S,09S,12S)..(EUR,SA)198212-198805

main62930-95J00iYH53,6#198805-198807

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main55860-95J00iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

main55860-95J01iYH51..VSG..5H..EUR;LH5#,6#,YH50,53,56,6#..EUR,SA;YH51..(03S,06S,09S,12S)..(EUR,SA)198212-198807

62951LOUVER, VENT, INNER RH

main55856-95J00iLH5#,6#,7#,YH5#,6#,71..STD198212-198608

62952LOUVER, VENT, INNER LH

main55856-95J00iLH5#,6#,7#,YH5#,6#,71..STD198212-198608

62977APAD, COOL AIR ORNAMENT

main17977-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

62978ACLIP, COOL AIR ORNAMENT

main90468-04110×4iLH5#,6#,71,YH5#,6#,7#198502-198807

main90468-05106×4iLH5#,6#,7#,YH5#,6#,71198212-198502

62979AORNAMENT, COOL AIR

main17979-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main17979-95J01iLH5#,6#,71,YH5#,6#,7#198508-198807

9016440063

main90164-40063

9018904097

main90189-04097

9046707038

main90467-07038

9095006019

main90950-06019

11 parts on this diagram · 1 diagram in section
