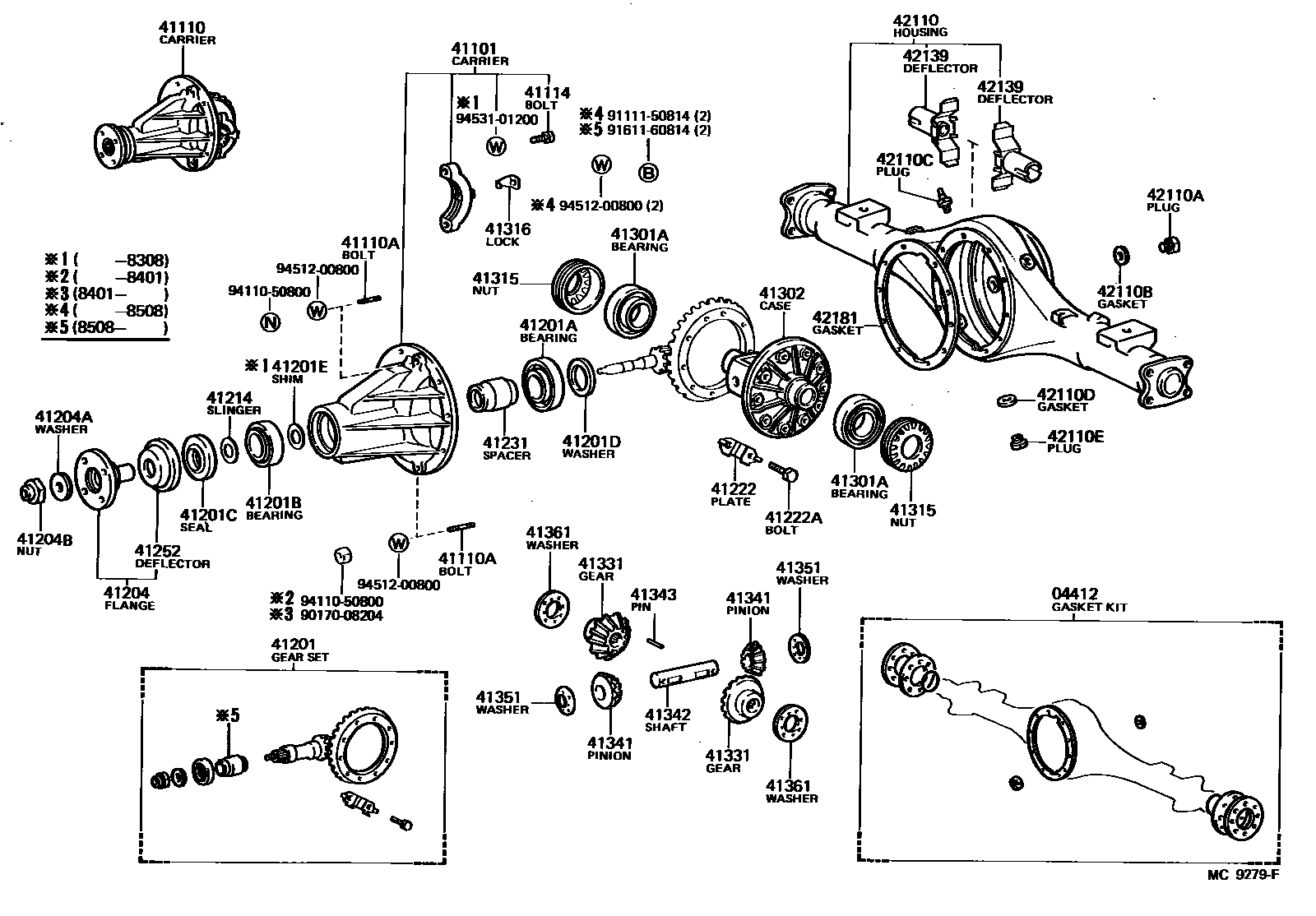

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iLH56,66,YH56,66198608-198708

main04412-26010iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main04412-35010iLH5#,6#,7#,YH5#,6#,71198212-198508

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35020iLH50,60..GEN198306-198308

main41101-35030iLH51,61,71,YH5#,6#,71..MTM198508-198608

sub41101-35031

sub90116-08329

main41101-35040iYH53..5H198608-198807

sub41101-35041

sub90116-08329

main41101-61010iYH5#,6#,71..MTM198306-198308

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26040iYH51,61,71198212-198308

*AXC=G282,*FGR=43:10

sub41110-26041

sub90116-08329

sub90116-08334

main41110-26050iLH50,60,70..5H198212-198306

*AXC=G252,*FGR=41:9

sub41110-26051

sub90116-08329

sub90116-08334

main41110-26070iYH51,61..4HC198401-198508

*AXC=G145,*FGR=39:8,W/LSD

main41110-26071iYH56,66198612-198708

*FGR=39:8=4.875,*AXC=G145,*FGR=39:8,W/LSD

sub41110-26072

sub90116-08329

sub90116-08334

main41110-26080iLH51,61..4HC198401-198508

*AXC=G165,*FGR=37:7,W/LSD

main41110-26081iLH51,61..4HC..N1198508-198708

*FGR=37:7=5.286,*AXC=G165,*FGR=37:7,W/LSD

sub41110-26082

sub90116-08329

sub90116-08334

main41110-26100iLH56,66198608-198708

*FGR=41:8=5.125,*AXC=G152,*FGR=41:8

sub41110-26101

sub90116-08329

sub90116-08334

main41110-26110iLH56,66198608-198708

*FGR=41:8=5.125,*AXC=G155,*FGR=41:8

sub41110-26111

sub90116-08329

sub90116-08334

main41110-35032iLH50,60..GEN198306-198308

*AXC=G142,*FGR=39:8

sub41110-35081

main41110-35042iLH50,YH50..4HC198212-198308

*AXC=G162,*FGR=37:7

sub41110-35046

sub90116-08329

sub90116-08334

main41110-35043iLH50,60..GEN198308-198401

*AXC=G162,*FGR=37:7

main41110-35044iLH51,61..4HC198508-198708

*FGR=37:7=5.285,*AXC=G162,*FGR=37:7

sub41110-35045

sub90116-08329

sub90116-08334

main41110-35083iLH61..4HC..ARL198707-198807

*FGR=39:8=4.875,*AXC=G142,*FGR=39:8

sub41110-35084

sub90116-08329

main41110-35170iYH51,61,71198308-198401

*AXC=G282,*FGR=43:10

main41110-35171iLH51,61,71..5H..(ARL,EUR)198508-198708

*FGR=43:10=4.300,*AXC=G282,*FGR=43:10

main41110-35180iLH50,60,70..5H..(ARL,EUR)198308-198401

*AXC=G252,*FGR=41:9

main41110-35181iYH51,61..LHD..4H..GEN198608-198708

*FGR=41:9=4.555,*AXC=G252,*FGR=41:9,CHINA SPEC

main41110-35190iYH51,61..4HC198401-198508

*AXC=G142,*FGR=39:8

main41110-35191iYH53..SA198608-198612

*FGR=39:8=4.875,*AXC=G142,*FGR=39:8

main41110-35211iYH63..SA198612-198807

*FGR=43:10=4.300,*AXC=G282,*FGR=43:10

sub41110-35212

sub90116-08329

main41110-35221iYH60198612-198807

*FGR=41:9=4.555,*AXC=G252,*FGR=41:9

sub41110-35222

sub90116-08329

main41110-35240iLH51,61,YH61..MTM..EUR198401-198508

*AXC=G285,*FGR=43:10,W/LSD

main41110-35241iLH51,61,YH51,61..MTM..EUR198508-198708

*FGR=43:10=4.300,*AXC=G285,*FGR=43:10,W/LSD

sub41110-35301

main41110-35250iYH50..EUR198401-198508

*AXC=G255,*FGR=41:9,W/LSD

main41110-35251iYH50..N1198508-198608

*FGR=41:9=4.555,*AXC=G255,*FGR=41:9,W/LSD

sub41110-35311

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08179×8iLH5#,6#,7#,YH5#,6#,7#198304-198807

L=36,L=36

main90116-08180×2iLH5#,6#,7#,YH5#,6#,7#198304-198807

L=44,L=44

main90116-08196×8iLH50,60,70,YH50,6#,71198212-198304

L=34,S=14,L=34

sub90116-08333

main90116-08226×2iLH50,60,70,YH50,6#,71198212-198304

S=14 & 14,L=42,L=42

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376×4iLH50,60,70,YH5#,6#,71198212-198308

main90105-12053×4iLH5#,6#,7#,YH5#,6#,7#198308-198807

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29325iLH5#,61,YH50..4HC198308-198508

*AXC=G162,*AXC=G165,*FGR=37:7

main41201-29326iLH51,61..4HC198508-198708

*FGR=37:7,*AXC=G162,*AXC=G165,*FGR=37:7

sub41201-29826

sub41204-35081

sub41214-26011

main41201-29455iYH51,61,71198308-198401

*AXC=G282,*FGR=43:10

main41201-29475iLH50,60,70..5H..(ARL,EUR)198308-198401

*AXC=G252,*FGR=41:9

main41201-29526iLH51,61,71..5H..(ARL,EUR)198508-198708

*FGR=43:10=4.300,*AXC=G282,*FGR=43:10

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29536iYH50,60198508-198608

*FGR=41:9=4.556,*AXC=G252,*AXC=G255,*FGR=41:9

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29735iLH56,66198608-198708

*FGR=41:8=5.125,*AXC=G155,*AXC=G152,*FGR=41:8

sub41201-29736

sub41204-35081

sub41214-26011

main41201-39395iLH5#,6#..GEN198308-198508

*AXC=G142,*FGR=39:8

main41201-39396iLH50,60..GEN198308-198508

*AXC=G142,*FGR=39:8

main41201-39696iLH61..RHD..GEN198707-198807

*FGR=39:8=4.875,*AXC=G142,*FGR=39:8

sub41201-39697

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35044iLH5#,6#,71,YH5#,6#,7#198508-198807

main97609-32307iLH5#,6#,7#,YH5#,6#,71198212-198508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iLH5#,6#,7#,YH5#,6#,71198212-198508

main90366-30022iLH5#,6#,71,YH5#,6#,7#198508-198807

sub90366-30078

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.70,T=1.69-1.71

main90201-35498iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.73,T=1.72-1.74

main90201-35499iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.76,T=1.75-1.77

main90201-35500iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.79,T=1.78-1.80

main90201-35501iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.82,T=1.81-1.83

main90201-35502iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.85,T=1.84-1.86

main90201-35503iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.88,T=1.87-1.89

main90201-35504iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.91,T=1.90-1.92

main90201-35505iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.94,T=1.93-1.95

main90201-35506iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=1.97,T=1.96-1.98

main90201-35507iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.00,T=1.99-2.01

main90201-35508iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.03,T=2.02-2.04

main90201-35509iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.06,T=2.05-2.07

main90201-35510iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.09,T=2.08-2.10

main90201-35511iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.12,T=2.11-2.13

main90201-35512iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.15,T=2.14-2.16

main90201-35513iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.18,T=2.17-2.19

main90201-35514iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.21,T=2.20-2.20

main90201-35515iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.24,MARK 01,T=2.23-2.25

main90201-35516iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.27,MARK 02,T=2.26-2.28

main90201-35517iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.30,MARK 03,T=2.29-2.31

main90201-35518iLH5#,6#,7#,YH5#,6#,7#198212-198807

OD=47,T=2.33,MARK 04,T=2.32-2.34

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-30035×2iLH50,60,70,YH5#,6#,71198212-198308

T=0.25,T=0.23-0.27

main90564-30063×2iLH50,60,70,YH5#,6#,71198212-198308

T=0.43-0.47

main90564-30193×2iLH50,60,70,YH5#,6#,71198212-198308

T=0.28-0.32

main90564-30194×2iLH50,60,70,YH5#,6#,71198212-198308

T=0.33-0.37

main90564-30195×2iLH50,60,70,YH5#,6#,71198212-198308

T=0.38-0.42

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-26011iLH50,60,70,YH5#,6#,71198212-198308

main41204-35040iLH5#,6#,7#,YH5#,6#,7#198308-198807

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLH5#,6#,7#,YH5#,6#,7#198212-198807

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLH5#,6#,7#,YH5#,6#,7#198212-198807

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iLH5#,6#,7#,YH5#,6#,7#198212-198807

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iLH5#,6#,7#,YH5#,6#,7#198212-198807

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-39010iLH50,60,70,YH5#,6#,71198212-198308

main41231-40010iLH5#,6#,7#,YH5#,6#,71198308-198508

main41231-40011iLH5#,6#,71,YH5#,6#,7#198508-198807

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-30010iLH5#,6#,7#,YH5#,6#,71198212-198408

main41252-35010iLH5#,6#,71,YH5#,6#,7#198408-198807

sub41252-35020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

main90368-50024×2iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

W/LSD

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

W/LSD

sub41302-35040

main41311-40020iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35010×2iLH5#,6#,7#,YH5#,6#,71198212-198408

main41331-35011×2iLH5#,6#,71,YH5#,6#,7#198408-198807

main41331-35030×2iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

W/LSD

sub41039-34070

41341PINION, REAR DIFFERENTIAL

main41341-35010×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

W/LSD

sub41341-14041

main41341-35020×2iLH5#,6#,71,YH5#,6#,7#198408-198807

main41341-39020×2iLH5#,6#,7#,YH5#,6#,71198212-198408

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLH5#,6#,7#,YH5#,6#,7#198212-198807

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iLH5#,6#,7#,YH5#,6#,7#198212-198807

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30051×2iLH5#,6#,7#,YH5#,6#,71198212-198408

main41351-30052×2iLH5#,6#,71,YH5#,6#,7#198408-198807

main41351-30060×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

W/LSD

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-40021×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.6,T=1.57-1.63

main41362-40021×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.7,T=1.67-1.73

main41363-40021×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.8,T=1.77-1.83

main90564-50001×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

T=0.15,W/LSD,T=0.15

main90564-50002×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

T=0.20,W/LSD,T=0.20

main90564-50003×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

T=0.25,W/LSD,T=0.25

main90564-50004×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

T=0.30,W/LSD,T=0.30

main90564-50005×4iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR198401-198708

T=0.35,W/LSD,T=0.35

42110HOUSING ASSY, REAR AXLE

main42110-26150iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198508

main42110-26151iLH51,61,71,YH51,53,60,61,63,73..ARL,GEN,SA198608-198807

main42110-26160iLH6#,YH50,6#..M1198212-198508

main42110-26161iLH61,YH51,61..J..M1198508-198708

main42110-26220iLH56,66,YH56,66198608-198708

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLH5#,6#,71,YH5#,6#,7#198508-198807

main90341-18049iLH5#,6#,7#,YH5#,6#,71198212-198508

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iLH5#,6#,7#,YH5#,6#,7#198212-198807

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLH5#,6#,7#,YH5#,6#,7#198212-198807

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iLH5#,6#,7#,YH5#,6#,7#198212-198807

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iLH5#,6#,7#,YH5#,6#,7#198212-198807

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-40010×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-35010iLH5#,6#,7#,YH5#,6#,71198212-198508

main42181-60020iLH51,61,71,YH5#,6#,7#198508-198807

9017008204

main90170-08204

9111150814

main91111-50814

9161160814

main91611-60814

9411050800

main94110-50800

9451200800

main94512-00800

9453101200

main94531-01200

43 parts on this diagram · 2 diagrams in section
