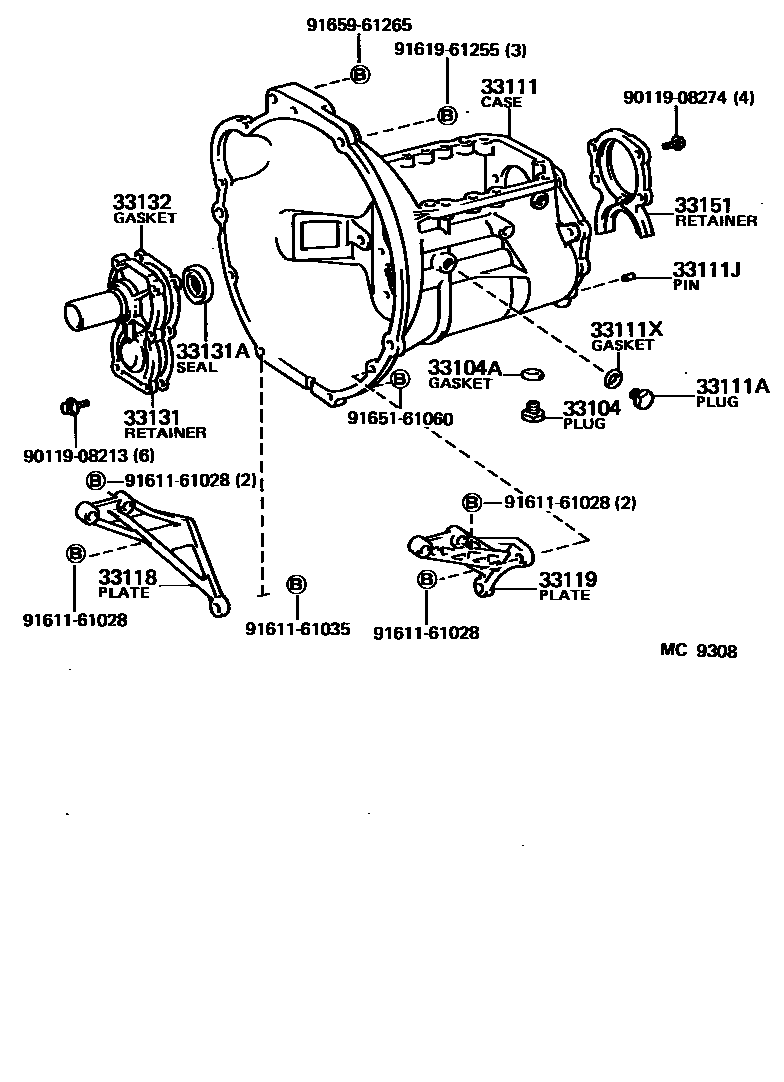

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLH56,66,YH56,66198608-198708

main90341-18057iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM198212-198807

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iLH5#,6#,7#,YH5#,6#,71..MTM198212-198408

main90430-18008iLH5#,6#,71,YH5#,6#,7#..MTM198408-198807

33111CASE, MANUAL TRANSMISSION

main33101-26010iLH51,61,71,YH5#,6#,71..MTM198401-198602

main33101-26030iLH56,66,YH56,66198608-198708

sub33101-26H01

main33101-26900iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198602-198804

main33101-28020iYH6#198804-198807

sub33101-35060

sub90341-18032

main33111-26051iYH5#,6#,71..MTM198212-198401

main33111-35042iLH50,60,70..5H198212-198401

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLH50,60,70..5H198212-198401

main90341-18006iLH51,56,61,66,71,YH5#,6#,7#..MTM198212-198807

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iLH5#,6#,7#,YH5#,6#,71..MTM198212-198408

main90430-18008iLH5#,6#,71,YH5#,6#,7#..MTM198408-198807

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH5#,6#,7#..MTM198212-198708

main33118-28010iYH5#,6#,71..MTM198212-198608

main33118-36031iYH5#,6#,73..MTM198608-198807

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLH50,51,60,61,7#..5H198212-198708

main33119-26010iLH56,66198608-198708

sub33119-25060

main33119-28010iYH5#,6#,71..MTM198212-198608

main33119-36030iYH5#,6#,73..MTM198608-198807

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

main33131-35022iLH50,60,70,YH5#,6#,71..MTM198212-198401

main33131-35030iLH56,66,YH56,66198608-198708

sub33131-35031

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM198212-198807

main90311-32012iLH56,66,YH56,66198608-198708

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

main33132-35022iLH50,60,70,YH5#,6#,71..MTM198212-198401

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-28010iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

main33151-35011iLH50,60,70,YH5#,6#,71..MTM198212-198401

main33151-35020iLH56,66,YH56,66198608-198708

9011908213

main90119-08213

9011908274

main90119-08274

9161161028

main91611-61028

9161161035

main91611-61035

9161961255

main91619-61255

9165161060

main91651-61060

9165961265

main91659-61265

19 parts on this diagram · 7 diagrams in section
