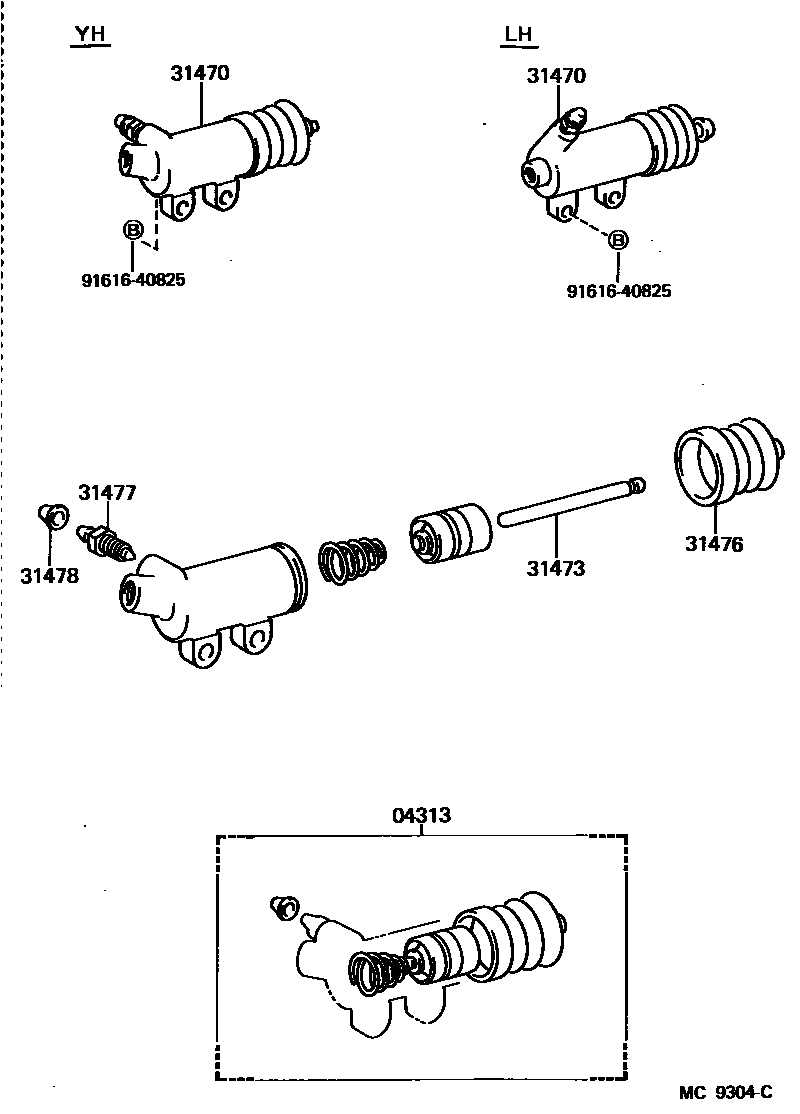

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLH56,66198608-198708

sub31470-35110

main31470-26050iLH50,60,70..5H198212-198401

main31470-30220iLH51,61,71..5H198401-198708

sub31470-30221

main31470-35050iYH50,51,53,60,61,63,7#..MTM198212-198807

sub31470-30260

main31470-35070iYH56,66198612-198708

sub31470-35071

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLH51,56,61,66,71,YH5#,6#,7#..MTM198212-198807

main31473-35040iLH50,60,70..5H198212-198401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

9161640825

main91616-40825

7 parts on this diagram · 1 diagram in section
