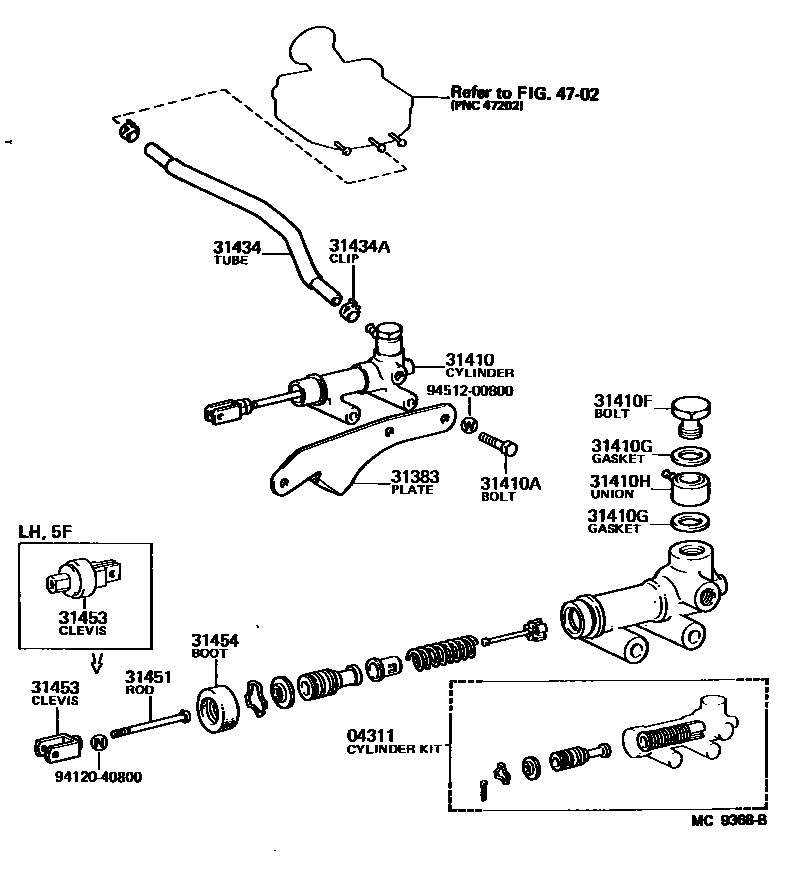

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iYH5#,6#,7#..MTM198212-198704

main04311-14012iYH5#,6#,73..MTM198704-198807

sub04311-14013

main04311-14021iLH5#,6#,71..MTM198704-198807

sub04311-14022

main04311-30080iLH5#,6#,7#..MTM198212-198708

sub04311-14020

31383PLATE, PEDAL SUPPORT SHAFT SET

main55105-95J00iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26090iYH5#,6#,7#..MTM198212-198704

main31420-26091iYH5#,6#,73..MTM198704-198710

main31420-26092iYH53,6#198710-198807

main31420-26101iLH5#,6#,7#..MTM198212-198708

main31420-26102iLH5#,6#,71..MTM198704-198807

sub31420-26103

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865×2iLH5#,6#,7#,YH5#,6#,71..MTM198212-198508

main91611-60865×2iLH5#,6#,71,YH5#,6#,7#..MTM198508-198807

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242×2iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31434TUBE, CLUTCH RESERVOIR

main31434-26100iLH5#,6#,7#,YH5#,6#,71..RHD..MTM198212-198508

main31434-26110iLH50,51,60,61,YH50,51,60,61..LHD..MTM198212-198708

main31434-26120iLH51,61,71,YH50,51,53,60,61,63,7#..RHD..MTM198508-198807

main31434-26150iLH56,66,YH56,66198608-198708

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iYH5#,6#,7#..MTM198212-198704

main31451-30060iLH5#,6#,7#..MTM198212-198708

main31451-30120iYH5#,6#,73..MTM198704-198807

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30041iLH5#,6#,7#..MTM198212-198708

main31404-30050iLH5#,6#,71..MTM198706-198807

sub31404-30051

main31453-22010iYH5#,6#,7#..MTM198212-198704

main31453-35010iYH5#,6#,73..MTM198704-198807

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

4702

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
