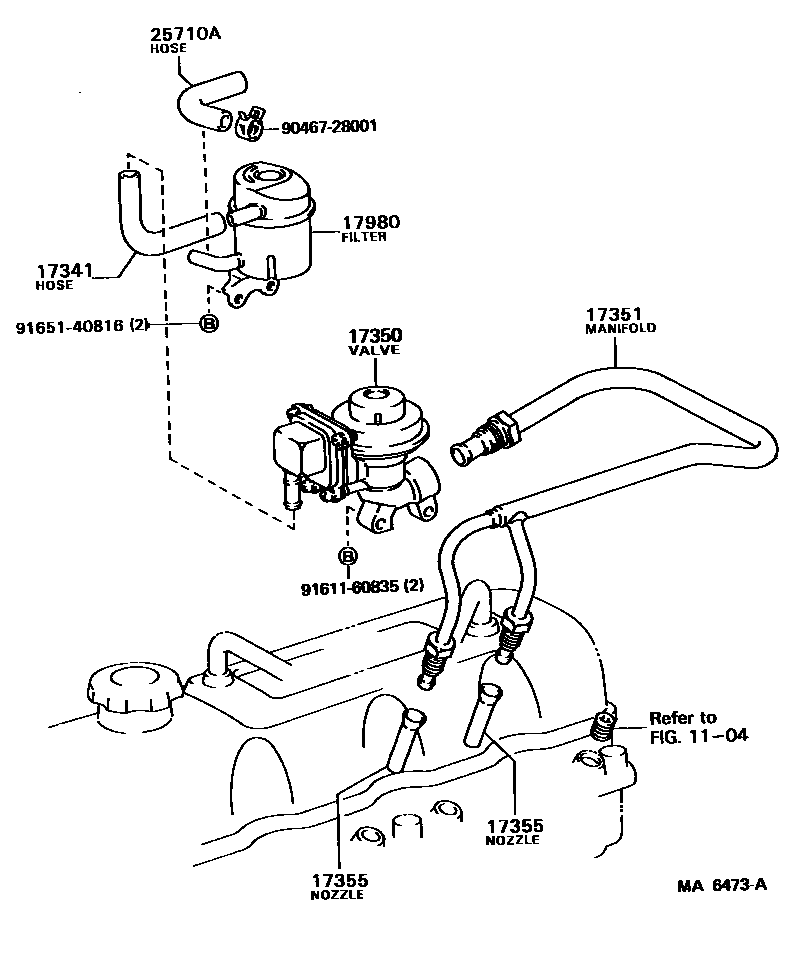

MANIFOLD AIR INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010198212-198708

17350VALVE ASSY, REED

main17350-71030198212-198311

main17350-71031198311-198708

17351MANIFOLD, AIR INJECTION

main17351-71020198212-198708

17355NOZZLE, AIR INJECTION

main17355-71010198212-198708

17980FILTER ASSY, AIR SUCTION

main17980-71011198212-198401

main17980-71012198612-198708

main17980-71030198305-198401

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main17342-72010198212-198401

main17342-72011198612-198708

9046728001

main90467-28001

9161160835

main91611-60835

9165140816

main91651-40816

10 parts on this diagram · 1 diagram in section
