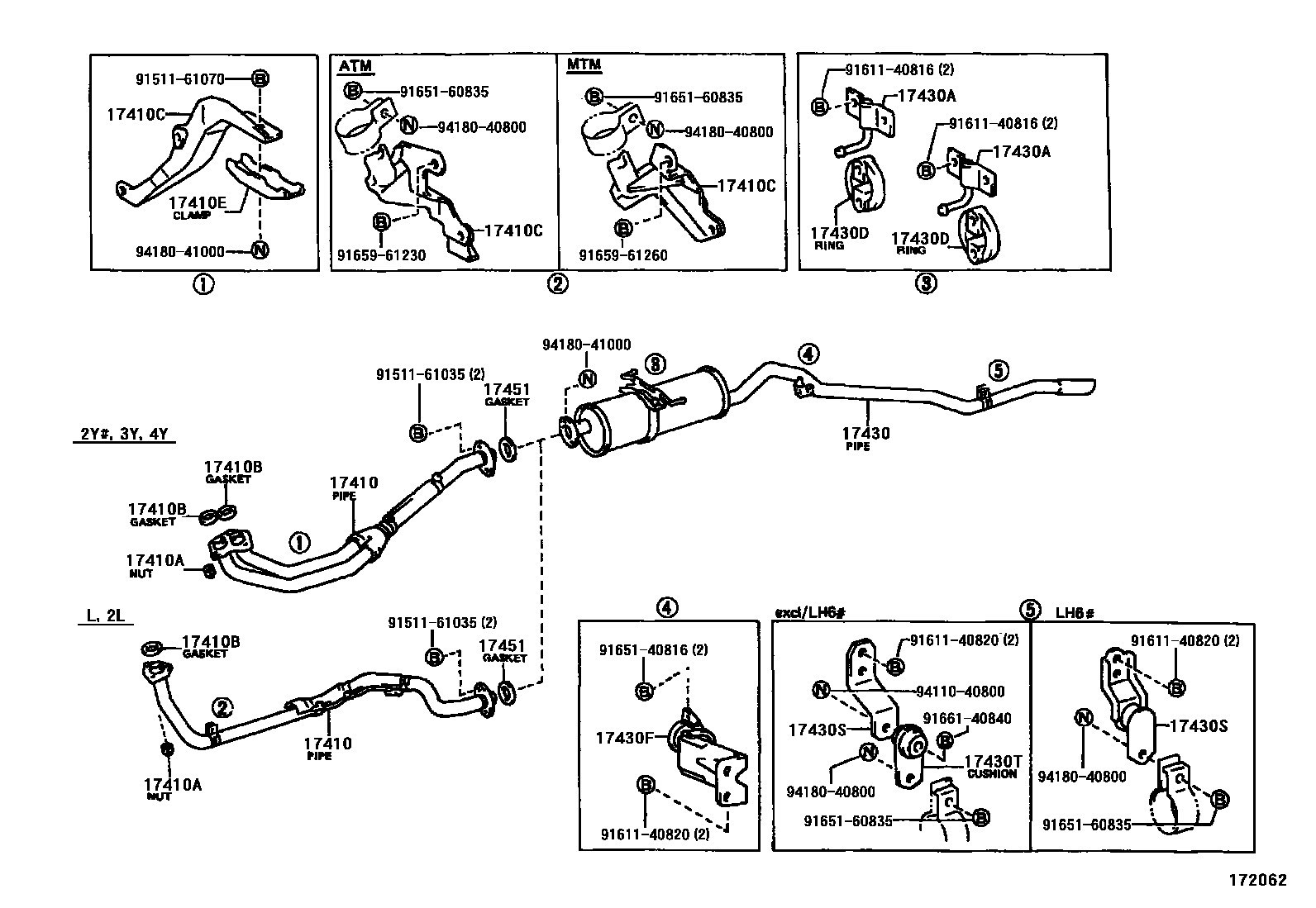

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-54200iL..LH50,60,70..5H198212-198401

main17410-54201i2L..LH51,61,71..5H198401-198708

main17410-54210iL,2L..LH50,51,61..4HC198212-198708

main17410-54480i2L..LH56,66198608-198708

main17410-71010i2Y#..YH50,60..MTM198212-198807

main17410-71020i2Y#..YH50..4HC198212-198401

main17410-71030i3Y,4Y..YH51,53,61,63,7#..MTM198212-198807

main17410-71040i3Y,4Y..YH51,53,61,63..ATM198401-198807

main17410-71140i4Y..YH56,66198612-198708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3iL,2L,2Y#,3Y..LH5#,6#,7#,YH5#,6#,71198212-198508

main90179-10070×3i2L,2Y,3Y,4Y..LH5#,6#,71,YH5#,6#,71198508-198807

17410BGASKET, EXHAUST PIPE

main90917-06001×2i2Y#,3Y,4Y..YH5#,6#,71198212-198807

main90917-06004iL,2L..LH5#,6#,7#198212-198708

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17506-54070iL,2L..LH5#,61..4HC198212-198508

main17506-54071i2L..LH51,61..4HC198508-198708

main17571-54140iL..LH50,60,70..5H198212-198401

main17571-54141i2L..LH5#,6#,71..MTM198401-198708

main17571-71020i2Y#,3Y..YH5#,6#,71198212-198401

main17571-71021i2Y,3Y,4Y..YH50,51,53,60,61,63,71198401-198807

main17571-71060i4Y..YH56,66198612-198708

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i2Y#,3Y,4Y..YH5#,6#,71198212-198807

17430PIPE ASSY, EXHAUST, TAIL

main17430-54610i2L..LH56198608-198705

main17430-54611i2L..LH56198705-198708

main17430-54620i2L..LH66198608-198705

main17430-54621i2L..LH66198705-198708

main17430-71050iL,2Y#..LH50,YH50..ARL,EUR198212-198401

main17430-71051i2Y..YH50,60..RHD..COM..GEN; 2Y..YH50..RHD..VSP..GEN198407-198508

SINGAPORE SPEC

main17430-71052i2Y,3Y..YH50,51..RHD..VSP..GEN; 2Y..YH50..RHD..12S; 3Y..YH51..4HC..03S..N1;2L,2Y,4Y..LH51,YH50,53..ARL,EUR;3Y..YH51..(4FC,4H,5F,5H)..(ARL,EUR)198508-198708

SINGAPORE SPEC

main17430-71060iL,2Y,3Y..LH60,YH6#..ARL,EUR198212-198401

main17430-71061i2L..LH61..ARL,EUR198401-198708

main17430-71080iL,3Y..LH70,YH71198212-198401

main17430-71081i2L,3Y,4Y..LH71,YH7#198401-198807

main17430-71100iL,2Y,3Y..LH50,YH5#..GEN,SA198212-198401

main17430-71101i2L,2Y,3Y,4Y..LH51,YH50,51,53..GEN,SA198401-198807

main17430-71110iL,2Y,3Y..LH60,YH6#..GEN,SA198212-198401

main17430-71111i3Y..YH61..V4D..VSG..03S..N1198405-198410

*SA

main17430-71170i3Y,4Y..YH61,63..ARL,EUR198401-198708

main17430-71210i4Y..YH56198612-198705

main17430-71211i4Y..YH56198705-198708

main17430-71220i4Y..YH66198612-198705

main17430-71221i4Y..YH66198705-198708

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17563-54090i2L,4Y..LH56,YH56198608-198708

RH

main17563-54100i2L,4Y..LH66,YH66198608-198708

LH

main17573-54060i2L,4Y..LH56,YH56198608-198708

LH

main17573-54070i2L,4Y..LH66,YH66198608-198708

RH

main17573-71070iL,2L,2Y#,3Y,4Y..LH50,51,60,61,7#,YH50,51,53,60,61,63,71198212-198807

RH

main17573-71080iL,2L,2Y#,3Y,4Y..LH50,51,60,61,7#,YH50,51,53,60,61,63,71198212-198807

LH

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-15010×2iL,2L,2Y#,3Y,4Y..LH5#,6#,7#,YH5#,6#,71198212-198807

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17565-71010iL,2L,2Y#,3Y..LH5#,6#,7#,YH5#,6#,71198212-198506

main17565-71050i2L,2Y,3Y,4Y..LH51,61,71,YH50,51,53,60,61,63,71198506-198807

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17566-71030iL,2Y#,3Y..LH50,70,YH5#,6#,71198212-198401

main17566-71040iL..LH60198212-198401

main17566-71041i2L..LH61..ARL,EUR198401-198508

main17566-71050i2L,2Y,3Y..LH51,61,YH5#,6#..GEN,SA; 3Y..YH51..N1;3Y..YH51..4H..ARL;2L,2Y,3Y..LH51,71,YH50,61,71..ARL,EUR198401-198508

main17575-54030i2L..LH56,66198705-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08004iL,2Y#,3Y..LH50,70,YH5#,6#,71198212-198401

main90917-08009i2L,2Y,3Y..LH51,61,YH5#,6#..GEN,SA; 3Y..YH51..N1;3Y..YH51..4H..ARL;2L,2Y,3Y..LH51,71,YH50,61,71..ARL,EUR198401-198508

17451GASKET, EXHAUST PIPE

main90917-06004iL,2L,2Y#,3Y,4Y..LH5#,6#,7#,YH5#,6#,71198212-198807

9151161035

main91511-61035

9151161070

main91511-61070

9161140816

main91611-40816

9161140820

main91611-40820

9165140816

main91651-40816

9165160835

main91651-60835

9165961230

main91659-61230

9165961260

main91659-61260

9166140840

main91661-40840

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

24 parts on this diagram · 3 diagrams in section
