V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132iL,2L..LH50,51,60,61,7#198212-198708

DOUBLE V BELTS

main90916-02162i2L..LH56,66198608-198708

DOUBLE V BELTS

main99364-50830i2Y#,3Y,4Y..YH5#,6#,71198212-198807

44310ABELT, V(FOR VANE PUMP)

main90916-02080iLH71198401-198508

main99332-00830iLH51,61..EUR198508-198708

L=830

main99332-00885iLH56,66198608-198708

L=885

main99332-01040iYH50,60..LHD..GEN198508-198608

L=1040

main99332-01055iYH51,71..05S,15S198401-198807

L=1055

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00905iYH50,51,60,61,63..V..GEN198411-198708

L=905,IDLE PULLEY:OD=80

main99322-00910iYH61..ARL;YH51..4H..ARL198212-198508

IDLE PULLEY:OD=90

main99322-00930iYH7#198508-198807

L=930

main99322-00930iYH50,51,60,61..COM..GEN198411-198708

L=930,IDLE PULLEY:OD=80

main99322-00940iYH50,60..COM..GEN198212-198411

IDLE PULLEY:OD=90

main99322-00940iYH71198401-198508

main99322-01250iLH51,61..GEN198411-198508

L=1250,IDLE PULLEY:OD=80

main99322-01250iLH51,61,71..ARL,GEN198508-198708

L=1250

main99322-01260iLH51,61..ARL198212-198508

IDLE PULLEY:OD=90

main99322-01260iLH71198401-198508

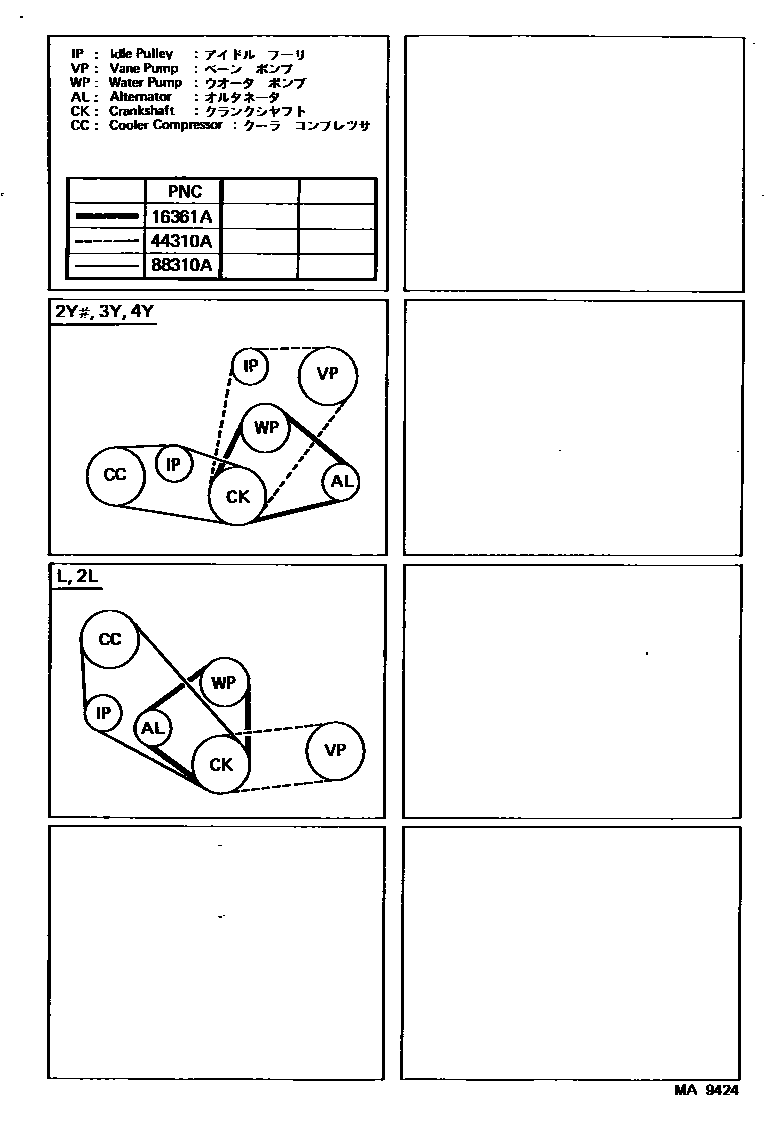

3 parts on this diagram · 1 diagram in section
