SHORT BLOCK ASSEMBLY

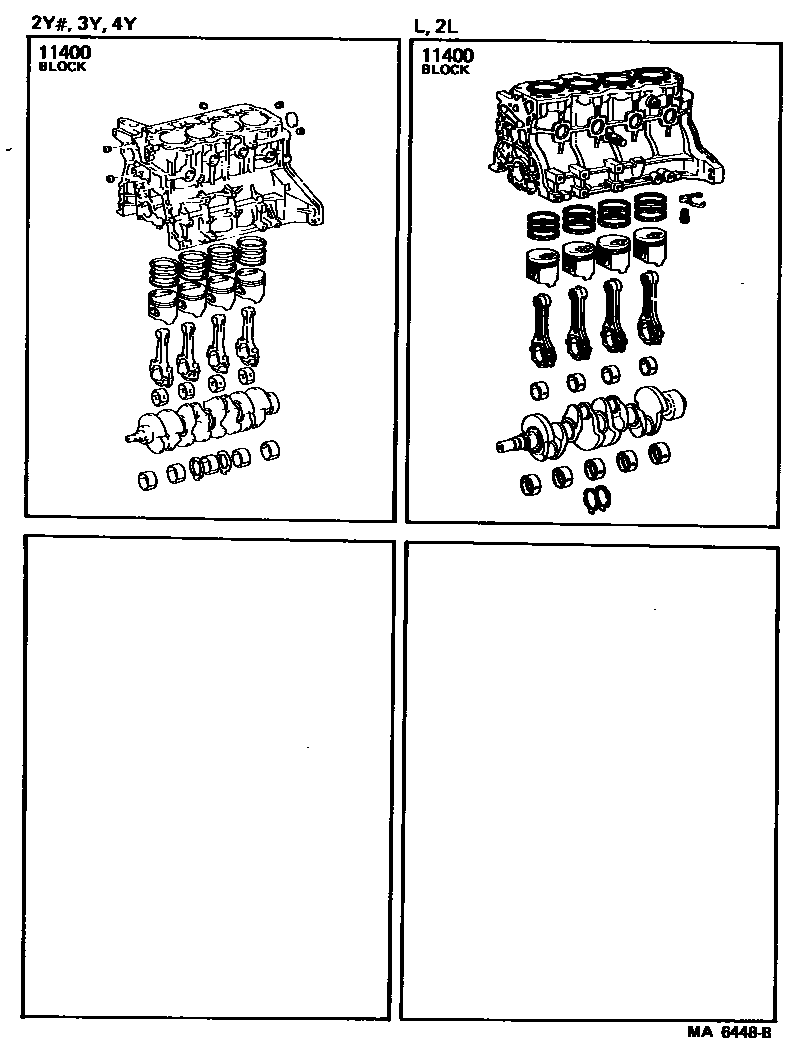

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54013i198304-198401

main11400-54021i198212-198304

main11400-54060i198401-198407

main11400-54061i198407-198708

main11400-72030i198212-198502

main11400-72031i198502-198608

main11400-73020i198212-198502

main11400-73021i198502-198708

main11400-73060i198608-198807

1 parts on this diagram · 1 diagram in section
