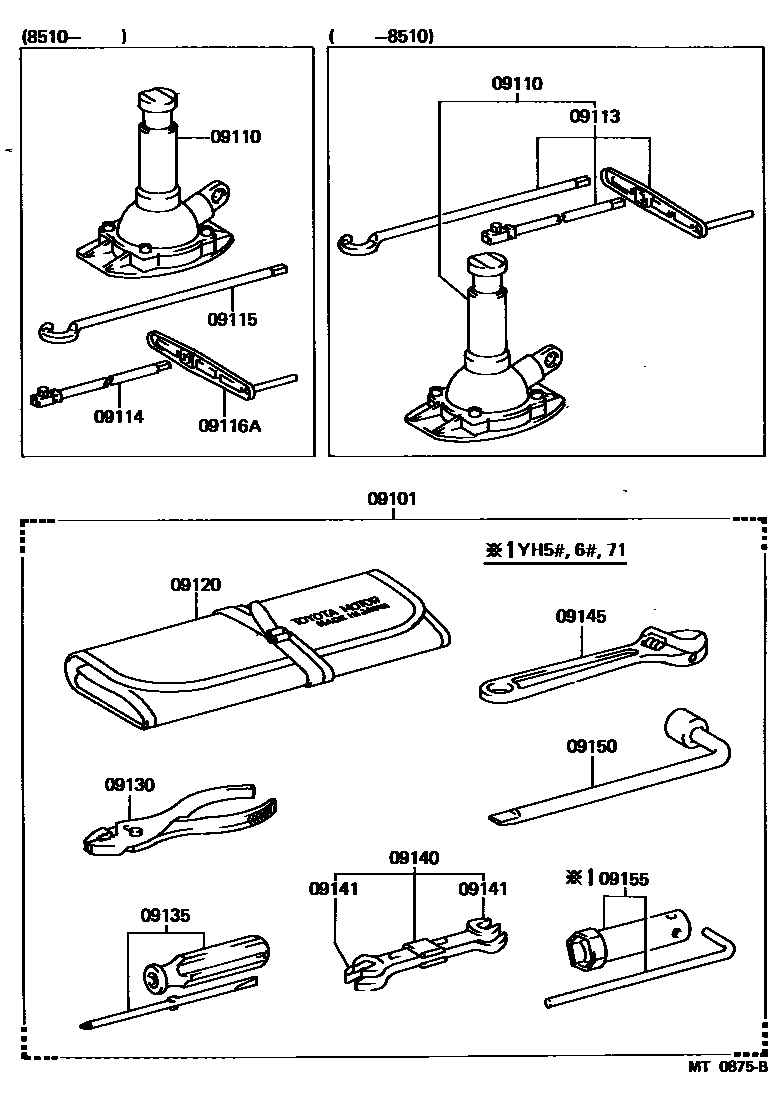

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26190iLH5#,6#,7#198212-198708

main09101-26192iYH5#,6#,7#198212-198807

09110JACK ASSY

main09110-25070iYH51..(4FC,4H,5F)..ARL;LH51,61,71,YH53,61,63,7#..ARL198601-198611

main09110-26021iYH51..(03S,06S,09S)..N1;LH5#,6#,7#,YH50,6#,71..ARL,EUR;YH51..(4FC,4H,5F,5H)..(ARL,EUR)198212-198510

main09110-26031iLH5#,6#,YH5#,6#..GEN,SA198212-198510

main09110-26060iLH51,61,71,YH53,63,73..ARL198611-198708

main09111-25070iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198601-198611

main09111-26050iLH56,66,YH56,66198611-198708

main09111-26070iLH51,61,YH51,61..EUR198611-198708

main09111-26080iLH51,61,YH51,53,60,61,63198611-198807

main09111-27030iLH51,61,YH5#,6#..GEN,SA198510-198611

main09111-27060iLH56,66198608-198611

09113HANDLE, JACK

main09113-25050iYH51..(03S,06S,09S)..N1;LH5#,6#,7#,YH50,6#,71..ARL,EUR;YH51..(4FC,4H,5F,5H)..(ARL,EUR)198212-198510

main09113-25060iLH5#,6#,YH5#,6#..GEN,SA198212-198510

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR);LH5#,6#,71,YH50,53,56,61,63,66,7#..ARL,EUR198510-198708

main09114-35020iLH51,61,YH50,51,53,60,61,63..GEN,SA198510-198708

main09114-60050iYH53,6#198708-198807

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-25030iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..ARL,EUR198510-198708

sub09115-35040

main09115-60020iLH56,66,YH56,66198608-198708

09116ALEVER, JACK HANDLE

main09116-35041iLH5#,6#,71,YH5#,6#,7#198510-198807

09120BAG, TOOL

main09120-26021iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub09120-35170

09130PLIERS

main99913-11500iLH5#,6#,7#,YH5#,6#,7#198212-198807

09135DRIVER, SCREW

main99915-10700iLH5#,6#,7#,YH5#,6#,7#198212-198807

09140SPANNER SET

main09140-27010iLH5#,6#,7#,YH5#,6#,7#198212-198807

09141SPANNER

main99914-11012iLH5#,6#,7#,YH5#,6#,7#198212-198807

10 X 12,10X12

main99914-11417iLH5#,6#,7#,YH5#,6#,7#198212-198807

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iLH5#,6#,7#,YH5#,6#,71198212-198605

main99911-11200iLH5#,6#,71,YH5#,6#,7#198605-198807

09150WRENCH, HUB NUT BOX

main09150-35020iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-41010iYH5#,6#,7#198212-198807

14 parts on this diagram · 1 diagram in section
