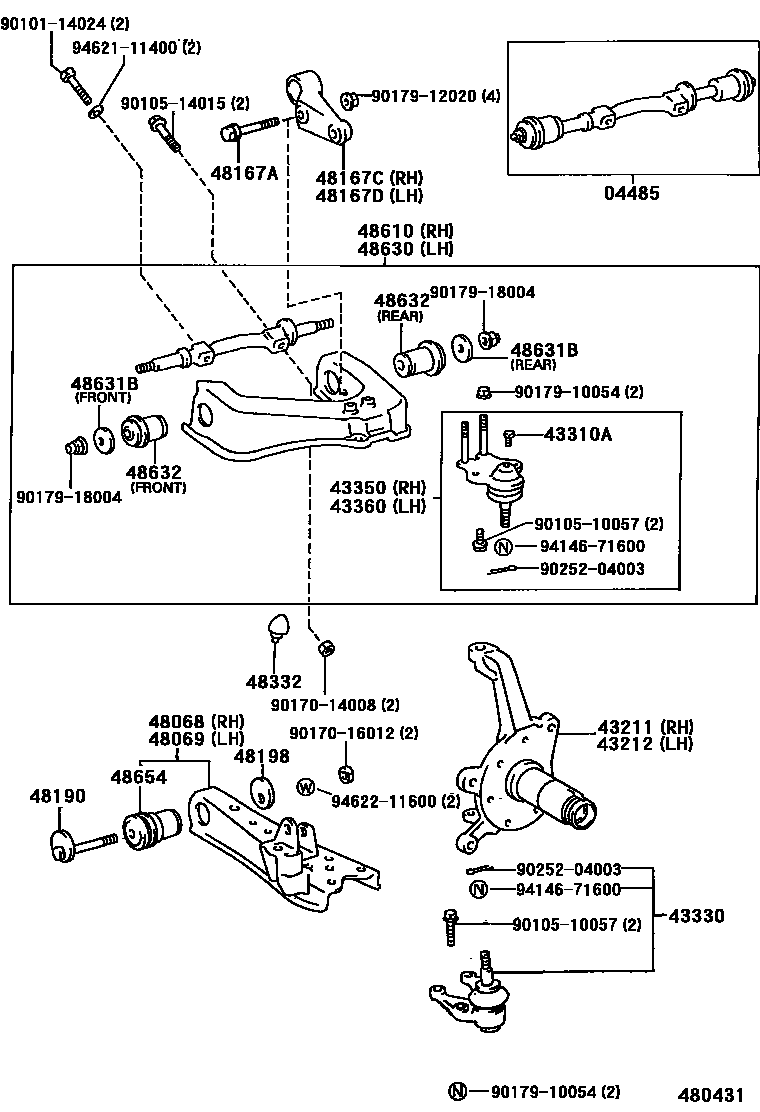

FRONT AXLE ARM & STEERING KNUCKLE
04485SHAFT KIT, UPPER SUSPENSION ARM
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43310APLUG (FOR BALL JOINT)
43330JOINT ASSY, LOWER BALL, FRONT
43350JOINT ASSY, FRONT UPPER BALL, RH
43360JOINT ASSY, FRONT UPPER BALL, LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167ABOLT(FOR TORQUE ARM SETTING)
*12-1.25PX98-30
*12-1.25PX34.5-16.5
*12-1.25PX33-23
*12-1.25PX44-22
48167CARM, FRONT SUSPENSION TORQUE, RH
48167DARM, FRONT SUSPENSION TORQUE, LH
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48332BUMPER, FRONT SPRING, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
REAR
FRONT
48654BUSH, LOWER ARM
9010114024
main90101-14024
9010510057
main90105-10057
9010514015
main90105-14015
9017014008
main90170-14008
9017016012
main90170-16012
9017910054
main90179-10054
9017912020
main90179-12020
9017918004
main90179-18004
9025204003
main90252-04003
9414671600
main94146-71600
9462111400
main94621-11400
9462211600
main94622-11600
32 parts on this diagram · 2 diagrams in section
