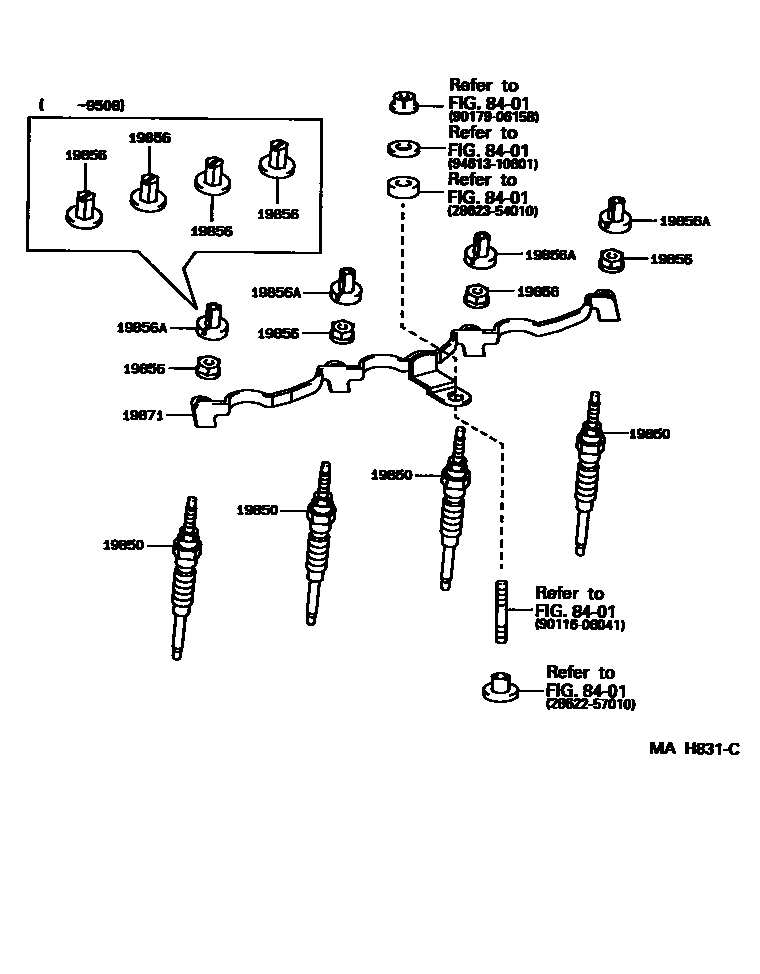

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-05010i2L..LY100..EUR199901

*BV-GV=12V-11V,(L)

main19850-54090i2L..LY100199505-199901

*BV-GV=12V-11V

main19850-54120i2L..LY100..EUR199805-199901

*BV-GV=12V-11V

main19850-54120i2L..LY100..EUR199901

*BV-GV=12V-11V,(J)

main19850-54140i2L..LY100..GEN199901

*BV-GV=12V-11V

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04019i2L..LY100199505-199508

main90179-04030i2L..LY100199508

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024i2L..LY100199508

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i2L..LY100199505

8401

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606041

main90116-06041

9017906158

main90179-06158

9461310601

main94613-10601

10 parts on this diagram · 2 diagrams in section
