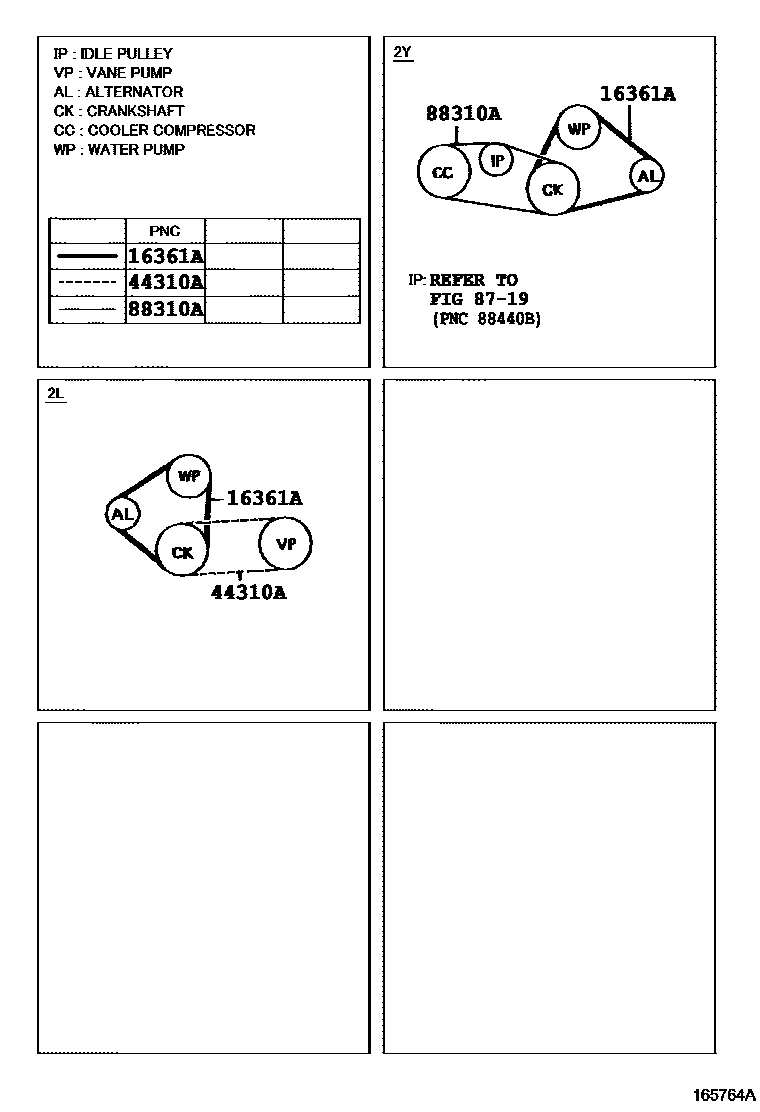

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i2L..LY100199505-199604

main90916-02211i2L..LY100199604

L=1035

main99365-80820i2Y..YY100199505

44310ABELT, V(FOR VANE PUMP)

main99332-00850iLY100..EUR199505-199610

L=850

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10880iYY100..IV199510-199905

L=880

main99332-11265iLY100..RHD..IV199708

L=1265

4 parts on this diagram · 1 diagram in section
