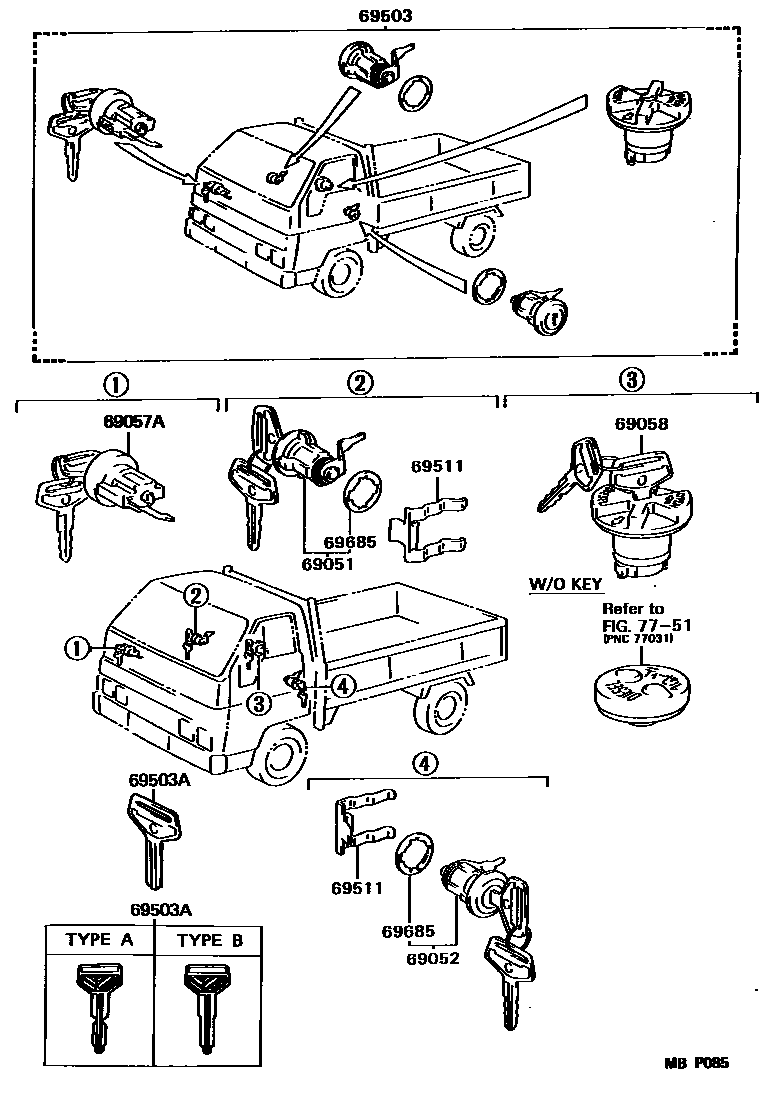

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iLH80,YH81..GEN198708-199505

sub69051-95404

main69051-95404iLH80..GEN..CBU198708-199505

IRELAND SPEC

main69051-95404iLH80,YH81..EUR198708-199505

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iLH80,YH81..ARL,GEN198708-199505

sub69052-95404

main69052-95404iLH80,YH81..EUR198708-199505

main69052-95404iLH80..GEN..CBU198708-199505

IRELAND SPEC

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95412iLH80..ARL;YH81..ARL,GEN198708-199505

sub69057-32100

main69057-95413iLH80..GEN198708-199505

sub69057-95414

main69057-95415iLH80,YH81..ARL,EUR198708-199505

sub69057-32100

main69057-95415iLH80..GEN..CBU198708-199505

IRELAND SPEC

sub69057-32100

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95400iYH81..GEN199309-199505

W(FUEL TANK CAP KEY)

sub69058-60071

main69058-95400iYH81..ARL,GEN198708-199309

sub69058-60071

main69058-95403iLH80..EUR198708-199505

main69058-95403iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FUEL TANK CAP KEY)

main69058-95403iLH80..GEN..CBU199309-199505

IRELAND SPEC

main69058-95404iYH81..EUR198708-199505

sub69058-60021

main69058-95406iLH80..RHD..IV198708-199309

W(FUEL TANK CAP KEY)

main69058-95406iLH80..GEN199309-199505

69503CYLINDER SET, LOCK

main69503-95458iLH80..GEN198708-199309

main69503-95459iLH80..GEN199309-199505

main69503-95459iLH80..GEN198708-199309

W(FUEL TANK CAP KEY)

main69503-95461iLH80..ARL;YH81..ARL,GEN198708-199309

main69503-95462iLH80..ARL198708-199201

W(FUEL TANK CAP KEY)

main69503-95466iYH81..ARL,GEN198708-199309

W(FUEL TANK CAP KEY)

main69503-95466iYH81..GEN199309-199505

main69503-95470iLH80..GEN..CBU198708-199309

IRELAND SPEC

main69503-95470iLH80,YH81..EUR198708-199309

main69503-95471iLH80..EUR199309-199505

IRELAND SPEC

main69503-95471iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FUEL TANK CAP KEY)

main69503-95471iLH80..ARL,EUR198708-199309

W(FUEL TANK CAP KEY)

main69503-95472iYH81..EUR198708-199309

W(FUEL TANK CAP KEY)

main69503-95472iYH81..ARL,EUR199309-199505

69503AKEY, BLANK

main90999-00066iLH80,YH81..ARL,GEN198708-199505

MASTER KEY

sub90999-00085

main90999-00084iLH80,YH81..EUR198708-199505

MASTER KEY,W(*68)

sub90999-00214

main90999-00084iLH80..GEN..CBU198708-199505

MASTER KEY,W(*68),IRELAND SPEC

sub90999-00214

main90999-00086iLH80,YH81..ARL,EUR198708-199505

MASTER KEY

main90999-00086iLH80..GEN..CBU198708-199505

MASTER KEY,IRELAND SPEC

main90999-00129iLH80,YH81..GEN198708-199505

MASTER KEY,W(*68)

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iLH80,YH81198708-199505

69685PAD, LOCK CYLINDER

main69513-32010iLH80,YH81198708-199505

7751

9 parts on this diagram · 1 diagram in section
