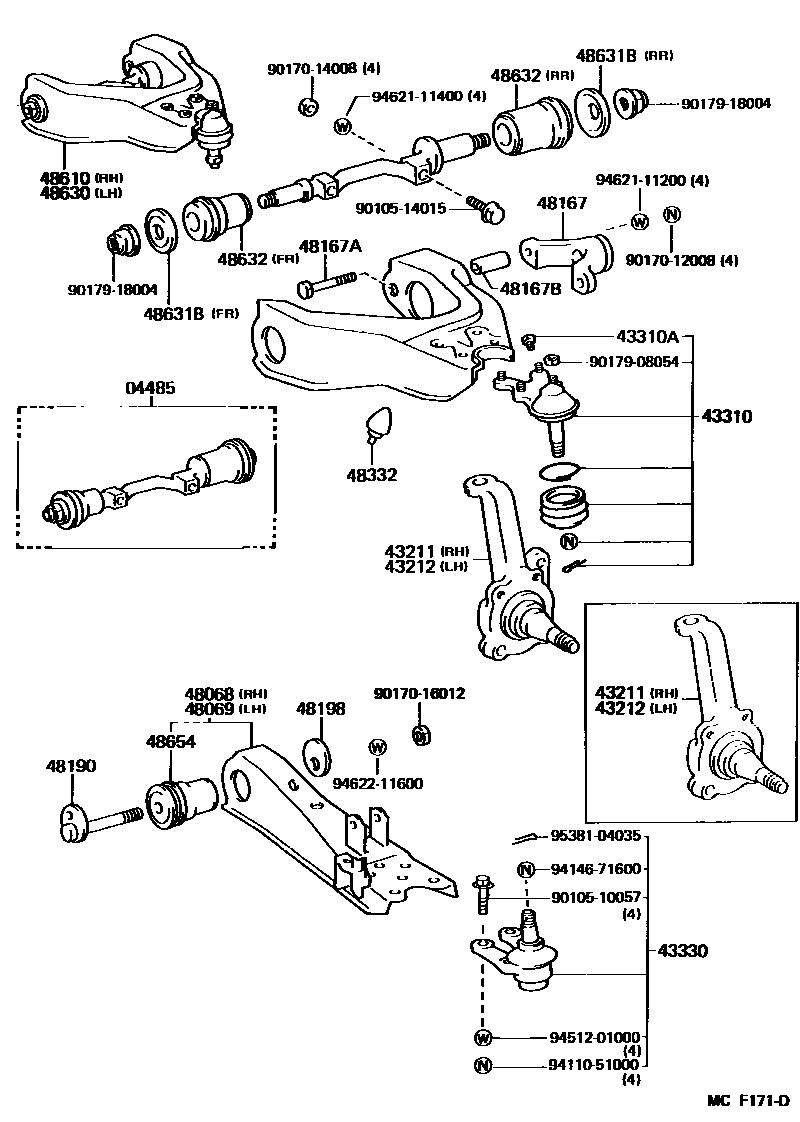

FRONT AXLE ARM & STEERING KNUCKLE
04485SHAFT KIT, UPPER SUSPENSION ARM
43211KNUCKLE, STEERING, RH
W(FRONT DISC BRAKE)
43212KNUCKLE, STEERING, LH
W(FRONT DISC BRAKE)
43310JOINT ASSY, UPPER BALL
RH
LH
43310APLUG (FOR BALL JOINT)
43330JOINT ASSY, LOWER BALL, FRONT
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167ABOLT(FOR TORQUE ARM SETTING)
*12-1.25PX98-30
*12-1.25PX34.5-16.5
48167BTUBE(FOR TORQUE ARM SETTING BOLT)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48332BUMPER, FRONT SPRING, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
RR
FR
RR
FR
48632BUSH, UPPER ARM
FR
RR
48654BUSH, LOWER ARM
9010510057
main90105-10057
9010514015
main90105-14015
9017012008
main90170-12008
9017014008
main90170-14008
9017016012
main90170-16012
9017908054
main90179-08054
9017918004
main90179-18004
9411051000
main94110-51000
9414671600
main94146-71600
9451201000
main94512-01000
9462111200
main94621-11200
9462111400
main94621-11400
9462211600
main94622-11600
9538104035
main95381-04035
33 parts on this diagram · 1 diagram in section
