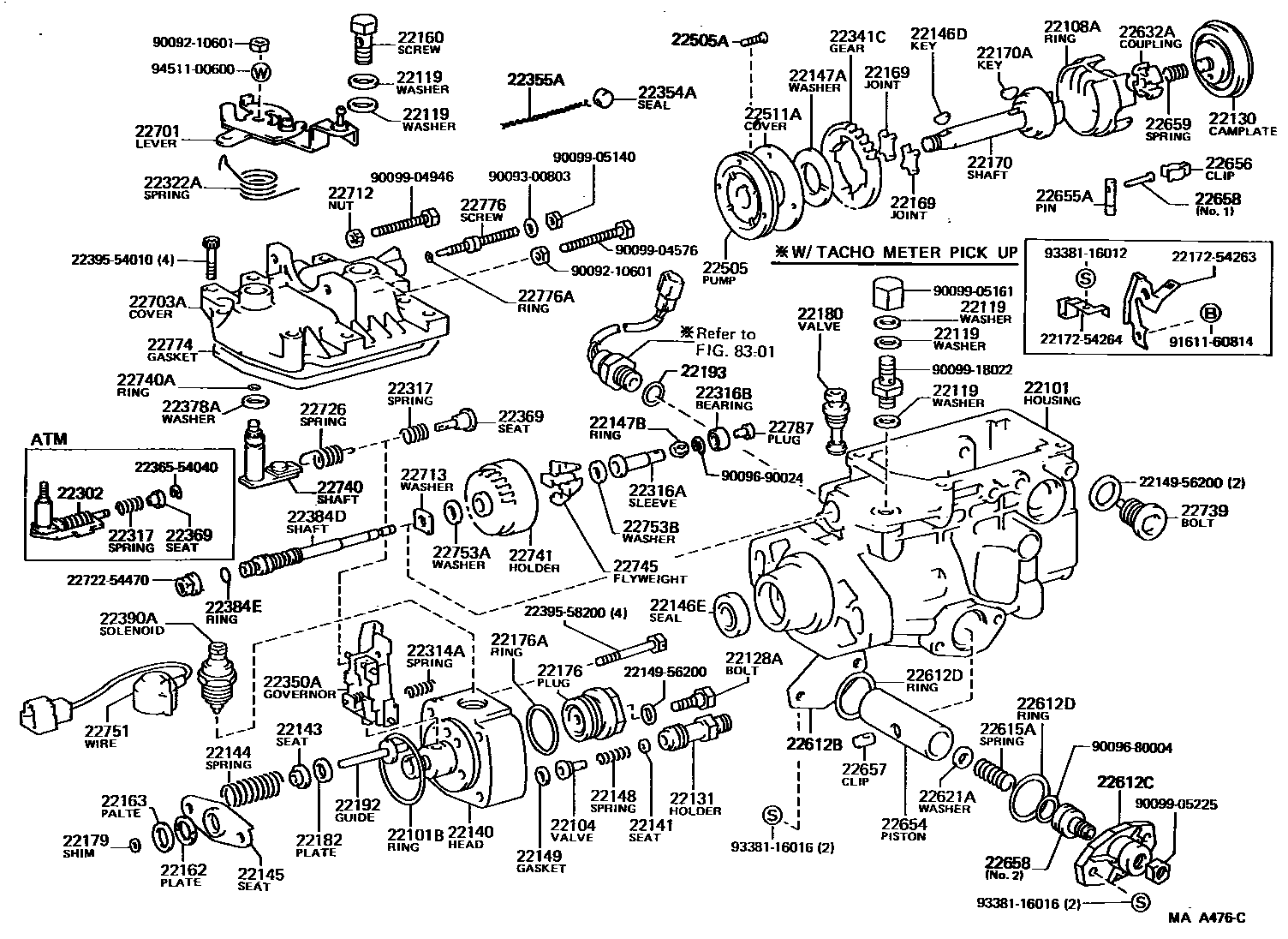

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1NORWAY, FINLAND SPEC

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-54440i2L..LH80..GEN..IV198708-198808

MALAYSIA SPEC

main22101-54770i2L..LH80..GEN199109-199505

main22101-5B320i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

IRELAND SPEC

main22101-64160i2L..LH80..4FC198708-199203

main22101-64230i2L..LH80..GEN198808-199109

main22101-64250i2L..LH80..5F..ARL198708-199203

main22101-64260i2L..LH80..EUR198808-199404

W(TACHO METER PIC UP)

main22101-64270i2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199404

IRELAND SPEC

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i2L..LH80198708-199505

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-54060×4i2L..LH80198708-198808

main22104-5B320×4i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

main22104-64010×4i2L..LH80198808-199005

main22104-6A290×4i2L..LH80199005-199404

22108ARING SUB-ASSY, ROLLER

main22108-54010i2L..LH80198708-198808

main22108-54180i2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199505

IRELAND SPEC

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i2L..LH80198708-199505

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i2L..LH80198708-199505

22130CAMPLATE SUB-ASSY, FACE

main22130-54010i2L..LH80198808-199505

main22130-58200i2L..LH80198708-198808

22131HOLDER, DELIVERY VALVE

main22131-54110×4i2L..LH80198708-198908

main22190-64740×4i2L..LH80..GEN..CBU198712-198808

HONG KONG SPEC

main22190-6A290×4i2L..LH80199005-199404

main22190-6A680×4i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-54730i2L..LH80198808-199505

main22140-64400i2L..LH80198708-198808

22141SEAT, DELIVERY VALVE SPRING

main22141-54010×4i2L..LH80198708-198908

22143SEAT, SPRING UPPER

main22143-54010×2i2L..LH80198708-199505

22144SPRING, PUMP PLUNGER

main22144-54180×2i2L..LH80..GEN198808-199505

main22144-54190×2i2L..LH80..4FC;2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199505

IRELAND SPEC

22145SEAT, SPRING, LOWER

main22145-54010i2L..LH80198708-199505

22146DKEY(FOR DRIVE GEAR)

main90099-13018i2L..LH80198708-199505

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i2L..LH80198708-199505

22147AWASHER, DRIVE SHAFT

main22161-54010i2L..LH80198708-199505

22147BRING, GOVERNOR SLEEVE

main22147-54290i2L..LH80198708-199505

22148SPRING, DELIVERY VALVE

main22148-54010×4i2L..LH80198708-199505

22149GASKET, DELIVERY VALVE

main22149-54010×4i2L..LH80198708-199005

main22149-56351×4i2L..LH80199005-199505

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010i2L..LH80198708-199505

22162PLATE, PLUNGER UPPER

main22162-54010i2L..LH80198708-199505

22163PLATE, PLUNGER LOWER

main22163-54010i2L..LH80198708-198910

22169JOINT, RUBBER

main22169-54180×2i2L..LH80198708-199505

22170SHAFT SUB-ASSY, DRIVE

main22170-54180i2L..LH80198708-198808

main22170-55130i2L..LH80198908-199505

main22170-6A510i2L..LH80198808-198908

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i2L..LH80198708-199505

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2L..LH80198708-199505

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main90099-14052i2L..LH80198708-199505

22179SHIM, PLUNGER ADJUSTING

main22179-54010i2L..LH80198708-199505

T=1.9

main22179-54011i2L..LH80198708-199505

T=2.0

main22179-54012i2L..LH80198708-199505

T=2.1

main22179-54013i2L..LH80198708-199505

T=2.2

main22179-54014i2L..LH80198708-199505

T=2.3

main22179-54015i2L..LH80198708-199505

T=2.4

main22179-54016i2L..LH80198708-199505

T=2.5

main22179-54017i2L..LH80198708-199505

T=2.6

main22179-54018i2L..LH80198708-199505

T=2.7

main22179-54019i2L..LH80198708-199505

T=2.8

main22179-54020i2L..LH80198708-199505

T=2.9

22180VALVE SUB-ASSY, REGULATOR

main22180-54010i2L..LH80198708-198808

main22180-55050i2L..LH80198808-199505

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010×2i2L..LH80198708-199505

T=0.5

main22183-54010×2i2L..LH80198708-199505

T=0.8

main22184-54010×2i2L..LH80198708-199505

T=1.0

main22185-54010×2i2L..LH80198708-199505

T=1.2

main22186-54010×2i2L..LH80198708-199505

T=1.5

main22187-54010×2i2L..LH80198708-199505

T=1.8

main22188-54010×2i2L..LH80198708-199505

T=2.0

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010×2i2L..LH80198708-199505

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-64750i2L..LH80198708-199505

22302SHAFT SUB-ASSY, SPEED CONTROL

main22302-54511i2L..LH80..4FC198708-198808

main22302-54820i2L..LH80..4FC198808-199203

22314ASPRING, LEVER SUPPORT

main22314-54010×2i2L..LH80198708-199505

22316ASLEEVE, GOVERNOR

main22316-54290i2L..LH80..GEN198808-199505

ID=0.80

main22316-54310i2L..LH80198708-198808

MARK 26

main22316-54630i2L..LH80198808-199404

ID=0.70

main22316-54730i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

ID=0.95,FINLAND SPEC; ID=0.95,NORWAY SPEC

main22316-54750i2L..LH80..GEN199404-199505

ID=0.60

main22316-5B060i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

ID=0.65,FINLAND SPEC; ID=0.65,NORWAY SPEC

main22316-5B320i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

ID=0.85,FINLAND SPEC; ID=0.85,NORWAY SPEC

main22316-5B321i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

ID=1.15; ID=1.15,IRELAND SPEC

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i2L..LH80198708-199505

22317SPRING, GOVERNOR DOMPER

main22317-54010i2L..LH80..5F198708-198808

K=0.2,L=6.5

main22317-54080i2L..LH80..4FC198708-198808

main22317-54470i2L..LH80..5F..(ARL,EUR)198808-198910

K=0.15,L=7.0

main22317-54730i2L..LH80..EUR198910-199505

K=0.15,L=7.3

main22317-54800i2L..LH80..GEN198808-199505

K=0.15,L=6.2

22322ASPRING, RETURN

main22322-54132i2L..LH80..GEN..IV198708-198808

MALAYSIA SPEC

main22322-54450i2L..LH80..ARL; 2L..LH80..EUR198708-198808

W(TACHO METER PIC UP)

main22322-54470i2L..LH80..EUR,GEN198708-198808

main22322-54730i2L..LH80198908-199505

22341CGEAR, GOVERNOR DRIVE

main22341-54010i2L..LH80198708-199505

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-54060i2L..LH80..5F198708-199505

main22350-54080i2L..LH80..4FC198808-199203

main22350-54450i2L..LH80..4FC198708-198808

22354ASEAL, ROD

main22354-77050×2i2L..LH80198708-198808

22355AWIRE, GOVERNOR HOUSING SEAL

main22355-78030×2i2L..LH80198708-198808

22369SEAT, GOVERNOR SPRING

main22369-54010i2L..LH80..5F198708-199505

main22369-54080i2L..LH80..4FC198708-198808

22378AWASHER, GOVERNOR THRUST

main22378-64010i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

22384DSHAFT, GOVERNOR

main22380-54020i2L..LH80..RHD198910-199404

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i2L..LH80198708-199505

22390ASOLENOID ASSY, FUEL CUT

main22390-54110i2L..LH80198708-198808

main22390-5B320i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i2L..LH80198708-199505

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723×2i2L..LH80198708-199505

22511ACOVER, FEED PUMP

main22511-54020i2L..LH80198708-198908

main22511-58650i2L..LH80198908-199505

22612BCOVER, TIMER

main22612-54010i2L..LH80198708-199109

main22612-56350i2L..LH80199109-199505

22612CCOVER, TIMER

main22612-17010i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

IRELAND SPEC

main22612-54450i2L..LH80..GEN199404-199505

22612DRING, O(FOR TIMER COVER)

main90099-14051×2i2L..LH80198708-199311

main90099-14105×2i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199311

FINLAND SPEC; NORWAY SPEC

22615ASPRING, TIMER OUTER

main22615-54030×2i2L..LH80..EUR,GEN198708-198808

CW=7.1

main22615-54180i2L..LH80..RHD198808-199505

K=3.00,L=37.3

main22615-54490i2L..LH80..GEN199404-199505

K=2.50,L=38.2

main22615-54730i2L..LH80198808-199404

K=2.70,L=39.2

main22615-54731i2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199404

K=2.30,L=39.4; K=2.30,L=39.4,IRELAND SPEC

main22615-5B320i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

K=0.115,L=37.8; K=0.115,L=37.8,IRELAND SPEC

main22615-5B321i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

K=0.095,L=39.2,FINLAND SPEC; K=0.095,L=39.2,NORWAY SPEC

main22615-5B323i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

K=0.105,L=38.4; K=0.105,L=38.4,IRELAND SPEC

22621AWASHER, TIMER ADJUSTING

main22621-54010i2L..LH80198708-198808

T=0.5

main22625-54277i2L..LH80198808-199404

T=1.0

22632ACOUPLING, INJECTION PUMP

main22632-54010i2L..LH80198708-199505

22654PISTON, TIMER

main22654-54010i2L..LH80198708-198808

main22654-54730i2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199404

IRELAND SPEC

main22654-54770i2L..LH80..RHD198808-199505

main22654-55030i2L..LH80..GEN..CBU198712-198808

HONG KONG SPEC

22655APIN, TIMER SLIDE

main22655-54010i2L..LH80198708-199505

22656CLIP, TIMER

main22656-54010i2L..LH80198708-199505

22657CLIP, TIMER

main22657-54010i2L..LH80198708-199505

22658STOPPER, TIMER

main22658-17010i2L..LH80..EUR; 2L..LH80..GEN..CBU199404-199505

IRELAND SPEC,NO.2; NO.2

main22658-54010i2L..LH80198708-199505

NO.1

main22658-54450i2L..LH80..GEN199404-199505

NO.2

22659SPRING, COUPLING

main22659-64150i2L..LH80198708-199505

22701LEVER SUB-ASSY, ADJUSTING

main22701-54451i2L..LH80198708-198808

main22701-54452i2L..LH80..EUR; 2L..LH80..GEN..CBU; 2L..LH80..RHD..5F199008-199505

IRELAND SPEC,MARK 131, TYPE 2; MARK 131, TYPE 2; TYPE 2

main22701-54453i2L..LH80..4FC198808-198908

TYPE 1

main22701-54454i2L..LH80..4FC198808-198908

TYPE 2

main22701-54740i2L..LH80..4FC198908-199203

TYPE 1

main22701-54741i2L..LH80..4FC198908-199203

TYPE 2

22703ACOVER SUB-ASSY, GOVERNOR

main22703-17080i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

main22703-54132i2L..LH80..EUR,GEN198908-199404

main22703-54450i2L..LH80..4FC198708-198808

main22703-54451i2L..LH80..4FC198808-199203

22712NUT, ROCK

main22775-77121i2L..LH80198808-199505

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i2L..LH80198708-199505

T=1.05

main22714-54010i2L..LH80198808-199505

T=1.25

main22715-54010i2L..LH80198808-199505

T=1.45

main22716-54010i2L..LH80198808-199505

T=1.65

main22717-54010i2L..LH80198808-199505

T=1.85

22726SPRING, SPEED CONTROL

main22726-54260i2L..LH80..EUR,GEN198708-198808

main22726-54530i2L..LH80..5F..ARL198708-198808

main22726-5B040i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

main22726-64010i2L..LH80..GEN199404-199505

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020×2i2L..LH80198708-199505

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22740-54320i2L..LH80..EUR,GEN198708-198808

main22740-54490i2L..LH80..5F..ARL198708-198808

main22740-55050i2L..LH80..EUR; 2L..LH80..GEN..CBU198808-199404

IRELAND SPEC

main22740-64820i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i2L..LH80199109-199505

main90099-14048i2L..LH80198708-199109

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i2L..LH80198708-199505

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010×4i2L..LH80198708-199505

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i2L..LH80..RHD198910-199505

main22751-5B320i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV199210-199404

FINLAND SPEC; NORWAY SPEC

main22751-6A220i2L..LH80..T3..EUR;2L..LH80..TW..CBU; 2L..LH80..TW..IV199210-199404

W(TACHO METER PIC UP)

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i2L..LH80198708-199505

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i2L..LH80199109-199505

main22753-54290i2L..LH80198708-199109

22774GASKET, GOVERNOR COVER

main22774-54010i2L..LH80198708-199109

main22774-54270i2L..LH80..EUR..CBU; 2L..LH80..T3..EUR..IV; 2L..LH80..TW..IV199210-199404

FINLAND SPEC OR W(TACHO METER); NORWAY SPEC OR W(TACHO METER)

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i2L..LH80198708-199505

22776ARING, O(FOR SMOKE SET SCREW)

main90099-14047i2L..LH80198708-199505

22787PLUG, GOVERNOR SLEEVE

main22787-54026i2L..LH80198708-198808

L=3.3

main22787-54027i2L..LH80198808-199505

L=3.4

main22787-54029i2L..LH80198808-199505

L=3.6

main22787-54031i2L..LH80198808-199505

L=3.8

main22787-54033i2L..LH80198808-199505

L=4.0

main22787-64640i2L..LH80198808-199505

L=4.1

main22787-64641i2L..LH80198808-199505

L=3.0

main22787-64643i2L..LH80198808-199505

L=3.2

main22787-64680i2L..LH80198808-199505

L=4.2

8301METER

→ Go to FIG 83-01

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217254263CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54263

2217254264CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54264

2236554040RING, E(FOR INJECTION PUMP LEVER)

main22365-54040

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009210601

main90092-10601

9009300803

main90093-00803

9009680004

main90096-80004

9009690024

main90096-90024

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9009905161

main90099-05161

9009905225

main90099-05225

9009918022

main90099-18022

9161160814

main91611-60814

9338116012

main93381-16012

9338116016

main93381-16016

9451100600

main94511-00600

101 parts on this diagram · 4 diagrams in section
