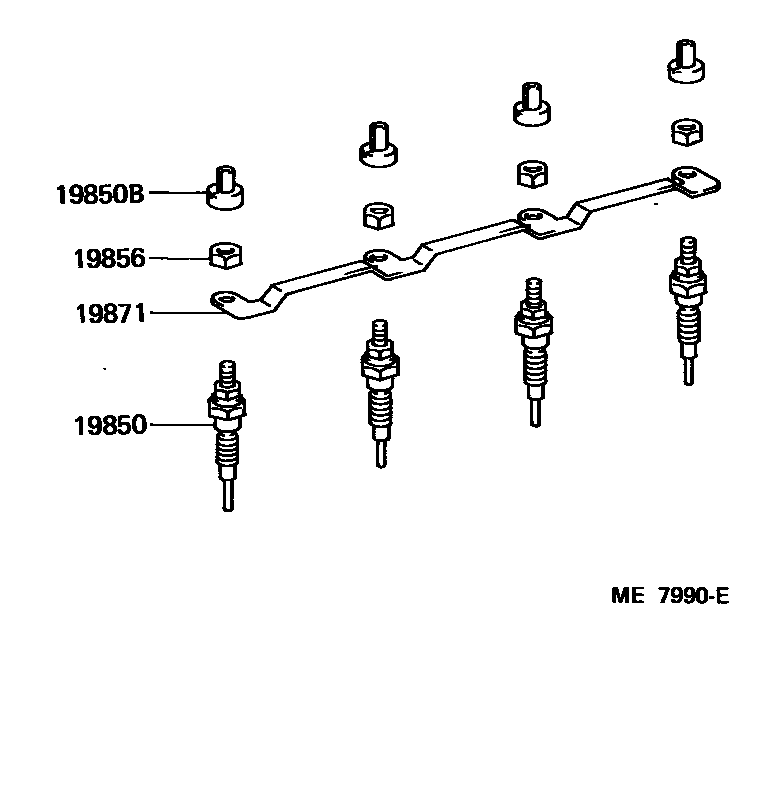

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0005 1

19850PLUG ASSY, GLOW

main19850-54031i2L..LH80..GEN198708-199109

*BV-GV=12V-11V

main19850-54050i2L..LH80..ARL,EUR198708-198808

*BV-GV=12V-7V,IRELAND SPEC

main19850-54050i2L..LH80..GEN..CBU198708-198808

*BV-GV=12V-7V

main19850-54090i2L..LH80..ARL,EUR198808-199505

*BV-GV=12V-11V

main19850-54090i2L..LH80..ARL,EUR198808-199109

*BV-GV=12V-11V,IRELAND SPEC

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2L..LH80198708-198808

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04001i2L..LH80198708-198808

main90179-04019i2L..LH80198808-199505

19871CONNECTOR, GLOW PLUG NO.1

main19871-54011i2L..LH80198708-198808

main19871-54020i2L..LH80198808-199505

4 parts on this diagram · 4 diagrams in section
