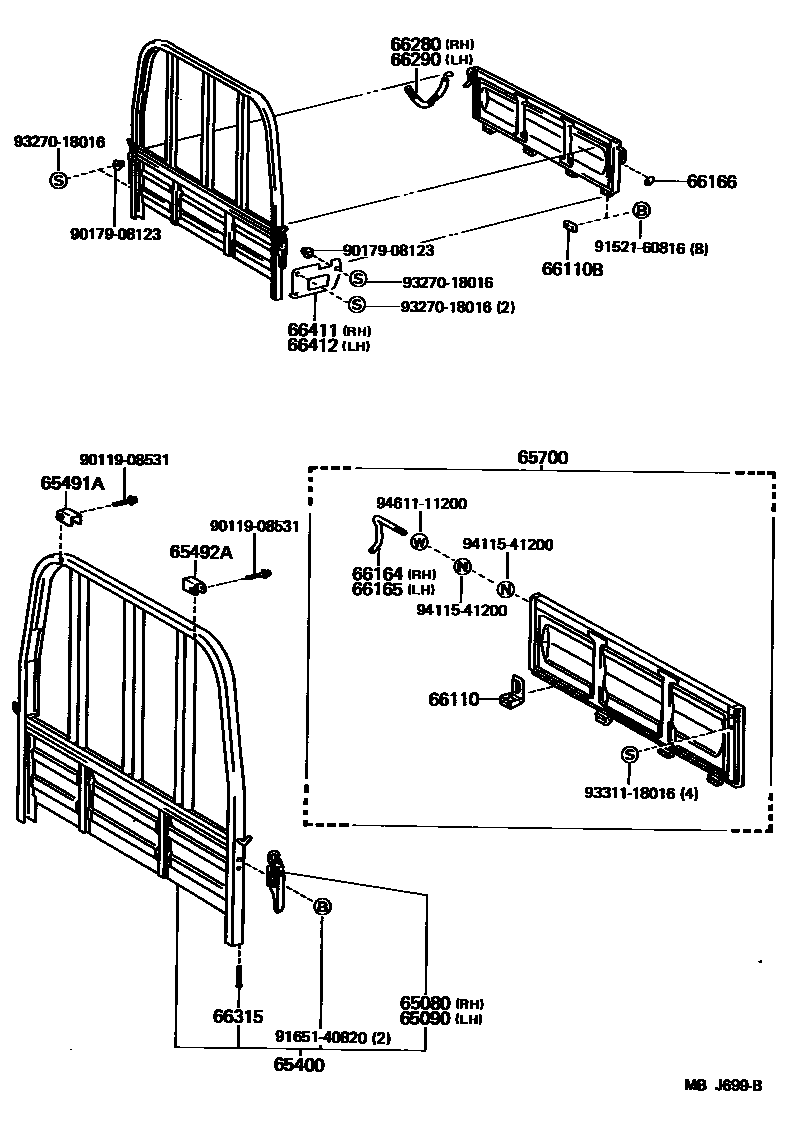

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080HANDLE ASSY, SIDE GATE LATCK, RH

main65480-92700iLH80,YH8#..T3..(EUR,GEN)198508-198708

65090HANDLE ASSY, SIDE GATE LATCH, LH

main65490-92701iLH80,YH8#..T3..(EUR,GEN)198508-198708

65400FRAME ASSY, REAR BODY GUARD

main65400-95A05iLH80,YH8#..TW198508-198708

main65400-95A06iLH80,YH8#..T3..(EUR,GEN)198508-198708

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-95A03iLH80,YH8#..T3..(EUR,GEN)198508-198708

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198708

65700GATE ASSY, REAR BODY TAIL

main65700-95031iLH80,YH8#..T3..(EUR,GEN)198606-198708

main65700-95415iLH80,YH8#..TW198508-198708

main65700-95A03iLH80,YH8#..T3..(EUR,GEN)198508-198606

66110HINGE ASSY, TAIL GATE

main66110-95014×2iLH80,YH8#..TW198508-198708

main66110-95020×4iLH80,YH8#..T3..(EUR,GEN)198508-198708

66110BRETAINER, TAIL GATE HINGE, LOWER

main66115-95013×4iLH80,YH8#..T3..(EUR,GEN)198508-198708

66164HANDLE, TAIL GATE LATCH, RH

main66264-95010iLH80,YH8#..T3..(EUR,GEN)198606-198708

main66264-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198606

66165HANDLE, TAIL GATE LATCH, LH

main66265-95011iLH80,YH8#..T3..(EUR,GEN)198606-198708

main66265-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198606

66166CAP, GATE LATCH HANDLE

main66165-95011×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

66280CHAIN ASSY, TAIL GATE, RH

main66280-95403iLH80,YH8#..TW198508-198708

main66280-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198708

66290CHAIN ASSY, TAIL GATE, LH

main66280-95403iLH80,YH8#..TW198508-198708

main66280-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198708

66315HOOK, ROPE

main66311-95010×3iLH80,YH8#..TW198508-198708

main66312-95A01×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

66411BRACKET, GUARD FRAME, RH

main66411-95022iLH80,YH8#..T3..(EUR,GEN)198508-198708

66412BRACKET, GUARD FRAME, LH

main66412-95022iLH80,YH8#..T3..(EUR,GEN)198508-198708

9011908531

main90119-08531

9017908123

main90179-08123

9152160816

main91521-60816

9165140820

main91651-40820

9327018016

main93270-18016

9331118016

main93311-18016

9411541200

main94115-41200

9461111200

main94611-11200

24 parts on this diagram · 2 diagrams in section
