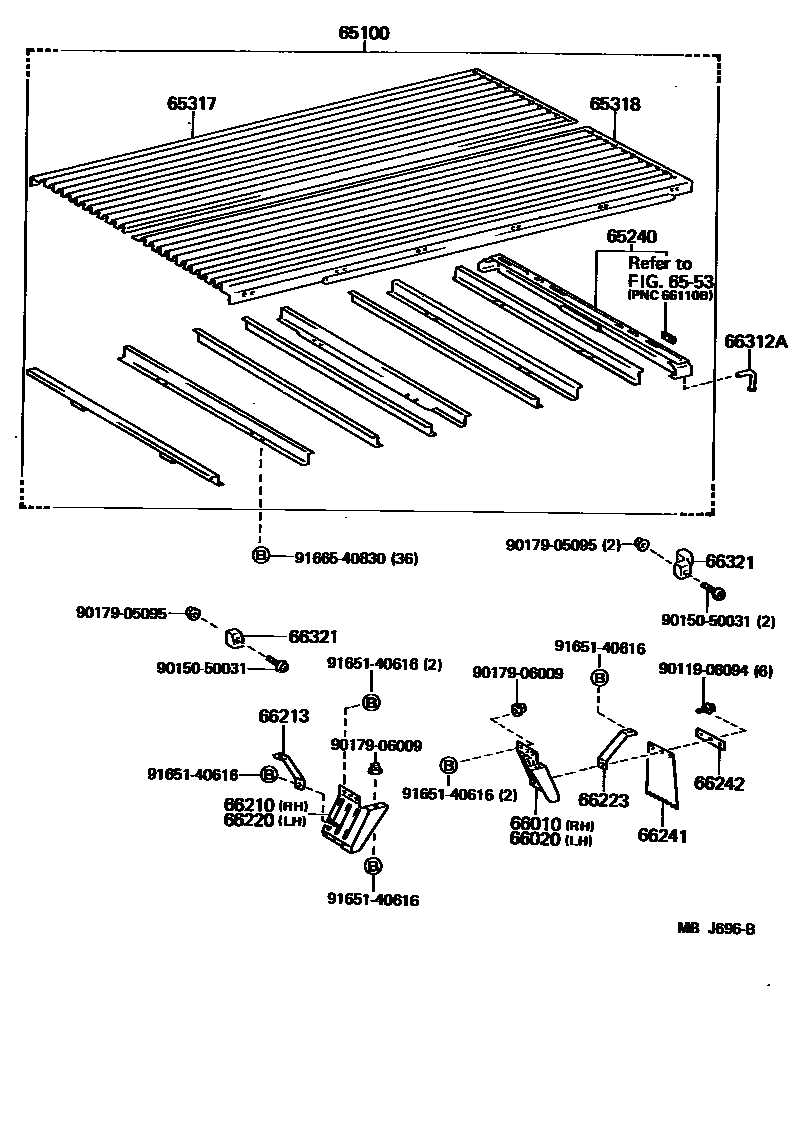

REAR BODY FLOOR & FENDER

0001 1 0002 1

65100FLOOR ASSY, REAR BODY

main65100-95A12iLH80,YH8#..TW198508-198708

main65100-95A14iLH80,YH8#..T3..(EUR,GEN)198508-198704

main65100-95A16iLH80,YH8#..T3..(EUR,GEN)198704-198708

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-95A04iLH80,YH8#..TW198508-198708

main65240-95A06iLH80,YH8#..T3..(EUR,GEN)198508-198708

65317PANEL, FLOOR SIDE, RH

main65317-95041iLH80,YH8#..T3..(EUR,GEN)198704-198708

main65317-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198704

65318PANEL, FLOOR SIDE, LH

main65318-95039iLH80,YH8#..T3..(EUR,GEN)198704-198708

main65318-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198704

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

66010FENDER ASSY, REAR BODY, REAR RH

main66210-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198708

66020FENDER ASSY, REAR BODY, REAR LH

main66220-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198708

66210FENDER ASSY, REAR BODY, FRONT RH

main66010-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198708

main66205-95A00iLH80,YH8#..TW198508-198708

66213STAY, REAR FENDER FRONT PLATE

main66235-95A00×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

66220FENDER ASSY, REAR BODY, FRONT LH

main66020-95A02iLH80,YH8#..T3..(EUR,GEN)198508-198708

main66205-95A00iLH80,YH8#..TW198508-198708

66223STAY, REAR FENDER REAR PLATE

main66236-95A00×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

66241MUDGUARD, REAR

main66241-95600×2iLH80,YH8#198508-198708

66242PLATE, REAR MUDGUARD SET RETAINER

main66242-95012×2iLH80,YH8#198508-198708

66312AHOOK, ROPE, NO.2

main66312-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198708

66321BUMPER, GATE RUBBER

main66321-95017×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

RR

main66321-95406×2iLH80,YH8#..TW198508-198708

main66331-95010×2iLH80,YH8#..T3..(EUR,GEN)198508-198708

FR

9011906094

main90119-06094

9015050031

main90150-50031

9017905095

main90179-05095

9017906009

main90179-06009

9165140616

main91651-40616

9166540830

main91665-40830

21 parts on this diagram · 2 diagrams in section
