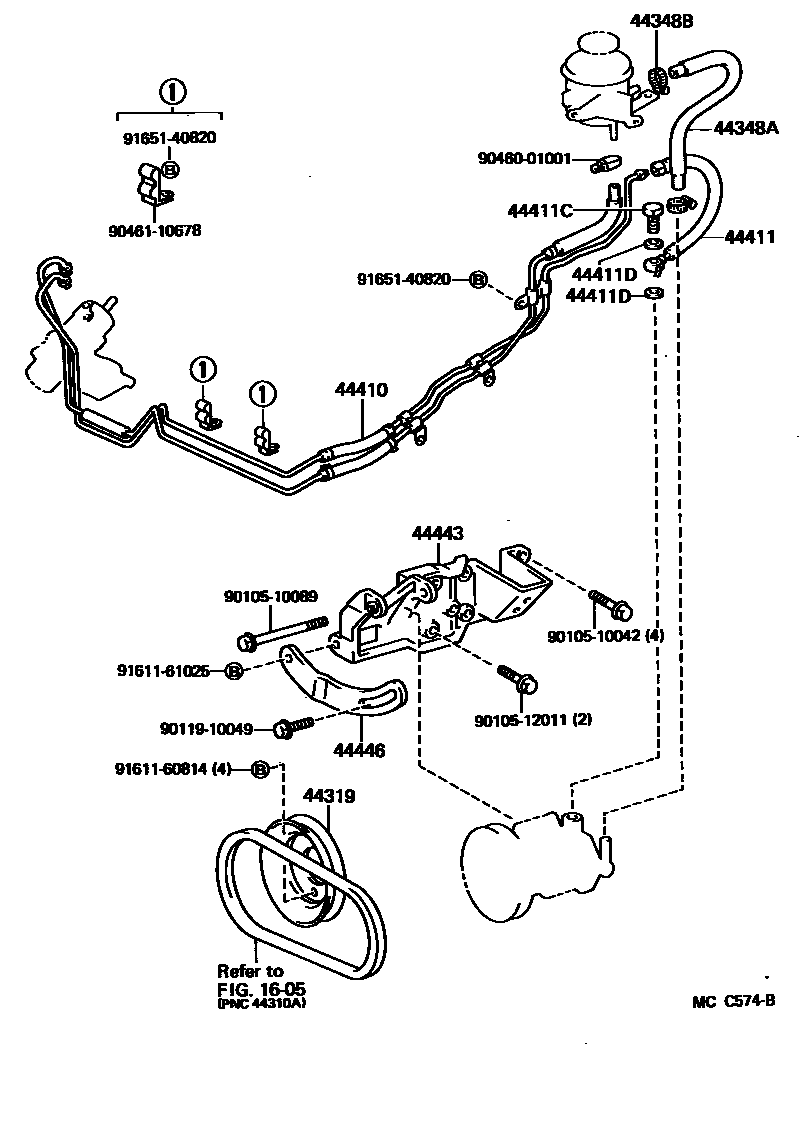

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-30030iLH80..ARL,EUR198609-198708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25020iLH80..ARL198609-198708

main44348-26030iLH80..LHD198508-198609

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×3iLH80198508-198609

44410TUBE ASSY, PRESSURE FEED

main44410-26060iLH80..RHD198508-198609

44411HOSE, PRESSURE FEED

main44411-26020iLH80..RHD198508-198609

main44411-26030iLH80..LHD198508-198609

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16005iLH80198508-198609

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242×2iLH80198508-198609

44443BRACKET, PUMP

main44443-30080iLH80198508-198609

44446STRUT, ADJUSTING

main44446-30070iLH80198508-198609

9010510042

main90105-10042

9010510089

main90105-10089

9010512011

main90105-12011

9011910049

main90119-10049

9046001001

main90460-01001

9046110678

main90461-10678

9161160814

main91611-60814

9161161025

main91611-61025

9165140820

main91651-40820

19 parts on this diagram · 2 diagrams in section
