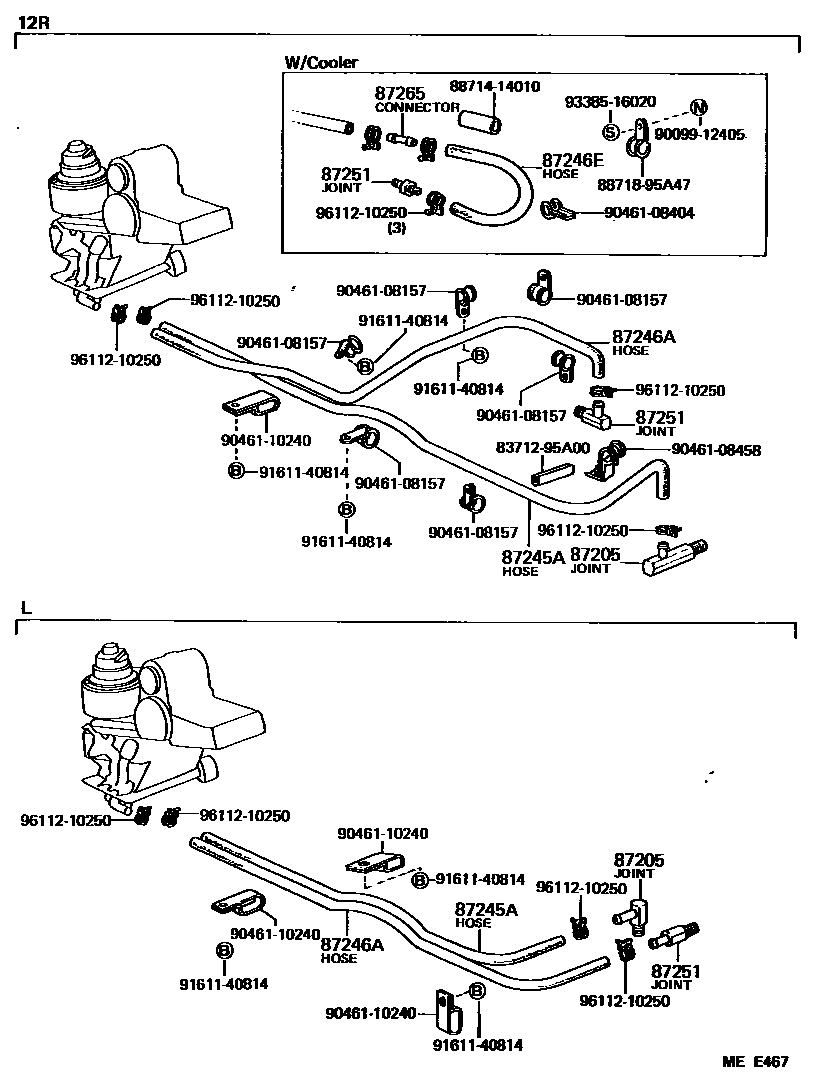

HEATING & AIR CONDITIONING - WATER PIPING

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30230iLH11..ARL,EUR,GEN198211-198507

main87251-95A02iRH11198211-198507

FR HEATER

87245AHOSE, HEATER WATER, INLET A

main87245-95A08iRH11198211-198507

main87245-95A17iLH11..ARL,EUR,GEN198211-198507

87246AHOSE, HEATER WATER, OUTLET A

main87245-95A07iRH11198211-198507

main87245-95A18iLH11..ARL,EUR,GEN198211-198507

87246EHOSE, HEATER WATER, OUTLET E

main99552-31000iLH11,RH11..ARL,GEN198211-198507

*H,L=1000,W/COOLER

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20070iLH11,RH11..ARL,GEN198211-198507

W/COOLER

main87251-30190iRH11198211-198507

FR HEATER

main87251-30200iLH11..ARL,EUR,GEN198211-198507

87265CONNECTOR, HEATER WATER HOSE

main87265-60030iRH11..ARL,GEN198211-198507

2WAY TYPE,W/COOLER

8371295A00

main83712-95A00

8871414010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14010

8871895A47PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A47

9009912405

main90099-12405

9046108157

main90461-08157

9046108404

main90461-08404

9046108458

main90461-08458

9046110240

main90461-10240

9161140814

main91611-40814

9338516020

main93385-16020

9611210250

main96112-10250

17 parts on this diagram · 1 diagram in section
