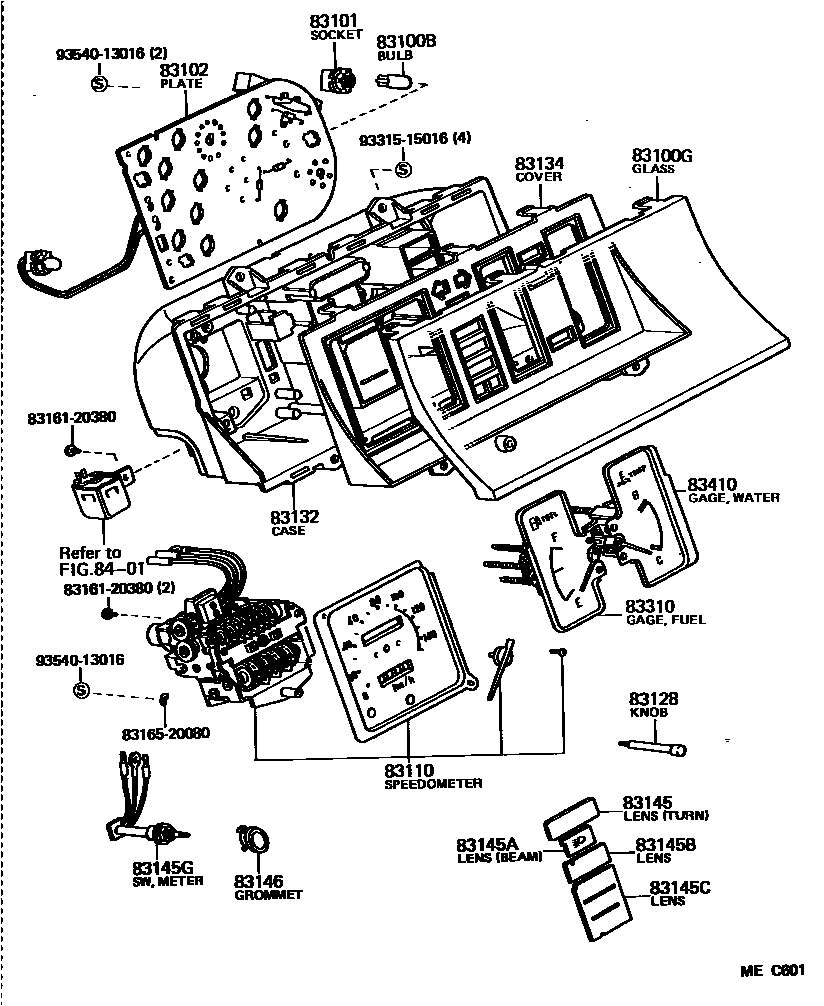

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iLH11..ARL,EUR,GEN198211-198507

12V 1.2W W/O SOCKET,12V 1.4W,TIMING BELT

main99132-12034×12iLH11,RH11198211-198507

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-95700iRH11198211-198507

main83138-95A05iLH11..ARL,EUR,GEN198211-198507

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×12iLH11,RH11198211-198507

12V 3.4W

main83101-22010iLH11..ARL,EUR,GEN198211-198507

12V 1.4W,TIMING BELT

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95A02iLH11..IDN198211-198507

main83247-95A05iLH11..ARL,EUR,GEN198211-198507

main83247-95A08iRH11198211-198507

83110SPEEDOMETER ASSY

main83110-95A08iRH11..EUR,GEN198305-198507

KM

main83110-95A10iRH11..EUR,GEN198211-198507

MILE

main83110-95A11iRH11..ARL198211-198305

*NSW

main83110-95A12iLH11..EUR,GEN198305-198507

KM

main83110-95A13iLH11..EUR,GEN198211-198507

MILE

main83110-95A15iRH11..ARL198305-198507

KM

main83110-95A16iLH11..ARL198305-198507

KM

main83110-95A17iRH11..ARL198305-198507

*NSW

main83241-95A15iLH11..IDN198211-198507

KM

83128KNOB, TRIP COUNTER

main83128-95010iLH11,RH11..ARL,EUR,GEN198211-198507

83132CASE, COMBINATION METER

main83132-95A00iLH11..IDN198211-198507

main83132-95A02iRH11198211-198507

main83132-95A04iRH11..ARL198211-198507

*NSW

main83132-95A09iLH11..ARL,EUR,GEN198211-198507

83134COVER, COMBINATION METER, NO.1

main83134-95A04iLH11,RH11..EUR,GEN198211-198507

main83134-95A05iLH11,RH11..ARL198211-198507

83145LENS, METER, NO.1

main83145-95013iLH11,RH11..ARL,EUR,GEN198211-198507

83145ALENS, METER, NO.2

main83145-95A14iLH11,RH11..ARL198211-198507

main83145-95A15iLH11,RH11..EUR,GEN198211-198507

83145BLENS, METER, NO.3

main83145-95017iLH11,RH11..EUR,GEN198211-198507

main83145-95A10iLH11..LHD..EUR; RH11..LHD..03S..EUR198211-198507

W/RED HAZARD INDICATOR

main83145-95A13iLH11,RH11..ARL198211-198507

83145CLENS, METER, NO.4

main83145-95018iRH11198211-198507

main83145-95A22iLH11..EUR,GEN198211-198507

main83145-95A29iLH11..ARL198211-198507

83145GSWITCH ASSY, COMBINATION METER

main83125-95010iLH11..ARL,EUR,GEN198211-198507

83146GROMMET, METER GLASS

main83145-89117iLH11..ARL,EUR,GEN198211-198507

83310GAGE ASSY, FUEL RECEIVER

main83243-95A00iLH11..IDN198211-198507

main83243-95A01iLH11,RH11..ARL198211-198507

main83243-95A02iLH11,RH11..EUR,GEN198211-198507

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95A04iRH11..LHD..GEN198211-198507

MIDDLE EAST COUNTRY SPEC

main83244-95A05iLH11..IDN198211-198507

main83244-95A06iLH11,RH11..ARL198211-198507

main83244-95A07iLH11,RH11..EUR,GEN198211-198507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520080MIRROR, COMBINATION METER, NO.2

main83165-20080

9331515016

main93315-15016

9354013016

main93540-13016

21 parts on this diagram · 3 diagrams in section
