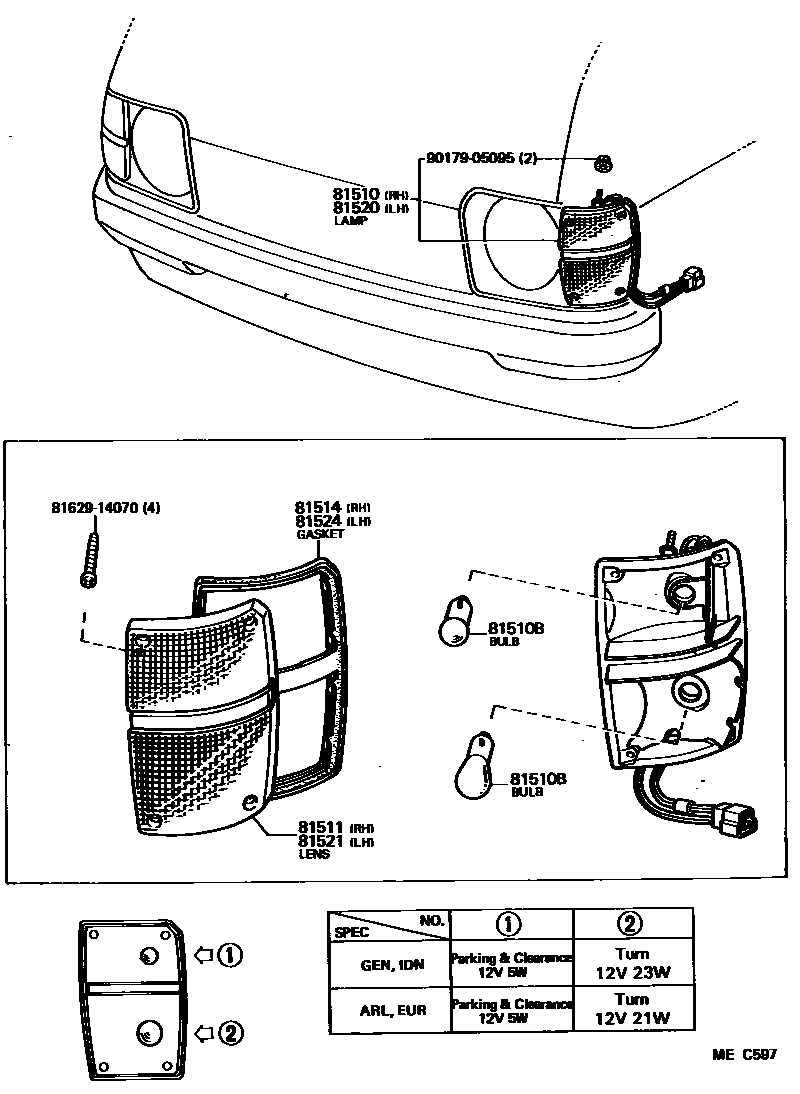

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29435iLH11,RH11..GEN,IDN198211-198507

main81510-29445iLH11,RH11..ARL,EUR198211-198507

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iLH11,RH11198211-198507

12V 5W,12V 5W

main99132-11210×2iLH11,RH11..ARL,EUR198211-198507

12V 21W,12V 21W

main99132-11230×2iLH11,RH11..GEN,IDN198211-198507

12V 23W,12V 23W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95A03iLH11,RH11198211-198507

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-95A00iLH11,RH11198211-198507

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29435iLH11,RH11..GEN,IDN198211-198507

main81520-29445iLH11,RH11..ARL,EUR198211-198507

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-95A03iLH11,RH11198211-198507

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81522-95A00iLH11,RH11198211-198507

8162914070

main81629-14070

9017905095

main90179-05095

9 parts on this diagram · 1 diagram in section
