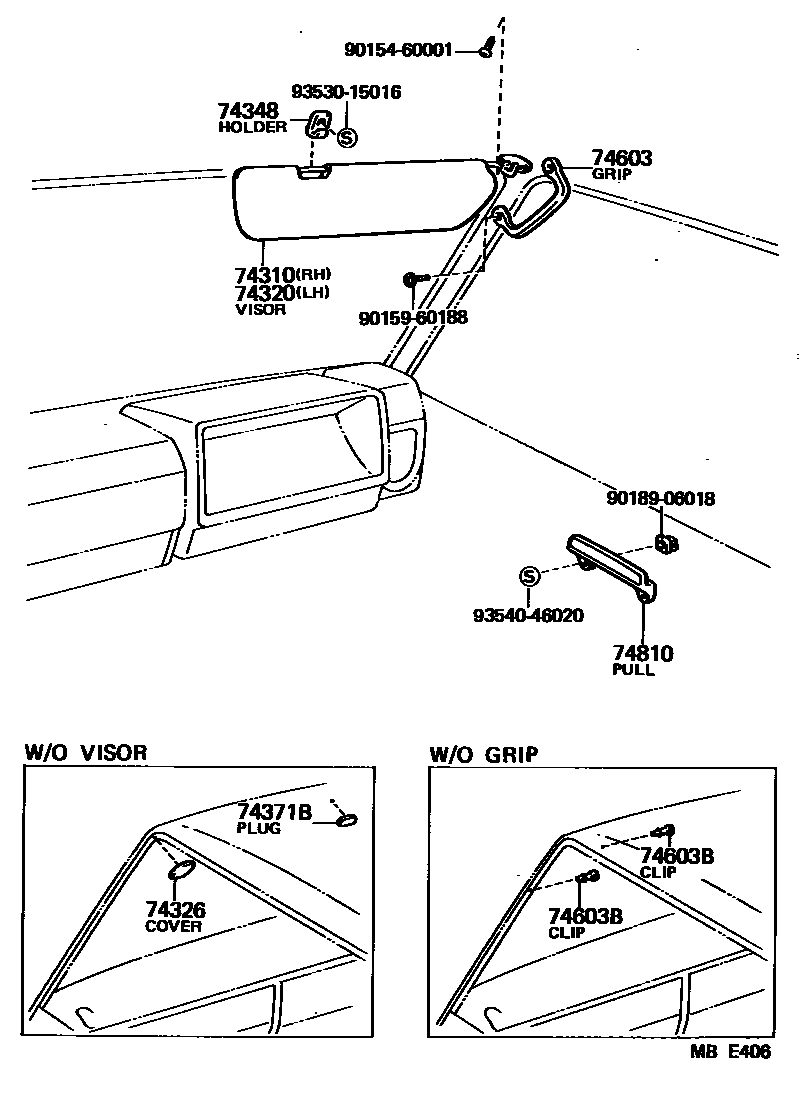

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-95A20iLH11,RH11..EUR,GEN,IDN198211-198507

main74310-95A22iLH11,RH11..ARL198211-198507

main74310-95A23iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC

74320VISOR ASSY, LH

main74320-95A19iLH11,RH11..EUR,GEN,IDN198211-198507

main74320-95A20iLH11,RH11..ARL198211-198507

main74320-95A21iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC

74326COVER, VISOR HOLE

main74325-95A02iLH11,RH11..LHD198211-198507

main74326-95A02iLH11,RH11..RHD..(EUR,GEN)198211-198507

74348HOLDER, VISOR

main74348-95A06×2iLH11,RH11198211-198507

main74348-95A07×2iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC

74371BPLUG, HOLE (FOR VISOR HANGER)

main74349-95A02iLH11,RH11..EUR,GEN198211-198507

74603GRIP SUB-ASSY, ASSIST, FRONT

main74620-95A06×2iLH11,RH11198211-198507

74603BCLIP (FOR ASSIST GRIP)

main90034-80031×2iLH11,RH11..LHD..EUR..IV; LH11,RH11..RHD198211-198507

WEST GERMANY SPEC

74810PULL ASSY, DOOR, INSIDE

main69151-95600×4iLH11,RH11198211-198403

main69285-95189×2iLH11..IDN198403-198507

main74810-10010-01×2iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC,BLACK

9015460001

main90154-60001

9015960188

main90159-60188

9018906018

main90189-06018

9353015016

main93530-15016

9354046020

main93540-46020

13 parts on this diagram · 1 diagram in section
