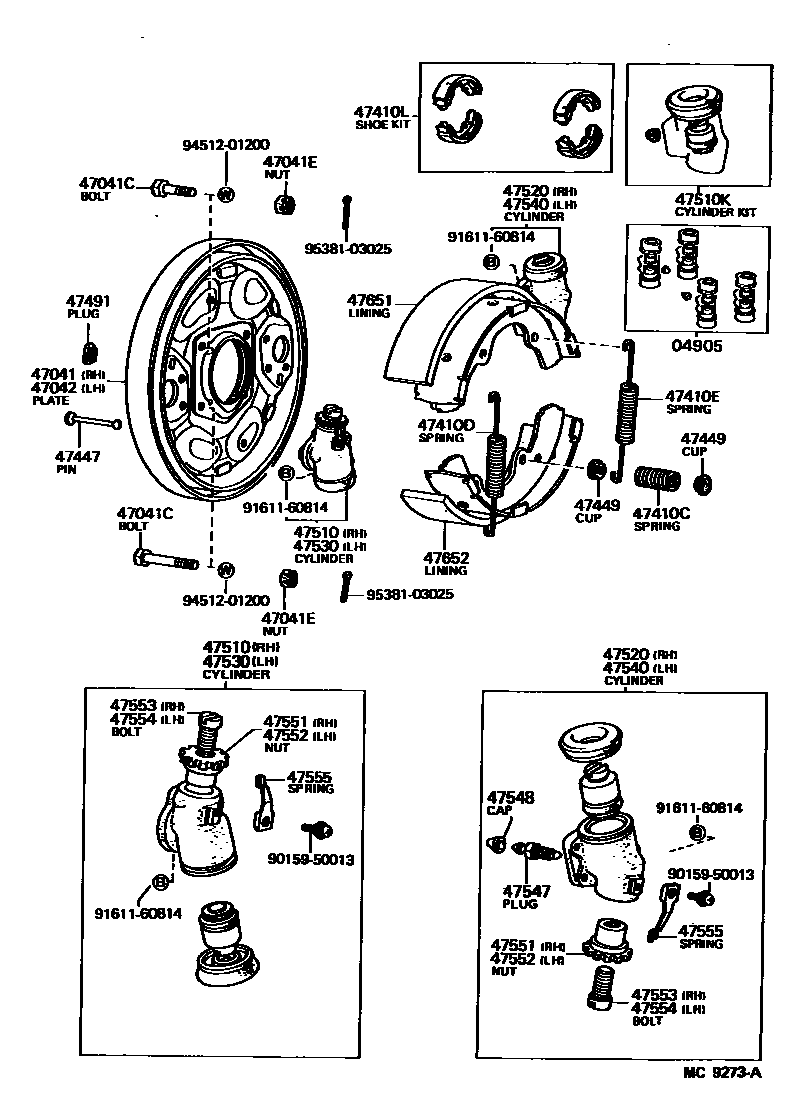

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
*12-1.25PX61-24
*12-1.25PX36-20
47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410LSHOE KIT, FRONT BRAKE
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491PLUG, HOLE(FOR FRONT BRAKE)
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510KCYLINDER KIT, FRONT WHEEL
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
LH SCREW
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
RH SCREW
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
LH SCREW
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
RH SCREW
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9015950013
main90159-50013
9161160814
main91611-60814
9451201200
main94512-01200
9538103025
main95381-03025
30 parts on this diagram · 1 diagram in section
