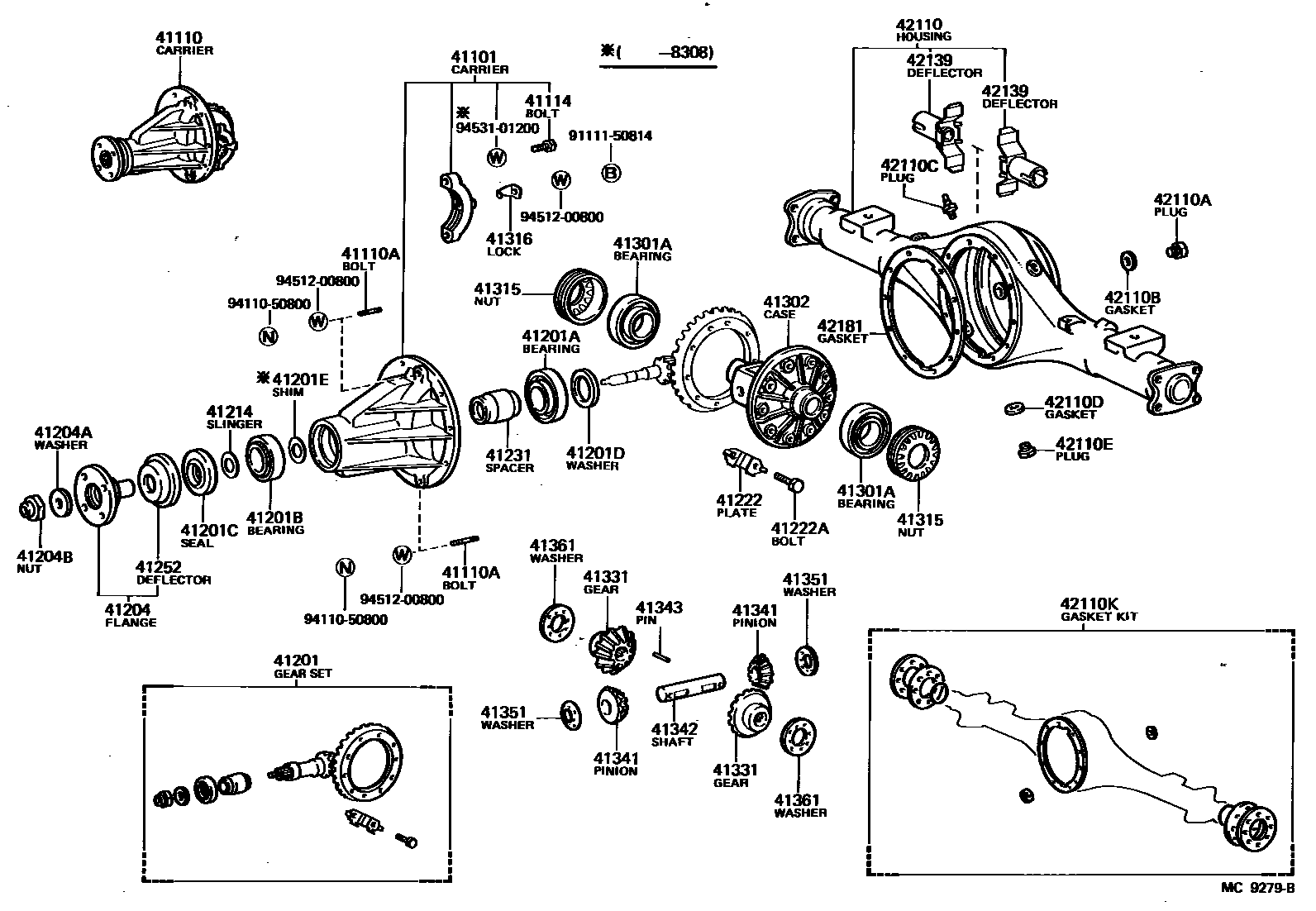

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
*AXC=G142,R=39:8; *AXC=G162,R=37:7
*AXC=G282,R=43:10
*AXC=G142,R=39:8; *AXC=G162,R=37:7
*AXC=G282,R=43:10
41110CARRIER ASSY, DIFFERENTIAL, REAR
*AXC=G282,R=43:10
*AXC=G145,R=39:8,W/LSD
*AXC=G142,R=39:8
*AXC=G162,R=37:7
*AXC=G162,R=37:7
*AXC=G282,R=43:10
*AXC=G142,R=39:8
*AXC=G285,R=43:10,W/LSD
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=36,L=36
L=44,L=44
L=34,S=14,L=34
S=14 & 14,L=42,L=42
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*AXC=G162,R=37:7
*AXC=G282,R=43:10
*AXC=G145,R=39:8,W/LSD
*AXC=G142,R=39:8
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70,T=1.69-1.71
OD=47,T=1.73,T=1.72-1.74
OD=47,T=1.76,T=1.75-1.77
OD=47,T=1.79,T=1.78-1.80
OD=47,T=1.82,T=1.81-1.83
OD=47,T=1.85,T=1.84-1.86
OD=47,T=1.88,T=1.87-1.89
OD=47,T=1.91,T=1.90-1.92
OD=47,T=1.94,T=1.93-1.95
OD=47,T=1.97,T=1.96-1.98
OD=47,T=2.00,T=1.99-201
OD=47,T=2.03,T=2.02-2.04
OD=47,T=2.06,T=2.05-2.07
OD=47,T=2.09,T=2.08-2.10
OD=47,T=2.12,T=2.11-2.13
OD=47,T=2.15,T=2.14-2.16
OD=47,T=2.18,T=2.17-2.19
OD=47,T=2.21,T=2.20-2.22
OD=47,T=2.24,MARK 01,T=2.23-2.25
OD=47,T=2.27,MARK 02,T=2.26-2.28
OD=47,T=2.30,MARK 03,T=2.29-2.31
OD=47,T=2.33,MARK 04,T=2.32-2.34
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=0.25,T=0.23-0.27
T=0.43-0.47
T=0.28-0.32
T=0.33-0.37
T=0.38-0.42
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W/LSD
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W/LSD
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
W/LSD
41341PINION, REAR DIFFERENTIAL
W/LSD
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
T=1.0
T=0.6
W/LSD
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6,T=1.57-1.63
T=1.7,T=1.67-1.73
T=1.8,T=1.77-1.83
T=0.15,T=0.15,W/LSD
T=0.20,T=0.20,W/LSD
T=0.25,T=0.25,W/LSD
T=0.30,T=0.30,W/LSD
T=0.35,T=0.35,W/LSD
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42110KGASKET KIT, DIFFERENTIAL CARRIER
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9111150814
main91111-50814
9411050800
main94110-50800
9451200800
main94512-00800
9453101200
main94531-01200
41 parts on this diagram · 2 diagrams in section
