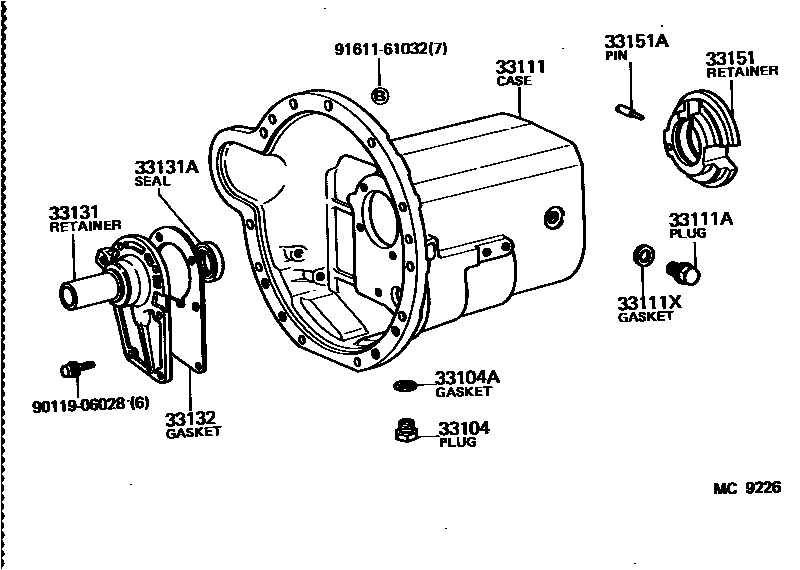

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLH11,RH11198211-198507

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iLH11,RH11198211-198408

main90430-18008iLH11,RH11198408-198507

33111CASE, MANUAL TRANSMISSION

main33101-26010iLH11..5H198401-198507

main33111-26031iRH11198211-198507

main33111-35031iLH11..4H198211-198507

main33111-35042iLH11..5H198211-198401

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLH11,RH11198211-198212

main90341-18006iLH11,RH11198212-198507

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iLH11,RH11198211-198408

main90430-18008iLH11,RH11198408-198507

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iLH11..4H198211-198507

main33131-26010iRH11198211-198507

main33131-26020iLH11..5H198401-198507

main33131-35022iLH11..5H198211-198401

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLH11..5H198211-198507

main90311-32106iLH11,RH11..4H198211-198507

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH11..5H198401-198507

main33132-30020iRH11198211-198507

main33132-30030iLH11..4H198211-198507

main33132-35022iLH11..5H198211-198401

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iLH11,RH11..4H198211-198507

main33151-28010iLH11..5H198401-198507

main33151-35011iLH11..5H198211-198401

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iLH11,RH11..4H198211-198507

9011906028

main90119-06028

9161161032

main91611-61032

12 parts on this diagram · 4 diagrams in section
