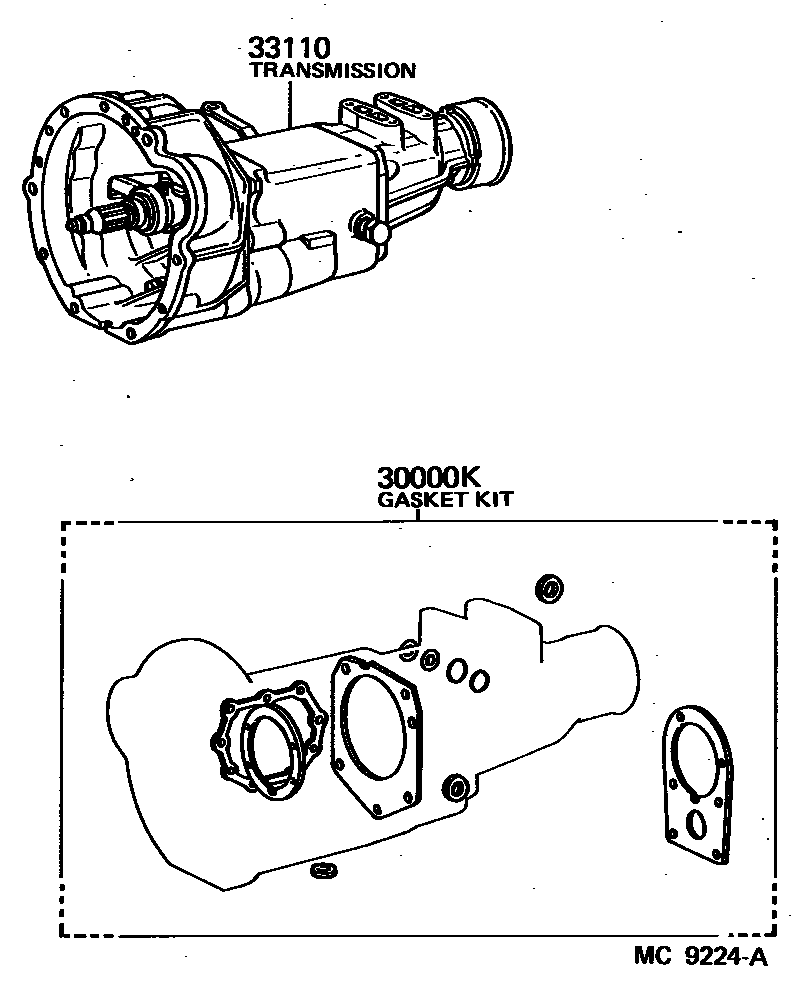

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26010iLH11,RH11..4H198211-198507

main04331-35072iLH11..5H198211-198401

main04331-35080iLH11..5H198401-198507

33110TRANSMISSION ASSY, MANUAL

main33030-26010iLH11..GEN198211-198401

main33030-26011iLH11..GEN198401-198507

main33030-26020iLH11..IDN198211-198401

main33030-26021iLH11..IDN198401-198507

main33030-26030iRH11..ARL; RH11..GEN198211-198507

*AXC=G162,SMG=4:16

main33030-26040iRH11..ARL198211-198507

*NSW & VICTORIA SPEC

main33030-26050iRH11..GEN198211-198507

*AXC=G142,SMG=5:19

main33030-26060iRH11..EUR198211-198507

main33110-26581iLH11..EUR198211-198401

main33110-26601iLH11..ARL198211-198401

main33120-26080iLH11..ARL198401-198507

main33120-26090iLH11..EUR198401-198507

2 parts on this diagram · 3 diagrams in section
