CARBURETOR ASSEMBLY

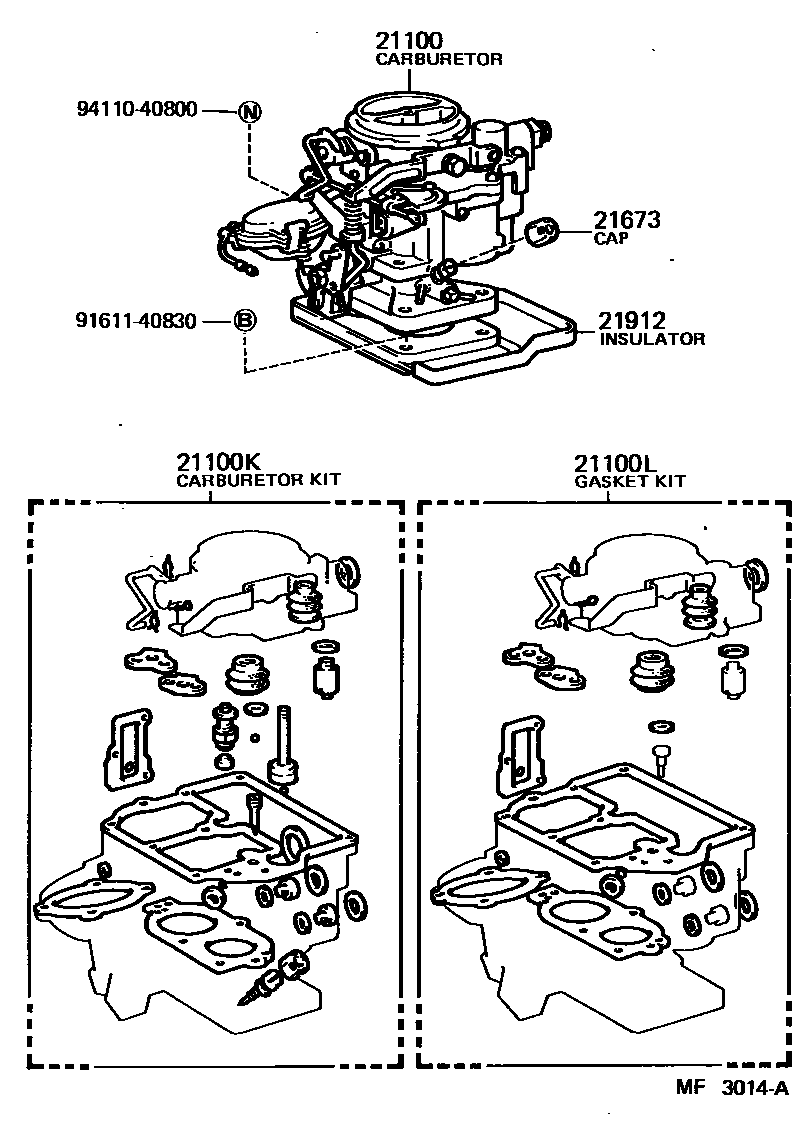

Parts diagram

21100CARBURETOR ASSY

main21100-31452i198211-198507

main21100-31471i198211-198507

main21100-31511i198211-198301

NEW SOUTH WALES & VICTORIA

main21100-31512i198301-198507

NEW SOUTH WALES & VICTORIA

main21100-31521i198211-198301

main21100-31522i198301-198507

21100KCARBURETOR KIT

main04211-31290i198211-198507

main04211-31310i198211-198301

NEW SOUTH WALES & VICTORIA

main04211-31320i198211-198301

main04211-31410i198211-198507

main04211-31430i198301-198507

NEW SOUTH WALES & VICTORIA

main04211-31440i198301-198507

21100LGASKET KIT, CARBURETOR

main04212-28012i198211-198507

main04212-31080i198211-198507

21673CAP, IDLE LIMIT

main21673-13280i198301-198507

main21673-38020i198211-198301

21912INSULATOR, CARBURETOR HEAT

main21912-31061i198211-198507

9161140830

main91611-40830

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
